BREP_SHELL Class Reference

#include <Brep.h>

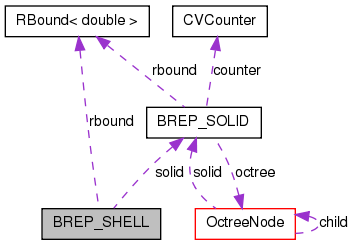

Collaboration diagram for BREP_SHELL:

[legend]

List of all members.

Public Member Functions
	BREP_SHELL (BREP_SOLID *pr_solid)
virtual	~BREP_SHELL ()
void	CloseData ()
void	ConnectFacet (BREP_FACET *facet)
void	DisconnectFacet (BREP_FACET *facet)
Public Attributes
BREP_SOLID *	solid
BREP_FACET_LIST	facets
RBound< double >	rbound

---

Detailed Description

Definition at line 115 of file Brep.h.

---

Constructor & Destructor Documentation

BREP_SHELL

(

BREP_SOLID *

pr_solid

)

Definition at line 145 of file Brep.cpp.

References BREP_SOLID::ConnectShell(), BREP_SHELL::rbound, RBound< T >::set(), and BREP_SHELL::solid.

{
    solid = pr_solid;
    rbound.set(HUGE_VALF, -HUGE_VALF, HUGE_VALF, -HUGE_VALF, HUGE_VALF, -HUGE_VALF);

    if (solid!=NULL) solid->ConnectShell(this);
}

Here is the call graph for this function:

~BREP_SHELL

(

)

[virtual]

Definition at line 155 of file Brep.cpp.

References BREP_SOLID::counter, BREP_SOLID::DisconnectShell(), BREP_SHELL::facets, CVCounter::GetUsableCounter(), Max, CVCounter::SetMax(), BREP_FACET::shell, BREP_SHELL::solid, and CVCounter::StepIt().

{
    CVCounter* counter = NULL;
    if (solid!=NULL) {
        if (solid->counter!=NULL) {
            counter = solid->counter->GetUsableCounter();
            if (counter!=NULL) counter->SetMax(100);
        }
        solid->DisconnectShell(this);
    }

    // Facets の破棄
    BREP_FACET*  pbfc;
    BREP_FACET_LIST::iterator ifacet = facets.begin();

    int cnt = 0;
    int itv = Max(1, (int)facets.size()/100);
    while (ifacet!=facets.end()) {
        pbfc = *ifacet;
        ifacet = facets.erase(ifacet);
        pbfc->shell = NULL;
        delete(pbfc);
        cnt++;

        // カウンタ処理
        if (counter!=NULL && cnt%itv==0) counter->StepIt();
    }
}

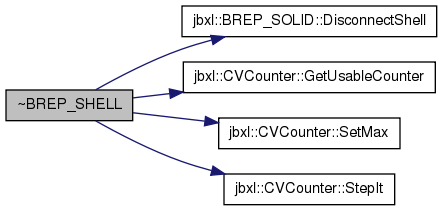

Here is the call graph for this function:

---

Member Function Documentation

void CloseData

(

void

)

Definition at line 186 of file Brep.cpp.

References BREP_SHELL::facets, RBound< T >::fusion(), and BREP_SHELL::rbound.

{
    BREP_FACET_LIST::iterator ifacet;
    for (ifacet=facets.begin(); ifacet!=facets.end(); ifacet++) (*ifacet)->CloseData();
    for (ifacet=facets.begin(); ifacet!=facets.end(); ifacet++) rbound.fusion((*ifacet)->rbound);
}

Here is the call graph for this function:

void ConnectFacet

(

BREP_FACET *

facet

)

Definition at line 196 of file Brep.cpp.

References BREP_SHELL::facets, and BREP_FACET::shell.

Referenced by BREP_FACET::BREP_FACET().

{
    if (facet!=NULL) {
        facet->shell = this;
        facets.push_back(facet);
    }
}

Here is the caller graph for this function:

void DisconnectFacet

(

BREP_FACET *

facet

)

Definition at line 207 of file Brep.cpp.

References BREP_SHELL::facets, and BREP_FACET::shell.

Referenced by BREP_FACET::~BREP_FACET().

{
    if (facet!=NULL) {
        BREP_FACET_LIST::iterator ifacet;
        ifacet = std::find(facets.begin(), facets.end(), facet);
        if (ifacet!=facets.end()) facets.erase(ifacet);

        facet->shell = NULL;
    }
}

Here is the caller graph for this function:

---

Member Data Documentation

BREP_FACET_LIST facets

Definition at line 119 of file Brep.h.

Referenced by BREP_SHELL::CloseData(), BREP_SHELL::ConnectFacet(), BREP_SHELL::DisconnectFacet(), jbxl::FastDeleteFacet(), and BREP_SHELL::~BREP_SHELL().

RBound<double> rbound

Definition at line 120 of file Brep.h.

Referenced by BREP_SHELL::BREP_SHELL(), and BREP_SHELL::CloseData().

BREP_SOLID* solid

Definition at line 118 of file Brep.h.

Referenced by BREP_SHELL::BREP_SHELL(), BREP_SOLID::ConnectShell(), jbxl::CreateContourByVector(), BREP_SOLID::DisconnectShell(), jbxl::PatchupContour(), and BREP_SHELL::~BREP_SHELL().

---

The documentation for this class was generated from the following files:

• BREPLib/Brep.h
• BREPLib/Brep.cpp
