MaterialParam Class Reference

#include <MaterialParam.h>

Collaboration diagram for MaterialParam:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 MaterialParam (void)
virtual ~MaterialParam (void)
void init (void)
void free (void)
void clear (void)
void dup (MaterialParam m)
bool isSetTexture (void)
bool isSetBumpMap (void)
bool isSetSpecMap (void)
bool isSetTextureParams (void)
bool isSetParams (void)
bool isSetGlow (void)
bool isSetBright (void)
bool isSetShininess (void)
bool isSetTransparent (void)
bool isTransparency (void)
void setTextureName (const char *name)
void setBumpMapName (const char *name)
void setSpecMapName (const char *name)
char * getTextureName (void)
char * getBumpMapName (void)
char * getSpecMapName (void)
void setAdditionalName (const char *name)
void addAdditionalName (const char *name)
char * getAdditionalName (void)
void setupFullName (const char *extname)
void setTransparent (double a)
void setShininess (double s)
void setGlow (double g)
void setBright (double b)
void setGlossiness (double g)
void setEnvironment (double e)
void setLight (double l)
double getTransparent (void)
double getShininess (void)
double getGlow (void)
double getBright (void)
double getGlossiness (void)
double getEnvironment (void)
double getLight (void)
void printParam (FILE *fp)
bool isSetColor (void)
bool isSetAlpha (void)
void setColor (double r, double g, double b, double a=1.0)
void setColor (double v, int c)
void setShiftU (double u)
void setShiftV (double v)
void setScaleU (double u)
void setScaleV (double v)
void setRotate (double r)
void setFlipU (bool h)
void setFlipV (bool h)
void setShift (double u, double v)
void setScale (double u, double v)
void setAlphaChannel (bool h)
void setAlphaMode (int m)
void setAlphaCutoff (double m)
double getColor (int c)
double getShiftU (void)
double getShiftV (void)
double getScaleU (void)
double getScaleV (void)
double getRotate (void)
bool getAlphaChannel (void)
int getAlphaMode (void)
double getAlphaCutoff (void)
void execTrans (UVMap< double > *uv, int n)
 Rotate -> Scale -> Shift.
void execShift (UVMap< double > *uv, int n)
void execScale (UVMap< double > *uv, int n)
void execRotate (UVMap< double > *uv, int n)
void execInvTrans (UVMap< double > *uv, int n)
 Shift -> Scale -> Rotate.
void execInvShift (UVMap< double > *uv, int n)
void execInvScale (UVMap< double > *uv, int n)
void execInvRotate (UVMap< double > *uv, int n)
void execFlipU (UVMap< double > *uv, int n)
void execFlipV (UVMap< double > *uv, int n)
char * getBase64Params (char obj='\0')

Public Attributes

bool enable
int mapping
 マッピング方法
int mflags
 メディアフラグ
int others
 その他のフラグ
TextureParam texture
 テクスチャ
TextureParam bumpmap
 Bumpmap テクスチャ.
TextureParam specmap
 Specular マップ テクスチャ.

Private Attributes

Buffer addname
 テクスチャ追加名．
double transparent
 テクスチャのアルファチャンネルの係数．
double shininess
 輝き
double glow
 発光:
double bright
 明るさ
double glossiness
 光沢
double environment
 環境光
double light
 周りを照らすライト

Detailed Description

Definition at line 153 of file MaterialParam.h.

Constructor & Destructor Documentation

MaterialParam ( void   )  [inline]

Definition at line 178 of file MaterialParam.h.

References MaterialParam::init().

00178 { init();}

Here is the call graph for this function:

virtual ~MaterialParam ( void   )  [inline, virtual]

Definition at line 179 of file MaterialParam.h.

00179 {}

Member Function Documentation

void addAdditionalName ( const char *  name  )  [inline]

Definition at line 211 of file MaterialParam.h.

References MaterialParam::addname, and cat_s2Buffer.

00211 { if(name!=NULL) cat_s2Buffer (name, &addname);}

void clear ( void   )  [inline]

Definition at line 184 of file MaterialParam.h.

References MaterialParam::free(), and MaterialParam::init().

Referenced by MeshObjectNode::delMaterialParam().

00184 { free(); init();}

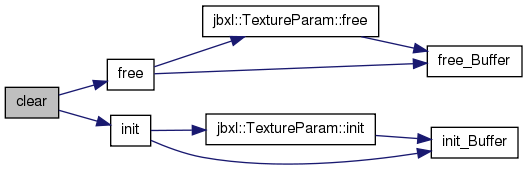

Here is the call graph for this function:

Here is the caller graph for this function:

void dup ( MaterialParam  m  )

Definition at line 256 of file MaterialParam.cpp.

References MaterialParam::addname, MaterialParam::bumpmap, TextureParam::dup(), dup_Buffer(), MaterialParam::specmap, and MaterialParam::texture.

Referenced by jbxl::newMaterialParam(), and MeshObjectNode::setMaterialParam().

00257 {
00258     *this = m;
00259
00260     texture.dup(m.texture);
00261     bumpmap.dup(m.bumpmap);
00262     specmap.dup(m.specmap);
00263
00264     addname = dup_Buffer(m.addname);
00265 }

Here is the call graph for this function:

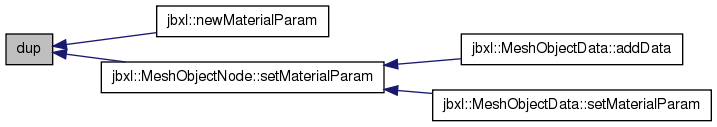

Here is the caller graph for this function:

void execFlipU ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 275 of file MaterialParam.h.

References TextureParam::execFlipU(), and MaterialParam::texture.

00275 { texture.execFlipU(uv, n);}

Here is the call graph for this function:

void execFlipV ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 276 of file MaterialParam.h.

References TextureParam::execFlipV(), and MaterialParam::texture.

00276 { texture.execFlipV(uv, n);}

Here is the call graph for this function:

void execInvRotate ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 273 of file MaterialParam.h.

References TextureParam::execInvRotate(), and MaterialParam::texture.

00273 { texture.execInvRotate(uv, n);}

Here is the call graph for this function:

void execInvScale ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 272 of file MaterialParam.h.

References TextureParam::execInvScale(), and MaterialParam::texture.

00272 { texture.execInvScale (uv, n);}

Here is the call graph for this function:

void execInvShift ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 271 of file MaterialParam.h.

References TextureParam::execInvShift(), and MaterialParam::texture.

00271 { texture.execInvShift (uv, n);}

Here is the call graph for this function:

void execInvTrans ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 270 of file MaterialParam.h.

References TextureParam::execInvTrans(), and MaterialParam::texture.

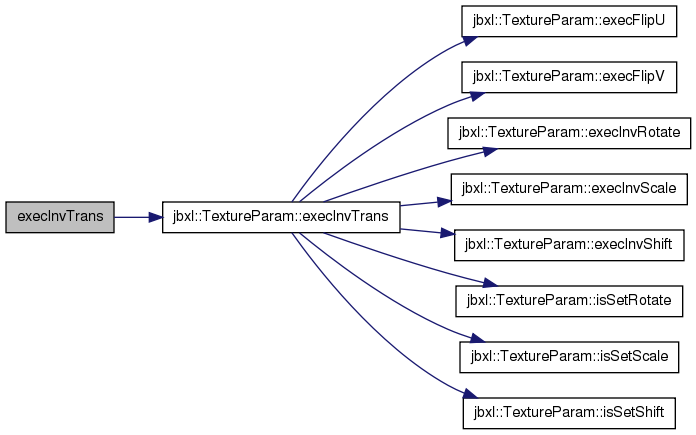

Here is the call graph for this function:

void execRotate ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 268 of file MaterialParam.h.

References TextureParam::execRotate(), and MaterialParam::texture.

00268 { texture.execRotate(uv, n);}

Here is the call graph for this function:

void execScale ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 267 of file MaterialParam.h.

References TextureParam::execScale(), and MaterialParam::texture.

00267 { texture.execScale (uv, n);}

Here is the call graph for this function:

void execShift ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 266 of file MaterialParam.h.

References TextureParam::execShift(), and MaterialParam::texture.

00266 { texture.execShift (uv, n);}

Here is the call graph for this function:

void execTrans ( UVMap< double > *  uv,
int  n
) [inline]

Definition at line 265 of file MaterialParam.h.

References TextureParam::execTrans(), and MaterialParam::texture.

Referenced by MeshObjectNode::execAffineTrans().

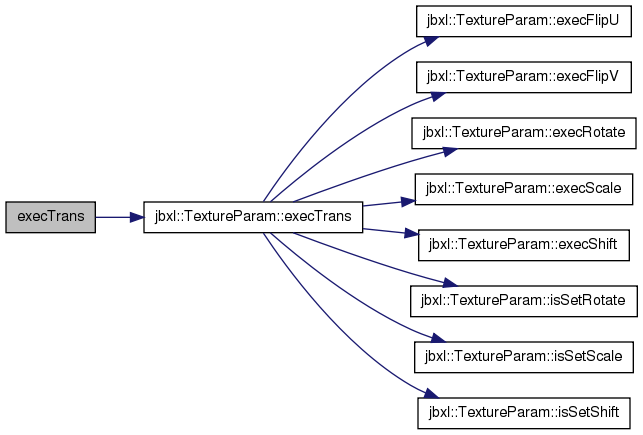

Here is the call graph for this function:

Here is the caller graph for this function:

void free ( void   )

Definition at line 243 of file MaterialParam.cpp.

References MaterialParam::addname, MaterialParam::bumpmap, TextureParam::free(), free_Buffer(), MaterialParam::specmap, and MaterialParam::texture.

Referenced by MaterialParam::clear(), and MeshObjectNode::setMaterialParam().

00244 {
00245     texture.free();
00246     bumpmap.free();
00247     specmap.free();
00248
00249     free_Buffer(&addname);
00250
00251     return;
00252 }

Here is the call graph for this function:

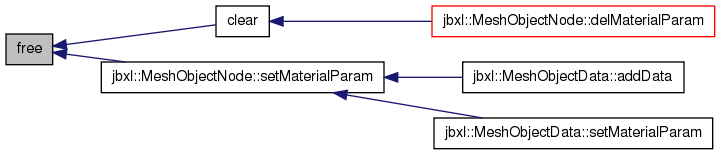

Here is the caller graph for this function:

char* getAdditionalName ( void   )  [inline]

Definition at line 212 of file MaterialParam.h.

References MaterialParam::addname, and Buffer::buf.

Referenced by MeshObjectData::addData().

00212 { return (char*)addname.buf;}   // 禁 free

Here is the caller graph for this function:

bool getAlphaChannel ( void   )  [inline]

Definition at line 261 of file MaterialParam.h.

References TextureParam::getAlphaChannel(), and MaterialParam::texture.

00261 { return texture.getAlphaChannel();}

Here is the call graph for this function:

double getAlphaCutoff ( void   )  [inline]

Definition at line 263 of file MaterialParam.h.

References TextureParam::getAlphaCutoff(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00263 { return texture.getAlphaCutoff();}

Here is the call graph for this function:

Here is the caller graph for this function:

int getAlphaMode ( void   )  [inline]

Definition at line 262 of file MaterialParam.h.

References TextureParam::getAlphaMode(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00262 { return texture.getAlphaMode();}

Here is the call graph for this function:

Here is the caller graph for this function:

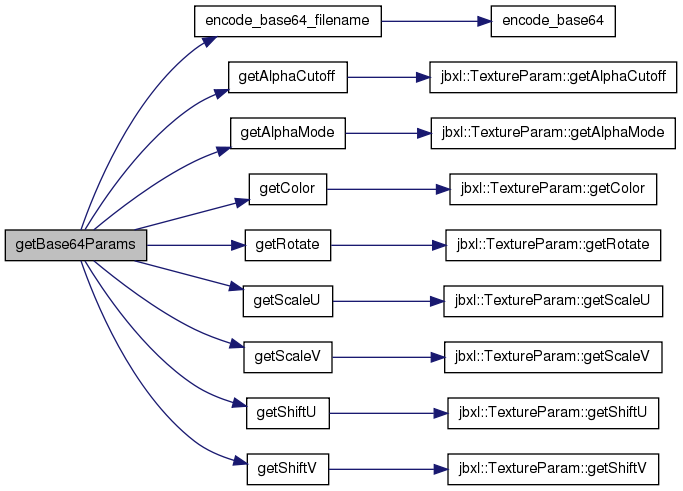

char * getBase64Params ( char  obj = '\0'  )

マテリアルの各パラメータを Base64で文字列化する．ただし '/' はファイル名として使用できないので，'$' に変換される．
戻りポインタは free する必要がある．

Parameters:
obj オブジェクトの種類を示す任意の一文字
Returns:
マテリアルの各パラメータをBase64で文字列化したデータへのポインタ．33Byte (32Byte+0x00). 要 free

Definition at line 344 of file MaterialParam.cpp.

References MaterialParam::bright, encode_base64_filename(), MaterialParam::getAlphaCutoff(), MaterialParam::getAlphaMode(), MaterialParam::getColor(), MaterialParam::getRotate(), MaterialParam::getScaleU(), MaterialParam::getScaleV(), MaterialParam::getShiftU(), MaterialParam::getShiftV(), MaterialParam::glow, MaterialParam::light, MATERIAL_ALPHA_BLENDING, MATERIAL_ALPHA_MASKING, MATERIAL_ATTR_ALPHACUTOFF, MATERIAL_ATTR_BRIGHT, MATERIAL_ATTR_COLOR_BLUE, MATERIAL_ATTR_COLOR_GREEN, MATERIAL_ATTR_COLOR_RED, MATERIAL_ATTR_GLOW, MATERIAL_ATTR_LEN, MATERIAL_ATTR_LIGHT, MATERIAL_ATTR_OBJECT, MATERIAL_ATTR_ROTATE, MATERIAL_ATTR_SCALE_U, MATERIAL_ATTR_SCALE_V, MATERIAL_ATTR_SHIFT_U, MATERIAL_ATTR_SHIFT_V, MATERIAL_ATTR_SHININESS, MATERIAL_ATTR_TRANSPARENT, MaterialParam::shininess, and MaterialParam::transparent.

Referenced by jbxl::isSameMaterial().

00345 {
00346     uByte attr[MATERIAL_ATTR_LEN];
00347
00348     double red    = getColor(0);
00349     double green  = getColor(1);
00350     double blue   = getColor(2);
00351     double alpha  = getColor(3);
00352     double cutoff = getAlphaCutoff();
00353     int   almode = getAlphaMode();
00354     //
00355     double transp = transparent;
00356
00357     short int rotate = (short int)((int)(getRotate()*2000.)%32768); // 2Byte化
00358     short int shiftu = (short int)((int)(getShiftU()*2000.)%32768);
00359     short int shiftv = (short int)((int)(getShiftV()*2000.)%32768);
00360     short int scaleu = (short int)((int)(getScaleU()*100. )%32768);
00361     short int scalev = (short int)((int)(getScaleV()*100. )%32768);
00362
00363     if (alpha<0.99) {
00364         almode = MATERIAL_ALPHA_BLENDING;   // Blending Mode
00365         cutoff = 0.0;
00366         transp = alpha;
00367     }
00368     //
00369     if (cutoff==0.0 && almode==MATERIAL_ALPHA_MASKING) transp = 1.0;    // cutoff==0.0 のときは Blending Modeとするため
00370     if (cutoff>0.9) cutoff = 0.9;         // for Unity3D
00371
00372     memset(attr, 0, MATERIAL_ATTR_LEN);
00373     attr[MATERIAL_ATTR_COLOR_RED]   = (uByte)((1.0-red)*255);
00374     attr[MATERIAL_ATTR_COLOR_GREEN] = (uByte)((1.0-green)*255);
00375     attr[MATERIAL_ATTR_COLOR_BLUE]  = (uByte)((1.0-blue)*255);
00376     attr[MATERIAL_ATTR_TRANSPARENT] = (uByte)((1.0-transp)*255);
00377     attr[MATERIAL_ATTR_ALPHACUTOFF] = (uByte)(cutoff*255);
00378     attr[MATERIAL_ATTR_SHININESS]   = (uByte)(shininess*255);
00379     attr[MATERIAL_ATTR_GLOW]        = (uByte)(glow*255);
00380     attr[MATERIAL_ATTR_BRIGHT]      = (uByte)(bright*255);
00381     attr[MATERIAL_ATTR_LIGHT]       = (uByte)(light*255);
00382     attr[MATERIAL_ATTR_OBJECT]      = (uByte)obj;
00383     //
00384     memcpy(attr+MATERIAL_ATTR_SHIFT_U, &shiftu, 2);
00385     memcpy(attr+MATERIAL_ATTR_SHIFT_V, &shiftv, 2);
00386     memcpy(attr+MATERIAL_ATTR_SCALE_U, &scaleu, 2);
00387     memcpy(attr+MATERIAL_ATTR_SCALE_V, &scalev, 2);
00388     memcpy(attr+MATERIAL_ATTR_ROTATE,  &rotate, 2);
00389
00390     char* params = (char*)encode_base64_filename(attr, MATERIAL_ATTR_LEN);  // 要 free   / -> $
00391
00392     return params;
00393 }

Here is the call graph for this function:

Here is the caller graph for this function:

double getBright ( void   )  [inline]

Definition at line 226 of file MaterialParam.h.

References MaterialParam::bright.

Referenced by ColladaXML::addEffect().

00226 { return bright;}

Here is the caller graph for this function:

char* getBumpMapName ( void   )  [inline]

Definition at line 207 of file MaterialParam.h.

References MaterialParam::bumpmap, and TextureParam::getName().

Referenced by ColladaXML::addPolylists().

00207 { return bumpmap.getName();}       // 禁 free

Here is the call graph for this function:

Here is the caller graph for this function:

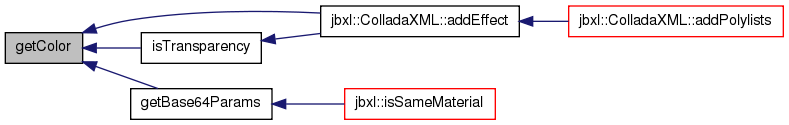

double getColor ( int  c  )  [inline]

Definition at line 254 of file MaterialParam.h.

References TextureParam::getColor(), and MaterialParam::texture.

Referenced by ColladaXML::addEffect(), MaterialParam::getBase64Params(), and MaterialParam::isTransparency().

00254 { return texture.getColor(c);}

Here is the call graph for this function:

Here is the caller graph for this function:

double getEnvironment ( void   )  [inline]

Definition at line 228 of file MaterialParam.h.

References MaterialParam::environment.

00228 { return environment;}

double getGlossiness ( void   )  [inline]

Definition at line 227 of file MaterialParam.h.

References MaterialParam::glossiness.

00227 { return glossiness;}

double getGlow ( void   )  [inline]

Definition at line 225 of file MaterialParam.h.

References MaterialParam::glow.

Referenced by ColladaXML::addEffect().

00225 { return glow;}

Here is the caller graph for this function:

double getLight ( void   )  [inline]

Definition at line 229 of file MaterialParam.h.

References MaterialParam::light.

00229 { return light;}

double getRotate ( void   )  [inline]

Definition at line 259 of file MaterialParam.h.

References TextureParam::getRotate(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00259 { return texture.getRotate();}

Here is the call graph for this function:

Here is the caller graph for this function:

double getScaleU ( void   )  [inline]

Definition at line 257 of file MaterialParam.h.

References TextureParam::getScaleU(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00257 { return texture.getScaleU();}

Here is the call graph for this function:

Here is the caller graph for this function:

double getScaleV ( void   )  [inline]

Definition at line 258 of file MaterialParam.h.

References TextureParam::getScaleV(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00258 { return texture.getScaleV();}

Here is the call graph for this function:

Here is the caller graph for this function:

double getShiftU ( void   )  [inline]

Definition at line 255 of file MaterialParam.h.

References TextureParam::getShiftU(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00255 { return texture.getShiftU();}

Here is the call graph for this function:

Here is the caller graph for this function:

double getShiftV ( void   )  [inline]

Definition at line 256 of file MaterialParam.h.

References TextureParam::getShiftV(), and MaterialParam::texture.

Referenced by MaterialParam::getBase64Params().

00256 { return texture.getShiftV();}

Here is the call graph for this function:

Here is the caller graph for this function:

double getShininess ( void   )  [inline]

Definition at line 224 of file MaterialParam.h.

References MaterialParam::shininess.

Referenced by ColladaXML::addEffect().

00224 { return shininess;}

Here is the caller graph for this function:

char* getSpecMapName ( void   )  [inline]

Definition at line 208 of file MaterialParam.h.

References TextureParam::getName(), and MaterialParam::specmap.

00208 { return specmap.getName();}       // 禁 free

Here is the call graph for this function:

char* getTextureName ( void   )  [inline]

Definition at line 206 of file MaterialParam.h.

References TextureParam::getName(), and MaterialParam::texture.

Referenced by ColladaXML::addEffect(), and ColladaXML::addPolylists().

00206 { return texture.getName();}       // 禁 free

Here is the call graph for this function:

Here is the caller graph for this function:

double getTransparent ( void   )  [inline]

Definition at line 223 of file MaterialParam.h.

References MaterialParam::transparent.

Referenced by ColladaXML::addEffect().

00223 { return transparent;}

Here is the caller graph for this function:

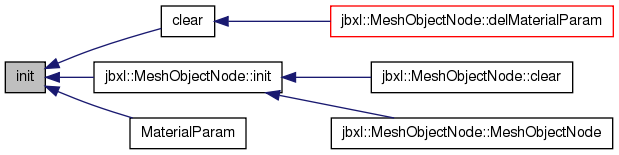

void init ( void   )

< 光沢

< 環境光

Definition at line 216 of file MaterialParam.cpp.

References MaterialParam::addname, MaterialParam::bright, MaterialParam::bumpmap, MaterialParam::enable, MaterialParam::environment, MaterialParam::glossiness, MaterialParam::glow, TextureParam::init(), init_Buffer(), MaterialParam::light, MaterialParam::mapping, MaterialParam::mflags, MaterialParam::others, MaterialParam::shininess, MaterialParam::specmap, MaterialParam::texture, and MaterialParam::transparent.

Referenced by MaterialParam::clear(), MeshObjectNode::init(), and MaterialParam::MaterialParam().

00217 {
00218     enable = false;
00219
00220     texture.init();
00221     bumpmap.init();
00222     specmap.init();
00223
00224     addname = init_Buffer();
00225
00226     transparent = 1.0;
00227     shininess   = 0.0;
00228     glow        = 0.0;
00229     bright      = 0.0;
00230     glossiness  = 0.0;
00231     environment = 0.0;
00232     light       = 0.0;
00233
00234     mapping     = 0;
00235     mflags      = 0;
00236     others      = 0;
00237
00238     return;
00239 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool isSetAlpha ( void   )  [inline]

Definition at line 236 of file MaterialParam.h.

References TextureParam::isSetAlpha(), and MaterialParam::texture.

Referenced by MaterialParam::isTransparency().

00236 { return texture.isSetAlpha();}

Here is the call graph for this function:

Here is the caller graph for this function:

bool isSetBright ( void   )  [inline]

Definition at line 196 of file MaterialParam.h.

References MaterialParam::bright.

Referenced by ColladaXML::addEffect(), and MaterialParam::isSetParams().

00196 { return (bright!=0.0);}

Here is the caller graph for this function:

bool isSetBumpMap ( void   )  [inline]

Definition at line 189 of file MaterialParam.h.

References MaterialParam::bumpmap, and TextureParam::isSetTexture().

00189 { return bumpmap.isSetTexture();}

Here is the call graph for this function:

bool isSetColor ( void   )  [inline]

Definition at line 235 of file MaterialParam.h.

References TextureParam::isSetColor(), and MaterialParam::texture.

Referenced by ColladaXML::addEffect().

00235 { return texture.isSetColor();}

Here is the call graph for this function:

Here is the caller graph for this function:

bool isSetGlow ( void   )  [inline]

Definition at line 195 of file MaterialParam.h.

References MaterialParam::glow.

Referenced by ColladaXML::addEffect(), and MaterialParam::isSetParams().

00195 { return (glow!=0.0);}

Here is the caller graph for this function:

bool isSetParams ( void   )  [inline]

Definition at line 193 of file MaterialParam.h.

References MaterialParam::isSetBright(), MaterialParam::isSetGlow(), MaterialParam::isSetShininess(), and MaterialParam::isSetTransparent().

00193 { return (isSetTransparent() || isSetGlow() || isSetShininess() || isSetBright());}

Here is the call graph for this function:

bool isSetShininess ( void   )  [inline]

Definition at line 197 of file MaterialParam.h.

References MaterialParam::shininess.

Referenced by ColladaXML::addEffect(), and MaterialParam::isSetParams().

00197 { return (shininess!=0.0);}

Here is the caller graph for this function:

bool isSetSpecMap ( void   )  [inline]

Definition at line 190 of file MaterialParam.h.

References TextureParam::isSetTexture(), and MaterialParam::specmap.

00190 { return specmap.isSetTexture();}

Here is the call graph for this function:

bool isSetTexture ( void   )  [inline]

Definition at line 188 of file MaterialParam.h.

References TextureParam::isSetTexture(), and MaterialParam::texture.

00188 { return texture.isSetTexture();}

Here is the call graph for this function:

bool isSetTextureParams ( void   )  [inline]

Definition at line 192 of file MaterialParam.h.

References MaterialParam::bumpmap, TextureParam::isSetParams(), MaterialParam::specmap, and MaterialParam::texture.

00192 { return (texture.isSetParams() || bumpmap.isSetParams() || specmap.isSetParams());}

Here is the call graph for this function:

bool isSetTransparent ( void   )  [inline]

Definition at line 198 of file MaterialParam.h.

References MaterialParam::transparent.

Referenced by MaterialParam::isSetParams(), and MaterialParam::isTransparency().

00198 { return (transparent<0.99);}

Here is the caller graph for this function:

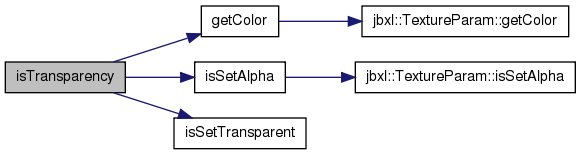

bool isTransparency ( void   )  [inline]

Definition at line 200 of file MaterialParam.h.

References MaterialParam::getColor(), MaterialParam::isSetAlpha(), and MaterialParam::isSetTransparent().

Referenced by ColladaXML::addEffect().

00200 { return (isSetAlpha() || isSetTransparent() || getColor(3)<0.99);}

Here is the call graph for this function:

Here is the caller graph for this function:

void printParam ( FILE *  fp  )

Definition at line 308 of file MaterialParam.cpp.

References MaterialParam::addname, MaterialParam::bright, Buffer::buf, MaterialParam::bumpmap, MaterialParam::enable, MaterialParam::environment, MaterialParam::glossiness, MaterialParam::glow, TextureParam::isSetTexture(), MaterialParam::mapping, MaterialParam::mflags, MaterialParam::others, TextureParam::printParam(), MaterialParam::shininess, MaterialParam::specmap, MaterialParam::texture, and MaterialParam::transparent.

00309 {
00310     if (!enable) {
00311         fprintf(fp, "MaterialParam is disable\n");
00312         return;
00313     }
00314
00315     texture.printParam(fp);
00316     if (bumpmap.isSetTexture()) bumpmap.printParam(fp);
00317     if (specmap.isSetTexture()) specmap.printParam(fp);
00318
00319     fprintf(fp, "MaterialParam.addname     = %s\n", addname.buf);
00320     fprintf(fp, "MaterialParam.transparent = %f\n", transparent);
00321     fprintf(fp, "MaterialParam.shininess   = %f\n", shininess);
00322     fprintf(fp, "MaterialParam.glow        = %f\n", glow);
00323     fprintf(fp, "MaterialParam.bright      = %f\n", bright);
00324     fprintf(fp, "MaterialParam.mapping     = %d\n", mapping);
00325     fprintf(fp, "MaterialParam.mflags      = %d\n", mflags);
00326     fprintf(fp, "MaterialParam.others      = %d\n", others);
00327
00328     fprintf(fp, "MaterialParam.glossiness  = %f\n", glossiness);
00329     fprintf(fp, "MaterialParam.environment = %f\n", environment);
00330
00331     fflush(fp);
00332     return;
00333 }

Here is the call graph for this function:

void setAdditionalName ( const char *  name  )  [inline]

Definition at line 210 of file MaterialParam.h.

References MaterialParam::addname, and copy_s2Buffer.

00210 { if(name!=NULL) copy_s2Buffer(name, &addname);}

void setAlphaChannel ( bool  h  )  [inline]

Definition at line 250 of file MaterialParam.h.

References TextureParam::setAlphaChannel(), and MaterialParam::texture.

00250 { texture.setAlphaChannel(h);}

Here is the call graph for this function:

void setAlphaCutoff ( double  m  )  [inline]

Definition at line 252 of file MaterialParam.h.

References TextureParam::setAlphaCutoff(), and MaterialParam::texture.

00252 { texture.setAlphaCutoff(m);}

Here is the call graph for this function:

void setAlphaMode ( int  m  )  [inline]

Definition at line 251 of file MaterialParam.h.

References TextureParam::setAlphaMode(), and MaterialParam::texture.

00251 { texture.setAlphaMode(m);}

Here is the call graph for this function:

void setBright ( double  b  )  [inline]

Definition at line 218 of file MaterialParam.h.

References MaterialParam::bright.

00218 { if(b>1.0) b = 1.0; else if(b<0.0) b = 0.0; bright = b;}

void setBumpMapName ( const char *  name  )  [inline]

Definition at line 203 of file MaterialParam.h.

References MaterialParam::bumpmap, and TextureParam::setName().

00203 { bumpmap.setName(name);}

Here is the call graph for this function:

void setColor ( double  v,
int  c
) [inline]

Definition at line 239 of file MaterialParam.h.

References TextureParam::setColor(), and MaterialParam::texture.

00239 { texture.setColor(v, c);}

Here is the call graph for this function:

void setColor ( double  r,
double  g,
double  b,
double  a = 1.0
) [inline]

Definition at line 238 of file MaterialParam.h.

References TextureParam::setColor(), and MaterialParam::texture.

00238 { texture.setColor(r, g, b, a);}

Here is the call graph for this function:

void setEnvironment ( double  e  )  [inline]

Definition at line 220 of file MaterialParam.h.

References MaterialParam::environment.

00220 { if(e>1.0) e = 1.0; else if(e<0.0) e = 0.0; environment = e;}

void setFlipU ( bool  h  )  [inline]

Definition at line 245 of file MaterialParam.h.

References TextureParam::setFlipU(), and MaterialParam::texture.

00245 { texture.setFlipU(h); }

Here is the call graph for this function:

void setFlipV ( bool  h  )  [inline]

Definition at line 246 of file MaterialParam.h.

References TextureParam::setFlipV(), and MaterialParam::texture.

00246 { texture.setFlipV(h); }

Here is the call graph for this function:

void setGlossiness ( double  g  )  [inline]

Definition at line 219 of file MaterialParam.h.

References MaterialParam::glossiness.

00219 { if(g>1.0) g = 1.0; else if(g<0.0) g = 0.0; glossiness = g;}

void setGlow ( double  g  )  [inline]

Definition at line 217 of file MaterialParam.h.

References MaterialParam::glow.

00217 { if(g>1.0) g = 1.0; else if(g<0.0) g = 0.0; glow = g;}

void setLight ( double  l  )  [inline]

Definition at line 221 of file MaterialParam.h.

References MaterialParam::light.

00221 { if(l>1.0) l = 1.0; else if(l<0.0) l = 0.0; light = l;}

void setRotate ( double  r  )  [inline]

Definition at line 244 of file MaterialParam.h.

References TextureParam::setRotate(), and MaterialParam::texture.

00244 { texture.setRotate(r);}

Here is the call graph for this function:

void setScale ( double  u,
double  v
) [inline]

Definition at line 248 of file MaterialParam.h.

References TextureParam::setScaleU(), TextureParam::setScaleV(), and MaterialParam::texture.

00248 { texture.setScaleU(u); texture.setScaleV(v);}

Here is the call graph for this function:

void setScaleU ( double  u  )  [inline]

Definition at line 242 of file MaterialParam.h.

References TextureParam::setScaleU(), and MaterialParam::texture.

00242 { texture.setScaleU(u);}

Here is the call graph for this function:

void setScaleV ( double  v  )  [inline]

Definition at line 243 of file MaterialParam.h.

References TextureParam::setScaleV(), and MaterialParam::texture.

00243 { texture.setScaleV(v);}

Here is the call graph for this function:

void setShift ( double  u,
double  v
) [inline]

Definition at line 247 of file MaterialParam.h.

References TextureParam::setShiftU(), TextureParam::setShiftV(), and MaterialParam::texture.

00247 { texture.setShiftU(u); texture.setShiftV(v);}

Here is the call graph for this function:

void setShiftU ( double  u  )  [inline]

Definition at line 240 of file MaterialParam.h.

References TextureParam::setShiftU(), and MaterialParam::texture.

00240 { texture.setShiftU(u);}

Here is the call graph for this function:

void setShiftV ( double  v  )  [inline]

Definition at line 241 of file MaterialParam.h.

References TextureParam::setShiftV(), and MaterialParam::texture.

00241 { texture.setShiftV(v);}

Here is the call graph for this function:

void setShininess ( double  s  )  [inline]

Definition at line 216 of file MaterialParam.h.

References MaterialParam::shininess.

00216 { if(s>1.0) s = 1.0; else if(s<0.0) s = 0.0; shininess = s;}

void setSpecMapName ( const char *  name  )  [inline]

Definition at line 204 of file MaterialParam.h.

References TextureParam::setName(), and MaterialParam::specmap.

00204 { specmap.setName(name);}

Here is the call graph for this function:

void setTextureName ( const char *  name  )  [inline]

Definition at line 202 of file MaterialParam.h.

References TextureParam::setName(), and MaterialParam::texture.

00202 { texture.setName(name);}

Here is the call graph for this function:

void setTransparent ( double  a  )  [inline]

Definition at line 215 of file MaterialParam.h.

References MaterialParam::transparent.

00215 { if(a>1.0) a = 1.0; else if(a<0.0) a = 0.0; transparent = a;}

void setupFullName ( const char *  ext  )
Parameters:
ext 拡張子

Definition at line 272 of file MaterialParam.cpp.

References TextureParam::addName(), MaterialParam::addname, Buffer::buf, MaterialParam::bumpmap, TextureParam::isSetTexture(), MaterialParam::specmap, and MaterialParam::texture.

00273 {
00274     if (texture.isSetTexture()) {
00275         if (addname.buf!=NULL) {
00276             texture.addName("_");
00277             texture.addName((char*)addname.buf);
00278         }
00279         if (ext!=NULL) {
00280             if (ext[0]!='.') texture.addName(".");
00281             texture.addName(ext);
00282         }
00283     }
00284     if (bumpmap.isSetTexture()) {
00285         if (addname.buf!=NULL) {
00286             bumpmap.addName("_");
00287             bumpmap.addName((char*)addname.buf);
00288         }
00289         if (ext!=NULL) {
00290             if (ext[0]!='.') bumpmap.addName(".");
00291             bumpmap.addName(ext);
00292         }
00293     }
00294     if (specmap.isSetTexture()) {
00295         if (addname.buf!=NULL) {
00296             specmap.addName("_");
00297             specmap.addName((char*)addname.buf);
00298         }
00299         if (ext!=NULL) {
00300             if (ext[0]!='.') specmap.addName(".");
00301             specmap.addName(ext);
00302         }
00303     }
00304 }

Here is the call graph for this function:

Member Data Documentation

Buffer addname [private]

Definition at line 156 of file MaterialParam.h.

Referenced by MaterialParam::addAdditionalName(), MaterialParam::dup(), MaterialParam::free(), MaterialParam::getAdditionalName(), MaterialParam::init(), MaterialParam::printParam(), MaterialParam::setAdditionalName(), and MaterialParam::setupFullName().

double bright [private]

Definition at line 161 of file MaterialParam.h.

Referenced by MaterialParam::getBase64Params(), MaterialParam::getBright(), MaterialParam::init(), MaterialParam::isSetBright(), MaterialParam::printParam(), and MaterialParam::setBright().

TextureParam bumpmap

Definition at line 174 of file MaterialParam.h.

Referenced by MaterialParam::dup(), MaterialParam::free(), MaterialParam::getBumpMapName(), MaterialParam::init(), jbxl::isSameMaterial(), MaterialParam::isSetBumpMap(), MaterialParam::isSetTextureParams(), MaterialParam::printParam(), MaterialParam::setBumpMapName(), and MaterialParam::setupFullName().

bool enable

Definition at line 167 of file MaterialParam.h.

Referenced by ColladaXML::addPolylists(), MaterialParam::init(), MaterialParam::printParam(), MeshObjectData::setMaterialParam(), and MeshObjectNode::setMaterialParam().

double environment [private]

Definition at line 163 of file MaterialParam.h.

Referenced by MaterialParam::getEnvironment(), MaterialParam::init(), MaterialParam::printParam(), and MaterialParam::setEnvironment().

double glossiness [private]

Definition at line 162 of file MaterialParam.h.

Referenced by MaterialParam::getGlossiness(), MaterialParam::init(), MaterialParam::printParam(), and MaterialParam::setGlossiness().

double glow [private]

Definition at line 160 of file MaterialParam.h.

Referenced by MaterialParam::getBase64Params(), MaterialParam::getGlow(), MaterialParam::init(), MaterialParam::isSetGlow(), MaterialParam::printParam(), and MaterialParam::setGlow().

double light [private]

Definition at line 164 of file MaterialParam.h.

Referenced by MaterialParam::getBase64Params(), MaterialParam::getLight(), MaterialParam::init(), and MaterialParam::setLight().

int mapping

Definition at line 169 of file MaterialParam.h.

Referenced by ColladaXML::addTexcrdSource(), MaterialParam::init(), and MaterialParam::printParam().

int mflags

Definition at line 170 of file MaterialParam.h.

Referenced by MaterialParam::init(), and MaterialParam::printParam().

int others

Definition at line 171 of file MaterialParam.h.

Referenced by MaterialParam::init(), and MaterialParam::printParam().

double shininess [private]

Definition at line 159 of file MaterialParam.h.

Referenced by MaterialParam::getBase64Params(), MaterialParam::getShininess(), MaterialParam::init(), MaterialParam::isSetShininess(), MaterialParam::printParam(), and MaterialParam::setShininess().

TextureParam specmap

Definition at line 175 of file MaterialParam.h.

Referenced by ColladaXML::addEffect(), MaterialParam::dup(), MaterialParam::free(), MaterialParam::getSpecMapName(), MaterialParam::init(), jbxl::isSameMaterial(), MaterialParam::isSetSpecMap(), MaterialParam::isSetTextureParams(), MaterialParam::printParam(), MaterialParam::setSpecMapName(), and MaterialParam::setupFullName().

TextureParam texture

Definition at line 173 of file MaterialParam.h.

Referenced by MaterialParam::dup(), MaterialParam::execFlipU(), MaterialParam::execFlipV(), MaterialParam::execInvRotate(), MaterialParam::execInvScale(), MaterialParam::execInvShift(), MaterialParam::execInvTrans(), MaterialParam::execRotate(), MaterialParam::execScale(), MaterialParam::execShift(), MaterialParam::execTrans(), MaterialParam::free(), MaterialParam::getAlphaChannel(), MaterialParam::getAlphaCutoff(), MaterialParam::getAlphaMode(), MaterialParam::getColor(), MaterialParam::getRotate(), MaterialParam::getScaleU(), MaterialParam::getScaleV(), MaterialParam::getShiftU(), MaterialParam::getShiftV(), MaterialParam::getTextureName(), MaterialParam::init(), jbxl::isSameMaterial(), MaterialParam::isSetAlpha(), MaterialParam::isSetColor(), MaterialParam::isSetTexture(), MaterialParam::isSetTextureParams(), MaterialParam::printParam(), MaterialParam::setAlphaChannel(), MaterialParam::setAlphaCutoff(), MaterialParam::setAlphaMode(), MaterialParam::setColor(), MaterialParam::setFlipU(), MaterialParam::setFlipV(), MaterialParam::setRotate(), MaterialParam::setScale(), MaterialParam::setScaleU(), MaterialParam::setScaleV(), MaterialParam::setShift(), MaterialParam::setShiftU(), MaterialParam::setShiftV(), MaterialParam::setTextureName(), and MaterialParam::setupFullName().

double transparent [private]

Definition at line 158 of file MaterialParam.h.

Referenced by MaterialParam::getBase64Params(), MaterialParam::getTransparent(), MaterialParam::init(), MaterialParam::isSetTransparent(), MaterialParam::printParam(), and MaterialParam::setTransparent().

The documentation for this class was generated from the following files:
Generated on 15 Nov 2023 for JunkBox_Lib++ (for Windows) by  doxygen 1.6.1
