xLib/bvh_tool.c File Reference

BVHツールプログラム. More...

#include "xtools.h"
#include "bvh_tool.h"

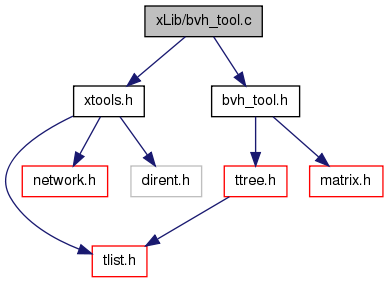

Include dependency graph for bvh_tool.c:

Go to the source code of this file.

Functions

BVHData * new_BVHData (void)
void del_BVHData (BVHData **bvh)
void init_BVHData (BVHData *bvh)
void clear_BVHData (BVHData *bvh)
tList * bvh_get_seq_data (FILE *fp)
tList * bvh_find_line (FILE *fp, const char *key)
int bvh_count_channels (tTree *pp)
int bvh_count_joints (tTree *pp)
void bvh_get_offset (tTree *pp, vector **vect)
void bvh_get_parameter (BVHData *bvh)
void _bvh_recsv_get_parameter (tTree *pp, BVHData *bvh)
void _bvh_space_format (FILE *fp, int depth)
BVHData * bvh_read_file (const char *fn)
int bvh_write_file (const char *fn, BVHData *bvh)
int bvh_print_data (FILE *fp, BVHData *bvh)
int bvh_print_hierarchy (FILE *fp, BVHData *bvh)
int _bvh_recsv_print_hierarchy (FILE *fp, tTree *tree)
int bvh_print_motion (FILE *fp, BVHData *bvh)
BVHData * bvh_parse_data (FILE *fp)
void bvh_parse_motion (BVHData *bvh, FILE *fp)
tTree * bvh_parse_hierarchy (tTree *tree, FILE *fp)

Detailed Description

Author:
Fumi.Iseki (C)

Definition in file bvh_tool.c.

Function Documentation

void _bvh_recsv_get_parameter ( tTree *  pp,
BVHData *  bvh
)

Definition at line 220 of file bvh_tool.c.

References _bvh_recsv_get_parameter().

Referenced by _bvh_recsv_get_parameter(), and bvh_get_parameter().

00221 {
00222     if (pp==NULL) return;
00223
00224     while(pp->esis!=NULL) pp = pp->esis;
00225
00226     do {
00227         bvh->channels += pp->ldat.lv;
00228         bvh->joint_num++;
00229
00230         if (pp->next!=NULL) _bvh_recsv_get_parameter(pp->next, bvh);
00231         pp = pp->ysis;
00232     } while(pp!=NULL);
00233
00234     return;
00235 }

Here is the call graph for this function:

Here is the caller graph for this function:

int _bvh_recsv_print_hierarchy ( FILE *  fp,
tTree *  tree
)

Definition at line 324 of file bvh_tool.c.

References _bvh_recsv_print_hierarchy(), _bvh_space_format(), BVH_NODE_END, BVH_NODE_JOINT, BVH_NODE_ROOT, BVH_STR_CHANNELS, BVH_STR_END, BVH_STR_JOINT, BVH_STR_OFFSET, BVH_STR_PX, BVH_STR_PY, BVH_STR_PZ, BVH_STR_ROOT, BVH_STR_RX, BVH_STR_RY, BVH_STR_RZ, vector::x, vector::y, and vector::z.

Referenced by _bvh_recsv_print_hierarchy(), and bvh_print_hierarchy().

00325 {
00326     if (tree!=NULL) {
00327         while(tree->esis!=NULL) tree = tree->esis;
00328         do {
00329             int i;
00330             tList_data ld = tree->ldat;
00331
00333             if (ld.id==BVH_NODE_ROOT || ld.id==BVH_NODE_JOINT || ld.id==BVH_NODE_END) {
00334                 _bvh_space_format(fp, tree->depth-1);
00335
00336                 if      (ld.id==BVH_NODE_ROOT)  fprintf(fp, "%s", BVH_STR_ROOT);
00337                 else if (ld.id==BVH_NODE_JOINT) fprintf(fp, "%s", BVH_STR_JOINT);
00338                 else                           fprintf(fp, "%s", BVH_STR_END);
00339
00340                 // NAME
00341                 if (ld.key.buf!=NULL) fprintf(fp, " %s", ld.key.buf);
00342                 fprintf(fp, "\n");
00343                 _bvh_space_format(fp, tree->depth-1);
00344                 fprintf(fp, "{\n");
00345
00346                 // OFFSET
00347                 _bvh_space_format(fp, tree->depth);
00348                 fprintf(fp, "%s", BVH_STR_OFFSET);
00349                 vector* vect = (vector*)ld.ptr;
00350                 if (vect!=NULL) {
00351                     fprintf(fp, " %f %f %f\n", vect->x, vect->y, vect->z);
00352                 }
00353                 else {
00354                     fprintf(fp, " %f %f %f\n", 0.0, 0.0, 0.0);
00355                 }
00356
00357                 // CHANNELS
00358                 if (ld.lv>0 && ld.val.buf!=NULL) {
00359                     _bvh_space_format(fp, tree->depth);
00360                     fprintf(fp, "%s %d", BVH_STR_CHANNELS, ld.lv);
00361                     for (i=0; i<ld.lv*2; i+=2) {
00362                         if (ld.val.buf[i]=='P') {
00363                             if      (ld.val.buf[i+1]=='X') fprintf(fp, " %s", BVH_STR_PX);
00364                             else if (ld.val.buf[i+1]=='Y') fprintf(fp, " %s", BVH_STR_PY);
00365                             else if (ld.val.buf[i+1]=='Z') fprintf(fp, " %s", BVH_STR_PZ);
00366                         }
00367                         else if (ld.val.buf[i]=='R') {
00368                             if      (ld.val.buf[i+1]=='X') fprintf(fp, " %s", BVH_STR_RX);
00369                             else if (ld.val.buf[i+1]=='Y') fprintf(fp, " %s", BVH_STR_RY);
00370                             else if (ld.val.buf[i+1]=='Z') fprintf(fp, " %s", BVH_STR_RZ);
00371                         }
00372                     }
00373                     fprintf(fp, "\n");
00374                 }
00375             }
00376
00377             //
00378             if (tree->next!=NULL) {
00379                 _bvh_recsv_print_hierarchy(fp, tree->next);
00380             }
00381
00382             _bvh_space_format(fp, tree->depth-1);
00383             fprintf(fp, "}\n");
00384
00385             tree = tree->ysis;
00386         } while(tree!=NULL);
00387     }
00388
00389     return 0;
00390 }

Here is the call graph for this function:

Here is the caller graph for this function:

void _bvh_space_format ( FILE *  fp,
int  depth
)

Definition at line 238 of file bvh_tool.c.

Referenced by _bvh_recsv_print_hierarchy().

00239 {
00240     int i;
00241
00242     for (i=0; i<depth;i++) fprintf(fp, "    ");
00243 }

Here is the caller graph for this function:

int bvh_count_channels ( tTree *  pp  )

Definition at line 142 of file bvh_tool.c.

References bvh_count_channels().

Referenced by bvh_count_channels().

00143 {
00144     int cnt = 0;
00145
00146     if (pp==NULL) return 0;
00147     while(pp->esis!=NULL) pp = pp->esis;
00148
00149     do {
00150         cnt += pp->ldat.lv;
00151         if (pp->next!=NULL) cnt += bvh_count_channels(pp->next);
00152         pp = pp->ysis;
00153     } while(pp!=NULL);
00154
00155     return cnt;
00156 }

Here is the call graph for this function:

Here is the caller graph for this function:

int bvh_count_joints ( tTree *  pp  )

Definition at line 159 of file bvh_tool.c.

References bvh_count_joints().

Referenced by bvh_count_joints().

00160 {
00161     int cnt = 0;
00162
00163     if (pp==NULL) return 0;
00164     while(pp->esis!=NULL) pp = pp->esis;
00165
00166     do {
00167         cnt++;
00168         if (pp->next!=NULL) cnt += bvh_count_joints(pp->next);
00169         pp = pp->ysis;
00170     } while(pp!=NULL);
00171
00172     return cnt;
00173 }

Here is the call graph for this function:

Here is the caller graph for this function:

tList* bvh_find_line ( FILE *  fp,
const char *  key
)

tList* bvh_find_line(FILE* fp, const char* key)

fp のファイルから keyで始まる行を探し出し，その行に含まれる項目を空白を区切りにしてリストに格納する．

Parameters:
fp ファイルポインタ
key 検索する文字列．
Returns:
アイテムを格納したリストへのポインタ．失敗した場合は NULL

Definition at line 125 of file bvh_tool.c.

References bvh_get_seq_data(), and del_tList().

Referenced by bvh_parse_data().

00126 {
00127     if (fp==NULL || key==NULL) return NULL;
00128
00129     tList* list = bvh_get_seq_data(fp);
00130
00131     while (!feof(fp)) {
00132         if (!strcasecmp((char*)list->ldat.key.buf, key)) return list;
00133
00134         del_tList(&list);
00135         list = bvh_get_seq_data(fp);
00136     }
00137
00138     return NULL;
00139 }

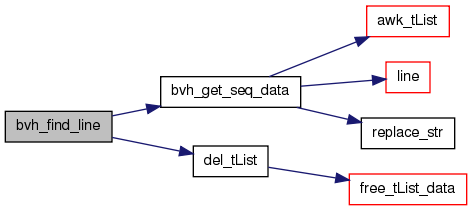

Here is the call graph for this function:

Here is the caller graph for this function:

void bvh_get_offset ( tTree *  pp,
vector **  vect
)

void bvh_get_offset(tTree* pp, vector** vect)

OFFSETの値を順に取り出して *vect[] に格納する．

Parameters:
pp Hierarchy データへのポインタ．
vect OFFSETを格納する vect[]へのポインタ．vect[]は予め領域を確保しておく．

Definition at line 184 of file bvh_tool.c.

References bvh_get_offset().

Referenced by bvh_get_offset(), and bvh_parse_data().

00185 {
00186     if (pp==NULL) return;
00187
00188     while(pp->esis!=NULL) pp = pp->esis;
00189
00190     do {
00191         if (*vect!=NULL) {
00192             **vect = *(vector*)pp->ldat.ptr;
00193             (*vect)++;
00194         }
00195
00196         if (pp->next!=NULL) bvh_get_offset(pp->next, vect);
00197         pp = pp->ysis;
00198     } while(pp!=NULL);
00199
00200     return;
00201 }

Here is the call graph for this function:

Here is the caller graph for this function:

void bvh_get_parameter ( BVHData *  bvh  )

void bvh_get_parameter(BVHData* bvh)

hierarchy データから joint_num と channelsを設定する．

Definition at line 209 of file bvh_tool.c.

References _bvh_recsv_get_parameter().

Referenced by bvh_parse_data().

00210 {
00211     if (bvh==NULL || bvh->hierarchy==NULL) return;
00212
00213     bvh->joint_num = 0;
00214     bvh->channels  = 0;
00215
00216     _bvh_recsv_get_parameter(bvh->hierarchy, bvh);
00217 }

Here is the call graph for this function:

Here is the caller graph for this function:

tList* bvh_get_seq_data ( FILE *  fp  )

tList* bvh_get_seq_data(FILE* fp)

fp の一行分のデータに含まれる項目を空白を区切りにしてリストに格納する．

Parameters:
fp 読み出しファイルの識別子
Returns:
アイテムを格納したリストへのポインタ．失敗した場合は NULL

Definition at line 91 of file bvh_tool.c.

References awk_tList(), LBUF, line(), pack_char, replace_str(), and UNUSED.

Referenced by bvh_find_line(), bvh_parse_hierarchy(), and bvh_parse_motion().

00092 {
00093     char* pp;
00094     UNUSED(pp);
00095
00096     if (fp==NULL) return NULL;
00097
00098     char line[LBUF+1];
00099     line[LBUF] = '\0';
00100
00101     pp = fgets(line, LBUF, fp);
00102     char*  pack = pack_char(line, ' ');
00103     if (pack==NULL) return NULL;
00104     //
00105     replace_str(pack, LBUF, " :", ":");
00106     //replace_str(pack, LBUF, " {", "\n{\n");
00107     //replace_str(pack, LBUF, " }", "\n}\n");
00108
00109     tList* list = awk_tList(pack, ' ');
00110     free(pack);
00111
00112     return list;
00113 }

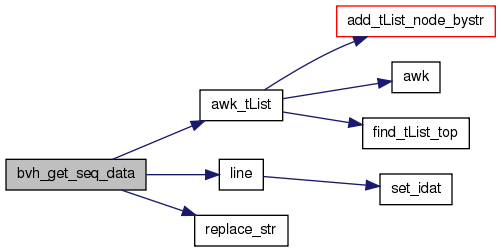

Here is the call graph for this function:

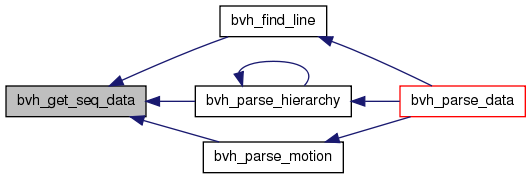

Here is the caller graph for this function:

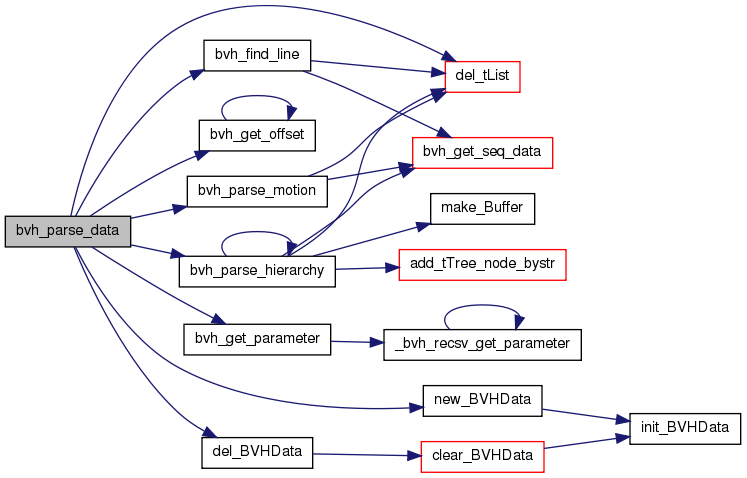

BVHData* bvh_parse_data ( FILE *  fp  )

Definition at line 422 of file bvh_tool.c.

References bvh_find_line(), bvh_get_offset(), bvh_get_parameter(), bvh_parse_hierarchy(), bvh_parse_motion(), BVH_STR_FRAME, BVH_STR_FRAMES, BVH_STR_HIERARCHY, BVH_STR_MOTION, BVH_STR_TIME, del_BVHData(), del_tList(), JBXL_ERROR, JBXL_NORMAL, and new_BVHData().

Referenced by bvh_read_file().

00423 {
00424     BVHData* bvh = NULL;
00425     tList*  list = NULL;
00426
00427     if (fp==NULL) return NULL;
00428
00429     // Search HIERARCHY
00430     list = bvh_find_line(fp, BVH_STR_HIERARCHY);
00431     if (list==NULL) return bvh;
00432     del_tList(&list);
00433
00434     // HIERARCHY
00435     bvh = new_BVHData();
00436     if (bvh==NULL) return NULL;
00437     bvh->state = JBXL_ERROR;
00438
00439     bvh->hierarchy = bvh_parse_hierarchy(NULL, fp);
00440     if (bvh->hierarchy==NULL) {
00441         del_BVHData(&bvh);
00442         return NULL;
00443     }
00444
00445     //bvh->joint_num = bvh_count_joints(bvh->hierarchy);
00446     //bvh->channels = bvh_count_channels(bvh->hierarchy);
00447     bvh_get_parameter(bvh);
00448
00449     // OFFSET
00450     bvh->offset = (vector*)malloc(sizeof(vector)*bvh->joint_num);
00451     if (bvh->offset!=NULL) {
00452         memset(bvh->offset, 0, sizeof(vector)*bvh->joint_num);
00453         vector* vect = bvh->offset;
00454         bvh_get_offset(bvh->hierarchy, &vect);
00455     }
00456
00457     // search MOTION
00458     list = bvh_find_line(fp, BVH_STR_MOTION);
00459     if (list==NULL) return bvh;
00460     del_tList(&list);
00461
00462     list = bvh_find_line(fp, BVH_STR_FRAMES);
00463     if (list==NULL || list->next==NULL) return bvh;
00464     bvh->frame_num = atoi((char*)list->next->ldat.key.buf);
00465     del_tList(&list);
00466
00467     list = bvh_find_line(fp, BVH_STR_FRAME);
00468     if (list==NULL || list->next==NULL || list->next->next==NULL)  return bvh;
00469     if (strcasecmp(BVH_STR_TIME, (char*)list->next->ldat.key.buf)) return bvh;
00470     bvh->frame_time = atof((char*)list->next->next->ldat.key.buf);
00471     if (bvh->frame_time!=0.0) bvh->framepsec = (int)(1./bvh->frame_time);
00472     else                      bvh->framepsec = 30;
00473     del_tList(&list);
00474
00475     // MOTION
00476     bvh_parse_motion(bvh, fp);
00477     if (bvh->frame_num>0) bvh->state = JBXL_NORMAL;
00478
00479     return bvh;
00480 }

Here is the call graph for this function:

Here is the caller graph for this function:

tTree* bvh_parse_hierarchy ( tTree *  tree,
FILE *  fp
)

Definition at line 526 of file bvh_tool.c.

References add_tTree_node_bystr(), bvh_get_seq_data(), BVH_NODE_END, BVH_NODE_JOINT, BVH_NODE_ROOT, bvh_parse_hierarchy(), BVH_STR_CHANNELS, BVH_STR_END, BVH_STR_JOINT, BVH_STR_OFFSET, BVH_STR_PX, BVH_STR_PY, BVH_STR_PZ, BVH_STR_ROOT, BVH_STR_RX, BVH_STR_RY, BVH_STR_RZ, cat_s2Buffer, del_tList(), FALSE, make_Buffer(), TRUE, vector::x, vector::y, and vector::z.

Referenced by bvh_parse_data(), and bvh_parse_hierarchy().

00527 {
00528     int    endf = FALSE;
00529     tTree* next = NULL;
00530     //
00531     tList* list = bvh_get_seq_data(fp);
00532
00533     while (list!=NULL) {
00534         //
00535         char* cmp = (char*)list->ldat.key.buf;
00536         if (cmp!=NULL) {
00537             //
00538             // ROOT
00539             if (!strcasecmp(cmp, BVH_STR_ROOT)) {
00540                 endf = TRUE;
00541                 if (list->next==NULL) {
00542                     next = add_tTree_node_bystr(tree, BVH_NODE_ROOT, 0, "", NULL, NULL, 0);
00543                     if (tree==NULL) tree = next;
00544                 }
00545                 else {
00546                     next = add_tTree_node_bystr(tree, BVH_NODE_ROOT, 0, (char*)list->next->ldat.key.buf, NULL, NULL, 0);
00547                     if (tree==NULL) tree = next;
00548                 }
00549             }
00550
00551             //
00552             // JOINT
00553             else if (!strcasecmp(cmp, BVH_STR_JOINT)) {
00554                 if (list->next==NULL) {
00555                     next = add_tTree_node_bystr(tree, BVH_NODE_JOINT, 0, "", NULL, NULL, 0);
00556                     if (tree==NULL) tree = next;
00557                 }
00558                 else {
00559                     next = add_tTree_node_bystr(tree, BVH_NODE_JOINT, 0, (char*)list->next->ldat.key.buf, NULL, NULL, 0);
00560                     if (tree==NULL) tree = next;
00561                 }
00562             }
00563
00564             //
00565             // END
00566             else if (!strcasecmp(cmp, BVH_STR_END)) {
00567                 if (list->next==NULL) {
00568                     next = add_tTree_node_bystr(tree, BVH_NODE_END, 0, "", NULL, NULL, 0);
00569                 }
00570                 else {
00571                     next = add_tTree_node_bystr(tree, BVH_NODE_END, 0, (char*)list->next->ldat.key.buf, NULL, NULL, 0);
00572                 }
00573             }
00574
00575             //
00576             // OFFSET
00577             else if (!strcasecmp(cmp, BVH_STR_OFFSET)) {
00578                 //
00579                 tList* lt = list;
00580
00581                 vector* vect = (vector*)malloc(sizeof(vector));
00582                 memset(vect, 0, sizeof(vector));
00583
00584                 //
00585                 if (lt->next!=NULL) {
00586                     lt = lt->next;
00587                     vect->x = atof((char*)lt->ldat.key.buf);
00588                 }
00589                 if (lt->next!=NULL) {
00590                     lt = lt->next;
00591                     vect->y = atof((char*)lt->ldat.key.buf);
00592                 }
00593                 if (lt->next!=NULL) {
00594                     lt = lt->next;
00595                     vect->z = atof((char*)lt->ldat.key.buf);
00596                 }
00597
00598                 if (tree!=NULL) {
00599                     tree->ldat.ptr = (void*)vect;
00600                     tree->ldat.sz  = sizeof(vector);
00601                 }
00602             }
00603
00604             //
00605             // CHANNELS
00606             else if (!strcasecmp(cmp, BVH_STR_CHANNELS)) {
00607                 //
00608                 int i, num = 0;
00609                 tList*  lt = list;
00610
00611                 if (lt->next!=NULL) {
00612                     lt = lt->next;
00613                     num = atoi((char*)lt->ldat.key.buf);
00614                 }
00615                 if (tree!=NULL) tree->ldat.lv = num;
00616
00617                 //
00618                 if (num>0) {
00619                     Buffer channel = make_Buffer(13);    // strlen("PXPYPZRXRYRZ") + 1
00620
00621                     for (i=0; i<num; i++) {
00622                         if (lt->next!=NULL) {
00623                             lt = lt->next;
00624                             if      (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_PX)) {
00625                                 cat_s2Buffer("PX", &channel);
00626                             }
00627                             else if (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_PY)) {
00628                                 cat_s2Buffer("PY", &channel);
00629                             }
00630                             else if (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_PZ)) {
00631                                 cat_s2Buffer("PZ", &channel);
00632                             }
00633                             else if (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_RX)) {
00634                                 cat_s2Buffer("RX", &channel);
00635                             }
00636                             else if (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_RY)) {
00637                                 cat_s2Buffer("RY", &channel);
00638                             }
00639                             else if (!strcasecmp((char*)lt->ldat.key.buf, BVH_STR_RZ)) {
00640                                 cat_s2Buffer("RZ", &channel);
00641                             }
00642                         }
00643                     }
00644
00645                     if (tree!=NULL) tree->ldat.val = channel;
00646                 }
00647             }
00648
00649             //
00650             else if (!strcmp(cmp, "{")) {
00651                 if (next!=NULL) {
00652                     bvh_parse_hierarchy(next, fp);
00653                     if (endf) {
00654                         del_tList(&list);
00655                         return tree;
00656                     }
00657                 }
00658             }
00659
00660             //
00661             else if (!strcmp(cmp, "}")) {
00662                 del_tList(&list);
00663                 return tree;
00664             }
00665         }
00666
00667         del_tList(&list);
00668         list = bvh_get_seq_data(fp);
00669     }
00670
00671     return tree;
00672 }

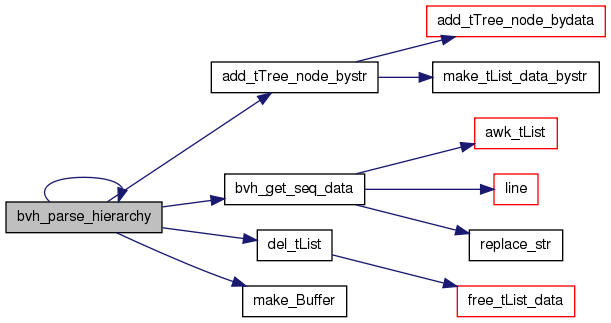

Here is the call graph for this function:

Here is the caller graph for this function:

void bvh_parse_motion ( BVHData *  bvh,
FILE *  fp
)

Definition at line 484 of file bvh_tool.c.

References bvh_get_seq_data(), and del_tList().

Referenced by bvh_parse_data().

00485 {
00486     if (bvh==NULL || fp==NULL) return;
00487     if (bvh->channels<=0 || bvh->frame_num<=0) return;
00488
00489     unsigned long int len = bvh->channels*bvh->frame_num*sizeof(double);
00490     bvh->motion = (double*)malloc(len);
00491     if (bvh->motion==NULL) return;
00492     memset(bvh->motion, 0, len);
00493
00494     //
00495     tList* list = bvh_get_seq_data(fp);
00496
00497     int j = 0;
00498     while (!feof(fp) && list!=NULL) {
00499         if (list->ldat.key.buf==NULL) {
00500             del_tList(&list);
00501             break;
00502         }
00503
00504         int jptr  = j*bvh->channels;
00505         tList* lt = list;
00506
00507         int i = 0;
00508         while (i<bvh->channels && lt!=NULL) {
00509             bvh->motion[jptr+i] = atof((char*)lt->ldat.key.buf);
00510             lt = lt->next;
00511             i++;
00512         }
00513         j++;
00514
00515         del_tList(&list);
00516         list = bvh_get_seq_data(fp);
00517     }
00518
00519     bvh->frame_num = j;
00520
00521     return;
00522 }

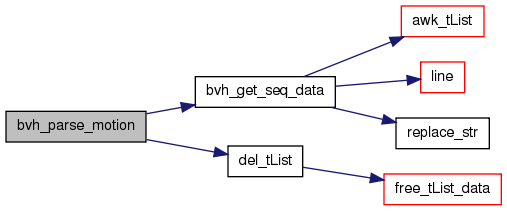

Here is the call graph for this function:

Here is the caller graph for this function:

int bvh_print_data ( FILE *  fp,
BVHData *  bvh
)

Definition at line 293 of file bvh_tool.c.

References bvh_print_hierarchy(), bvh_print_motion(), JBXL_ARGS_ERROR, JBXL_BVH_HIERARCHY_ERROR, JBXL_BVH_MOTION_ERROR, and JBXL_FILE_OPEN_ERROR.

Referenced by bvh_write_file().

00294 {
00295     if (bvh==NULL || bvh->hierarchy==NULL || bvh->motion==NULL) return JBXL_ARGS_ERROR;
00296     if (fp==NULL) return JBXL_FILE_OPEN_ERROR;
00297
00298     int ret = JBXL_BVH_HIERARCHY_ERROR;
00299
00300     int hrt = bvh_print_hierarchy(fp, bvh);
00301     if (hrt>=0) {
00302         ret = JBXL_BVH_MOTION_ERROR;
00303         int mrt = bvh_print_motion(fp, bvh);
00304         if (mrt>=0) ret = 0;
00305     }
00306
00307     return ret;
00308 }

Here is the call graph for this function:

Here is the caller graph for this function:

int bvh_print_hierarchy ( FILE *  fp,
BVHData *  bvh
)

Definition at line 311 of file bvh_tool.c.

References _bvh_recsv_print_hierarchy(), BVH_STR_HIERARCHY, and JBXL_ARGS_ERROR.

Referenced by bvh_print_data().

00312 {
00313     if (fp==NULL || bvh==NULL || bvh->hierarchy==NULL) return JBXL_ARGS_ERROR;
00314
00315     fprintf(fp, "%s\n", BVH_STR_HIERARCHY);
00316
00317     int ret = _bvh_recsv_print_hierarchy(fp, bvh->hierarchy);
00318     fflush(fp);
00319
00320     return ret;
00321 }

Here is the call graph for this function:

Here is the caller graph for this function:

int bvh_print_motion ( FILE *  fp,
BVHData *  bvh
)

Definition at line 393 of file bvh_tool.c.

References BVH_STR_FRAME_TIME, BVH_STR_FRAMES, BVH_STR_MOTION, and JBXL_ARGS_ERROR.

Referenced by bvh_print_data().

00394 {
00395     if (fp==NULL || bvh==NULL || bvh->motion==NULL) return JBXL_ARGS_ERROR;
00396
00397     fprintf(fp, "%s\n",    BVH_STR_MOTION);
00398     fprintf(fp, "%s %d\n", BVH_STR_FRAMES,     bvh->frame_num);
00399     fprintf(fp, "%s %f\n", BVH_STR_FRAME_TIME, bvh->frame_time);
00400
00401     int i, j;
00402
00403     for (j=0; j<bvh->frame_num; j++) {
00404         int jpos = j*bvh->channels;
00405         for (i=0; i<bvh->channels; i++) {
00406             fprintf(fp, "%f ", bvh->motion[jpos+i]);
00407         }
00408         fprintf(fp, "\n");
00409     }
00410
00411     fflush(fp);
00412
00413     return 0;
00414 }

Here is the caller graph for this function:

BVHData* bvh_read_file ( const char *  fn  )

BVHData* bvh_read_file(const char* fn)

Definition at line 255 of file bvh_tool.c.

References bvh_parse_data().

00256 {
00257     BVHData* bvh = NULL;
00258
00259     FILE* fp = fopen(fn, "r");
00260     if (fp==NULL) return NULL;
00261
00262     bvh = bvh_parse_data(fp);
00263     fclose(fp);
00264
00265     return bvh;
00266 }

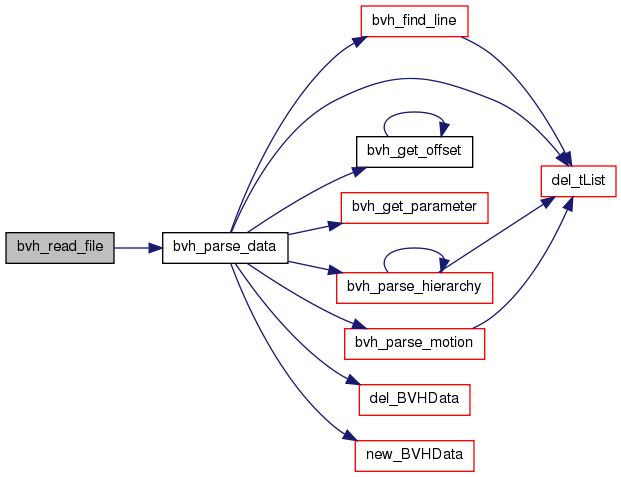

Here is the call graph for this function:

int bvh_write_file ( const char *  fn,
BVHData *  bvh
)

int bvh_write_file(const char* fn, BVHData* bvh)

Return values:
0 正常終了
JBXL_ARGS_ERROR 不正な入力データ
JBXL_FILE_OPEN_ERROR ファイルのオープン失敗
JBXL_BVH_HIERARCHY_ERROR HIERARCHYデータの書き込み失敗
JBXL_BVH_MOTION_ERROR MOTIONデータの書き込み失敗

Definition at line 278 of file bvh_tool.c.

References bvh_print_data(), JBXL_ARGS_ERROR, and JBXL_FILE_OPEN_ERROR.

00279 {
00280     if (fn==NULL || bvh==NULL) return JBXL_ARGS_ERROR;
00281     if (bvh->hierarchy==NULL || bvh->motion==NULL || bvh->state<0) return JBXL_ARGS_ERROR;
00282
00283     FILE* fp = fopen(fn, "w");
00284     if (fp==NULL) return JBXL_FILE_OPEN_ERROR;
00285
00286     int ret = bvh_print_data(fp, bvh);
00287     fclose(fp);
00288
00289     return ret;
00290 }

Here is the call graph for this function:

void clear_BVHData ( BVHData *  bvh  )

Definition at line 55 of file bvh_tool.c.

References del_tTree(), and init_BVHData().

Referenced by del_BVHData().

00056 {
00057     if (bvh==NULL) return;
00058
00059     if (bvh->hierarchy!=NULL) {
00060         del_tTree(&bvh->hierarchy);
00061         bvh->hierarchy = NULL;
00062     }
00063     if (bvh->motion!=NULL) {
00064         free(bvh->motion);
00065         bvh->motion = NULL;
00066     }
00067     if (bvh->offset!=NULL) {
00068         free(bvh->offset);
00069         bvh->offset = NULL;
00070     }
00071
00072     init_BVHData(bvh);
00073
00074     return;
00075 }

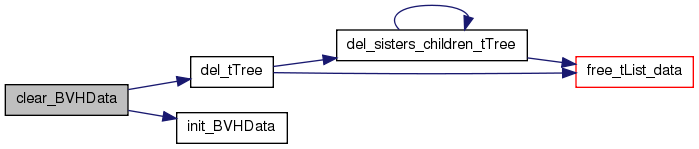

Here is the call graph for this function:

Here is the caller graph for this function:

void del_BVHData ( BVHData **  bvh  )

Definition at line 32 of file bvh_tool.c.

References clear_BVHData().

Referenced by bvh_parse_data().

00033 {
00034     if (bvh==NULL || *bvh==NULL) return;
00035
00036     clear_BVHData(*bvh);
00037     free(*bvh);
00038
00039     *bvh = NULL;
00040     return;
00041 }

Here is the call graph for this function:

Here is the caller graph for this function:

void init_BVHData ( BVHData *  bvh  )

Definition at line 44 of file bvh_tool.c.

References JBXL_NORMAL.

Referenced by clear_BVHData(), and new_BVHData().

00045 {
00046     if (bvh==NULL) return;
00047
00048     memset(bvh, 0, sizeof(BVHData));
00049     bvh->state = JBXL_NORMAL;
00050
00051     return;
00052 }

Here is the caller graph for this function:

BVHData* new_BVHData ( void   )

Definition at line 19 of file bvh_tool.c.

References init_BVHData().

Referenced by bvh_parse_data().

00020 {
00021     BVHData* bvh = NULL;
00022
00023     bvh = (BVHData*)malloc(sizeof(BVHData));
00024     if (bvh==NULL) return NULL;
00025
00026     init_BVHData(bvh);
00027
00028     return bvh;
00029 }

Here is the call graph for this function:

Here is the caller graph for this function:

Generated on 15 Nov 2023 for JunkBox_Lib by  doxygen 1.6.1
