xLib/dh_tool.c File Reference

#include "dh_tool.h"

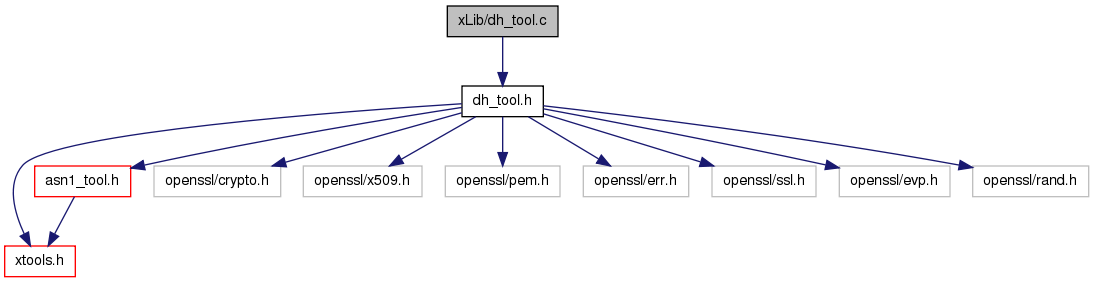

Include dependency graph for dh_tool.c:

Functions
int	save_DHspki_with_private (Buffer pki, FILE fp, DH dhkey)
Buffer	read_DHspki_with_private (FILE fp, DH *p_dhkey)
Buffer	get_DHspki_ff (char filename, int ks, DH *p_dhkey)
Buffer	gen_DHspki (int ks, DH **p_dhkey)
Buffer	gen_DHspki_fs (Buffer pki, DH **p_dhkey)
Buffer	get_DHsharedkey (Buffer pki, DH *dhkey)
Buffer	get_DHsharedkey_fY (Buffer ykey, DH *dhkey)
Buffer	get_DHYkey (Buffer param)
Buffer	get_DHPkey (Buffer param)
Buffer	get_DHGkey (Buffer param)
Buffer	get_DHalgorism (Buffer param)
Buffer	get_DHprivatekey (DH *dhkey)
Buffer	join_DHpubkey (Buffer param, Buffer key)

Function Documentation

Buffer gen_DHspki	(	int	ks,
		DH **	p_dhkey
	)

Buffer gen_DHspki(int ks, DH** p_dhkey)

Diffie-Hellman の鍵を生成し,公開鍵の完全な情報（X.509の SubjectPublicKeyInfo）のDER形式で返す．
p_dhkey に DHの鍵パラメータが返る．

Parameters:

	ks	鍵長(Bit)．512/1024/2048 を指定．
	p_dhkey	DHの鍵パラメータが返る．要 DH_free().

Returns:: DER形式の公開鍵情報．

Definition at line 248 of file dh_tool.c.

References Buffer::buf, free_Buffer(), init_Buffer(), join_DHpubkey(), make_Buffer(), and Buffer::vldsz.

Referenced by get_DHspki_ff().

00250 00251 00252 00253 00254 00255 00256 00257 00258 00259 00260 00261 00262 00263 00264 00265 00266 00267 00268 00269 00270 00271 00272 00273 00274 00275 00276 00277 00278 00279     } 00280 00281 00282 00283 00284 00285 00286 00287 00288     } 00289 00290 00291 00292 00293 00294 00295 00296 00297 00298 00299 00300 00301 00302 00303 00304 00305     } 00306 00307 00308 00309 00310 00311 00312 00313 00314 00315 00316 00317 00318 00319 }

class="fragment">00249 { int sz, n, code; Buffer px, pp, pk; pk = init_Buffer(); if (p_dhkey==NULL) return pk; //if (!RAND_load_file("/dev/random", 1024)) return pk; //DEBUG_MODE PRINT_MESG("Load /dev/urandom.\n"); if (!RAND_load_file("/dev/urandom", 1024)) return pk; //DEBUG_MODE PRINT_MESG("Generate parameters.\n"); do { if (*p_dhkey!=NULL) DH_free(*p_dhkey); *p_dhkey = DH_new(); #if OPENSSL_VERSION_NUMBER < 0x10101000L *p_dhkey = DH_generate_parameters(ks, DH_GENERATOR_2, NULL, NULL); #else n = DH_generate_parameters_ex(*p_dhkey, ks, DH_GENERATOR_2, NULL); #endif n = DH_check(*p_dhkey, &code); } while (n!=1 || code!=0); //DEBUG_MODE PRINT_MESG("Generate key.\n"); sz = DH_generate_key(*p_dhkey); // 公開鍵(DH->pub_key)と秘密鍵(DH->priv_key)の生成 if (sz==0) { DH_free(*p_dhkey); *p_dhkey = NULL; return pk; //DEBUG_MODE PRINT_MESG("Check key size.\n"); sz = i2d_DHparams(*p_dhkey, NULL); // パラメタのサイズを検査 pp = px = make_Buffer(sz); // パラメタを入れるメモリを確保 if (pp.buf==NULL) { DH_free(*p_dhkey); *p_dhkey = NULL; return pk; pp.vldsz = i2d_DHparams(*p_dhkey, &(px.buf)); // パラメタ(P,G鍵)を DER形式へ．pp.bufに格納． // px.bufは破壊される． #if OPENSSL_VERSION_NUMBER < 0x10101000L sz = BN_num_bytes((*p_dhkey)->pub_key); #else const BIGNUM* pub_key = DH_get0_pub_key(*p_dhkey); sz = BN_num_bytes(pub_key); #endif px = make_Buffer(sz); if (px.buf==NULL) { DH_free(*p_dhkey); *p_dhkey = NULL; free_Buffer(&pp); return pk; #if OPENSSL_VERSION_NUMBER < 0x10101000L px.vldsz = BN_bn2bin((*p_dhkey)->pub_key, px.buf); #else px.vldsz = BN_bn2bin(pub_key, px.buf); #endif pk = join_DHpubkey(pp, px); // pp -> DHパラメタ(P,G鍵), px-> Y鍵 free_Buffer(&pp); free_Buffer(&px); return pk;

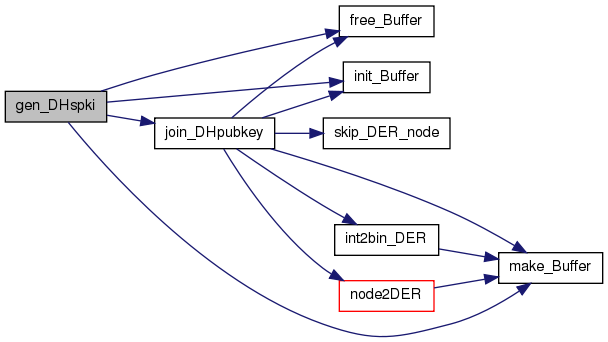

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer gen_DHspki_fs	(	Buffer	pki,
		DH **	p_dhkey
	)

Buffer gen_DHspki_fs(Buffer pki, DH** p_dhkey)

Generate DH SPKI from Server's SPKI.

サーバの公開鍵の情報（X.509の SubjectPublicKeyInfo, DER形式）の中の P,G鍵から自分の公開鍵情報（X.509 SPKI, DER形式）を作り出す．

Parameters:

	pki	相手の公開鍵情報（DER形式）
	p_dhkey	DHの鍵パラメータが返る．要 DH_free().

Returns:: 自分の公開鍵の情報（X.509の SubjectPublicKeyInfo, DER形式）

Definition at line 335 of file dh_tool.c.

References Buffer::buf, free_Buffer(), get_DHGkey(), get_DHPkey(), init_Buffer(), join_DHpubkey(), make_Buffer(), and Buffer::vldsz.

Referenced by start_CRYPT_transfer().

00336 {
00337     int  sz, n = 0, code;
00338     Buffer px, pp, pk;
00339     Buffer pkey, gkey;
00340
00341     //
00342     pk = init_Buffer();
00343     if (p_dhkey==NULL) return pk;
00344     //
00345     if (*p_dhkey!=NULL) DH_free(*p_dhkey);
00346     *p_dhkey = DH_new();
00347     if (*p_dhkey==NULL) return pk;
00348
00349     pkey = get_DHPkey(pki);
00350     gkey = get_DHGkey(pki);
00351     if (pkey.buf==NULL || gkey.buf==NULL) {
00352         free_Buffer(&pkey);
00353         free_Buffer(&gkey);
00354         DH_free(*p_dhkey);
00355         *p_dhkey = NULL;
00356         return pk;
00357     }
00358
00359 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00360     (*p_dhkey)->p = BN_bin2bn((const unsigned char*)(pkey.buf), pkey.vldsz, NULL);
00361     (*p_dhkey)->g = BN_bin2bn((const unsigned char*)(gkey.buf), gkey.vldsz, NULL);
00362 #else
00363     BIGNUM* dhp_bn = BN_bin2bn((const unsigned char*)(pkey.buf), pkey.vldsz, NULL);
00364     BIGNUM* dhg_bn = BN_bin2bn((const unsigned char*)(gkey.buf), gkey.vldsz, NULL);
00365     //
00366     if (dhp_bn!=NULL && dhg_bn!=NULL) {
00367         DH_set0_pqg(*p_dhkey, dhp_bn, NULL, dhg_bn);
00368     }
00369     else {
00370         DH_free(*p_dhkey);
00371         *p_dhkey = NULL;
00372     }
00373     //BN_free(dhp_bn);  // DHkeyの中身も消えてしまうので ここでは freeしない
00374     //BN_free(dhg_bn);
00375 #endif
00376
00377     free_Buffer(&pkey);
00378     free_Buffer(&gkey);
00379
00380     //
00381     if (*p_dhkey!=NULL) n = DH_check(*p_dhkey, &code);
00382     if (n!=1 || code!=0) {
00383         if (*p_dhkey!=NULL) DH_free(*p_dhkey);
00384         *p_dhkey = NULL;
00385         return pk;
00386     }
00387
00388     sz = DH_generate_key(*p_dhkey);
00389     if (sz==0) {
00390         DH_free(*p_dhkey);
00391         *p_dhkey = NULL;
00392         return pk;
00393     }
00394
00395     //
00396     sz = i2d_DHparams(*p_dhkey, NULL);                  // パラメタのサイズを検査
00397     pp = px = make_Buffer(sz);                          // パラメタを入れるメモリを確保
00398     if (pp.buf==NULL) {
00399         DH_free(*p_dhkey);
00400         *p_dhkey = NULL;
00401         return pk;
00402     }
00403     pp.vldsz = i2d_DHparams(*p_dhkey, &(px.buf));       // パラメタ(P,G鍵)を DER形式へ．pp.bufに格納．
00404                                                         // px.bufは破壊される．
00405 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00406     sz = BN_num_bytes((*p_dhkey)->pub_key);
00407 #else
00408     const BIGNUM* pub_key = DH_get0_pub_key(*p_dhkey);
00409     sz = BN_num_bytes(pub_key);
00410 #endif
00411
00412     px = make_Buffer(sz);
00413     if (px.buf==NULL) {
00414         DH_free(*p_dhkey);
00415         *p_dhkey = NULL;
00416         free_Buffer(&pp);
00417         return px;
00418     }
00419
00420 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00421     px.vldsz = BN_bn2bin((*p_dhkey)->pub_key, px.buf);  // 公開鍵(Y鍵)の DER形式
00422 #else
00423     px.vldsz = BN_bn2bin(pub_key, px.buf);              // 公開鍵(Y鍵)の DER形式
00424 #endif
00425
00426     pk = join_DHpubkey(pp, px);                         // pp -> DHパラメタ(P,G鍵),  px-> Y鍵
00427
00428     free_Buffer(&pp);
00429     free_Buffer(&px);
00430
00431     return pk;
00432 }

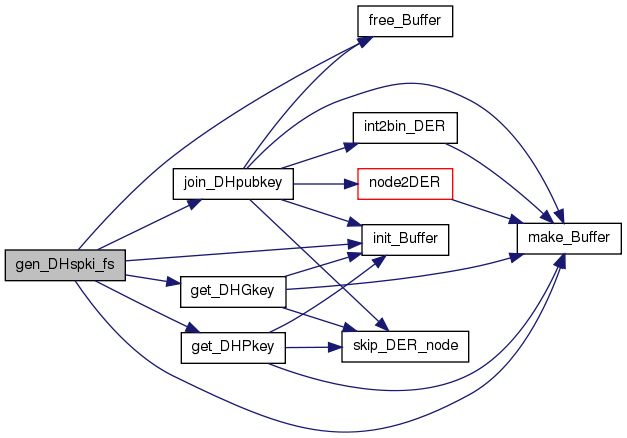

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHalgorism ( Buffer param )

Buffer get_DHalgorism(Buffer param)

X.509の SubjectPublicKeyInfo のDER形式から，アルゴリズム(Algor)を取り出す．

Parameters:

param

X.509の SubjectPublicKeyInfo のDER形式

Returns:: アルゴリズム（バイナリ）

参考：

    [SEQ  [SEQ  [OBJ  Algor]
                [SEQ  [INT  P-key]
                      [INT  G-key]
                      [INT  P-keysize - 1]
                ]
          ]
          [BIT  Seed(0x00)  [INT  Y-key]]
    ]

Definition at line 676 of file dh_tool.c.

References Buffer::buf, init_Buffer(), JBXL_ASN1_OBJ, JBXL_ASN1_SEQ_CNSTRCTD, make_Buffer(), skip_DER_node(), and Buffer::vldsz.

00677 {
00678     int     i, lp, sz=0;
00679     Buffer  pp;
00680     pp = init_Buffer();
00681
00682     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00683     if (sz<0) return pp;
00684
00685     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00686     if (sz<0) return pp;
00687
00688     sz = skip_DER_node(param, JBXL_ASN1_OBJ, sz, &lp);
00689     if (sz<0) return pp;
00690
00691     pp = make_Buffer(lp);
00692     if (pp.buf==NULL) return pp;
00693     for (i=0; i<lp; i++) pp.buf[i] = param.buf[sz+i];
00694     pp.vldsz = lp;
00695     return pp;
00696 }

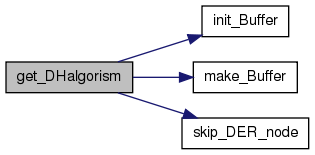

Here is the call graph for this function:

Buffer get_DHGkey ( Buffer param )

Buffer get_DHGkey(Buffer param)

X.509の SubjectPublicKeyInfo のDER形式から，Diffie-Hellman のG鍵を取り出す．普通は 2 か 5．

Parameters:

param

X.509の SubjectPublicKeyInfo のDER形式

Returns:: G鍵（バイナリ）

参考：

    [SEQ  [SEQ  [OBJ  Algor]
                [SEQ  [INT  P-key]
                      [INT  G-key]
                      [INT  P-keysize - 1]
                ]
          ]
          [BIT  Seed(0x00)  [INT  Y-key]]
    ]

Definition at line 621 of file dh_tool.c.

References Buffer::buf, init_Buffer(), JBXL_ASN1_INT, JBXL_ASN1_OBJ, JBXL_ASN1_SEQ_CNSTRCTD, make_Buffer(), skip_DER_node(), and Buffer::vldsz.

Referenced by gen_DHspki_fs(), and read_DHspki_with_private().

00622 {
00623     int     i, lp, sz=0;
00624     Buffer  pp;
00625     pp = init_Buffer();
00626
00627     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00628     if (sz<0) return pp;
00629
00630     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00631     if (sz<0) return pp;
00632
00633     sz = skip_DER_node(param, JBXL_ASN1_OBJ, sz, &lp);
00634     if (sz<0) return pp;
00635     sz = sz + lp;
00636
00637     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00638     if (sz<0) return pp;
00639
00640     sz = skip_DER_node(param, JBXL_ASN1_INT, sz, &lp);
00641     if (sz<0) return pp;
00642     sz = sz + lp;
00643
00644     sz = skip_DER_node(param, JBXL_ASN1_INT, sz, &lp);
00645     if (sz<0) return pp;
00646
00647     pp = make_Buffer(lp);
00648     if (pp.buf==NULL) return pp;
00649     for (i=0; i<lp; i++) pp.buf[i] = param.buf[sz+i];
00650     pp.vldsz = lp;
00651     return pp;
00652 }

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHPkey ( Buffer param )

Buffer get_DHPkey(Buffer param)

X.509の SubjectPublicKeyInfo のDER形式から，Diffie-Hellman のP鍵を取り出す．

Parameters:

param

X.509の SubjectPublicKeyInfo のDER形式

Returns:: P鍵（バイナリ）

参考：

    [SEQ  [SEQ  [OBJ  Algor]
                [SEQ  [INT  P-key]
                      [INT  G-key]
                      [INT  P-keysize - 1]
                ]
          ]
          [BIT  Seed(0x00)  [INT  Y-key]]
    ]

Definition at line 569 of file dh_tool.c.

References Buffer::buf, init_Buffer(), JBXL_ASN1_INT, JBXL_ASN1_OBJ, JBXL_ASN1_SEQ_CNSTRCTD, make_Buffer(), skip_DER_node(), and Buffer::vldsz.

Referenced by gen_DHspki_fs(), and read_DHspki_with_private().

00570 {
00571     int     i, lp, sz=0;
00572     Buffer  pp;
00573     pp = init_Buffer();
00574
00575     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00576     if (sz<0) return pp;
00577
00578     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00579     if (sz<0) return pp;
00580
00581     sz = skip_DER_node(param, JBXL_ASN1_OBJ, sz, &lp);
00582     if (sz<0) return pp;
00583     sz = sz + lp;
00584
00585     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00586     if (sz<0) return pp;
00587
00588     sz = skip_DER_node(param, JBXL_ASN1_INT, sz, &lp);
00589     if (sz<0) return pp;
00590
00591     pp = make_Buffer(lp);
00592     if (pp.buf==NULL) return pp;
00593     for (i=0; i<lp; i++) pp.buf[i] = param.buf[sz+i];
00594     pp.vldsz = lp;
00595     return pp;
00596 }

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHprivatekey ( DH * dhkey )

Buffer get_DHprivatekey(DH* dhkey)

DH鍵 dh からプライベート鍵を取り出して返す．

Parameters:

dhkey

DH鍵．

Returns:: プライベート鍵

Definition at line 707 of file dh_tool.c.

References Buffer::buf, make_Buffer(), and Buffer::vldsz.

Referenced by save_DHspki_with_private().

00708 {
00709     int    sz;
00710     Buffer pv;
00711
00712 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00713     sz = BN_num_bytes(dhkey->priv_key);
00714 //#elif OPENSSL_VERSION_NUMBER < 0x30000000L
00715 #else
00716     const BIGNUM* priv_key = DH_get0_pub_key(dhkey);
00717     sz = BN_num_bytes(priv_key);
00718 #endif
00719
00720     pv = make_Buffer(sz);
00721     if (pv.buf==NULL) return pv;
00722
00723 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00724     pv.vldsz = BN_bn2bin(dhkey->priv_key, pv.buf);
00725 //#elif OPENSSL_VERSION_NUMBER < 0xF0000000L
00726 #else
00727     pv.vldsz = BN_bn2bin(priv_key, pv.buf);
00728 #endif
00729
00730     return pv;
00731 }

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHsharedkey	(	Buffer	pki,
		DH *	dhkey
	)

Buffer get_DHsharedkey(Buffer pki, DH* dhkey)

相手の公開鍵の情報（X.509の SubjectPublicKeyInfo, DER形式）とDHkey（自分の鍵情報）を元に共通かぎを作り出す．

dhkkey には DH_generate_key(DHkey)（gen_DHspki() または gen_DHspki_fs()でも可）によって全てのパラメータ（P,G,Y,秘密鍵）が設定されていなければならない．

Parameters:

	pki	相手の公開鍵情報
	dhkey	自分の DH鍵

Returns:: 共通鍵（バイナリ）

参考：man -M /usr/local/ssl/man bn

Definition at line 450 of file dh_tool.c.

References Buffer::buf, free_Buffer(), get_DHsharedkey_fY(), get_DHYkey(), and init_Buffer().

Referenced by gen_CRYPT_SharedKey().

00451 {
00452     Buffer  ykey, skey;
00453
00454     skey = init_Buffer();
00455     ykey = get_DHYkey(pki);
00456     if (ykey.buf==NULL) return skey;
00457
00458     skey = get_DHsharedkey_fY(ykey, dhkey);
00459
00460     free_Buffer(&ykey);
00461     return skey;
00462 }

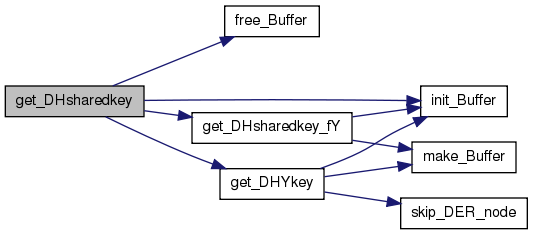

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHsharedkey_fY	(	Buffer	ykey,
		DH *	dhkey
	)

Buffer get_DHsharedkey_fY(Buffer ykey, DH* dhkey)

相手の（Diffie-Hellman の）Y鍵とDH Key（自分の鍵情報）を元に共通鍵を作り出す．

dhkkey には DH_generate_key(DHkey)（gen_DHspki() または gen_DHspki_fs()でも可）によって全てのパラメータ（P,G,Y,秘密鍵）が設定されていなければならない．

Parameters:

	ykey	相手の Y鍵（公開鍵）
	dhkey	自分の DH鍵

Returns:: 共通鍵（バイナリ）

参考：man -M /usr/local/ssl/man bn

Definition at line 480 of file dh_tool.c.

References Buffer::buf, init_Buffer(), make_Buffer(), and Buffer::vldsz.

Referenced by get_DHsharedkey().

00481 {
00482     int sz;
00483     Buffer  buf;
00484
00485     buf = init_Buffer();
00486     if (dhkey==NULL) return buf;
00487
00488     BIGNUM* yk = BN_bin2bn((const unsigned char*)(ykey.buf), ykey.vldsz, NULL);
00489
00490     sz  = DH_size(dhkey);
00491     buf = make_Buffer(sz);
00492     buf.vldsz = sz;
00493
00494     BN_free(yk);
00495     return buf;
00496 }

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer get_DHspki_ff	(	char *	filename,
		int	ks,
		DH **	p_dhkey
	)

Buffer get_DHspki_ff(char* filename, int ks, DH** p_dhkey)

Generate DH SPKI from File.

ファイルから Diffie-Hellman の鍵を読み込む．

ただし以下の場合にはksのサイズの鍵を新たに生成し，ファイルに保存してから返す．

ファイルが存在しないか，鍵を読み込めない
ファイルにプライベート鍵が保存されていない
ファイルの中の鍵の長さが ksより短い

p_dhkey に DHの鍵パラメータが返る．

Parameters:

	filename	鍵が保存されているファイル
	ks	新たに生成する場合の鍵長(Bit)．
	p_dhkey	DHの鍵パラメータが返る．要 DH_free().

Returns:: DER形式の公開鍵情報．

Definition at line 191 of file dh_tool.c.

References Buffer::buf, file_chmod_open(), file_exist(), free_Buffer(), gen_DHspki(), init_Buffer(), read_DHspki_with_private(), and save_DHspki_with_private().

00192 {
00193     Buffer  pki;
00194     FILE*   fp;
00195
00196     pki = init_Buffer();
00197     if (filename==NULL || p_dhkey==NULL) return pki;
00198
00199     if (file_exist(filename)) {
00200         //DEBUG_MODE PRINT_MESG("Load DH public key. ");
00201         fp = fopen(filename, "rb");
00202         pki = read_DHspki_with_private(fp, p_dhkey);
00203         fclose(fp);
00204         //DEBUG_MODE PRINT_MESG("... done.\n");
00205         if (pki.buf!=NULL) {
00206 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00207             if (DH_size(*p_dhkey)<(ks+7)/8 || (*p_dhkey)->priv_key==NULL) free_Buffer(&pki);    // v1.1.0
00208 #else
00209             const BIGNUM* priv_key = DH_get0_priv_key(*p_dhkey);
00210             if (DH_size(*p_dhkey)<(ks+7)/8 || priv_key==NULL) free_Buffer(&pki);              // v1.1.0
00211 #endif
00212         }
00213     }
00214
00215     if (pki.buf==NULL) {
00216         //DEBUG_MODE PRINT_MESG("Generate DH public key.");
00217         pki = gen_DHspki(ks, p_dhkey);
00218         //DEBUG_MODE PRINT_MESG("... done.\n");
00219
00220         fp = file_chmod_open(filename, (char*)"w", S_IRUSR | S_IWUSR);
00221         if (fp!=NULL) {
00222             save_DHspki_with_private(pki, fp, *p_dhkey);
00223             fclose(fp);
00224         }
00225     }
00226
00227     //DEBUG_MODE {
00228     //    Buffer enc;
00229     //    enc = encode_base64_Buffer(pki);
00230     //    DEBUG_MESG("SPKI = [%s]\n", enc.buf);
00231     //    free_Buffer(&enc);
00232     //}
00233     return pki;
00234 }

Here is the call graph for this function:

Buffer get_DHYkey ( Buffer param )

Buffer get_DHYkey(Buffer param)

X.509の SubjectPublicKeyInfo のDER形式から，Diffie-Hellman のY鍵を取り出す．

Parameters:

param

X.509の SubjectPublicKeyInfo のDER形式

Returns:: Y鍵（バイナリ）

参考：

    [SEQ  [SEQ  [OBJ  Algor]
                [SEQ  [INT  P-key]
                      [INT  G-key]
                      [INT  P-keysize - 1]
                ]
          ]
          [BIT  Seed(0x00)  [INT  Y-key]]
    ]

Definition at line 520 of file dh_tool.c.

References Buffer::buf, init_Buffer(), JBXL_ASN1_BIT, JBXL_ASN1_INT, JBXL_ASN1_SEQ_CNSTRCTD, make_Buffer(), skip_DER_node(), and Buffer::vldsz.

Referenced by get_DHsharedkey(), and read_DHspki_with_private().

00521 {
00522     int     i, lp, sz=0;
00523     Buffer  pp;
00524     pp = init_Buffer();
00525
00526     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00527     if (sz<0) return pp;
00528
00529     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, sz, &lp);
00530     if (sz<0) return pp;
00531     sz = sz + lp;
00532
00533     sz = skip_DER_node(param, JBXL_ASN1_BIT, sz, &lp);
00534     if (sz<0) return pp;
00535     sz++;                        // for Seed(0x00)
00536
00537     sz = skip_DER_node(param, JBXL_ASN1_INT, sz, &lp);
00538     if (sz<0) return pp;
00539
00540     pp = make_Buffer(lp);
00541     if (pp.buf==NULL) return pp;
00542     for (i=0; i<lp; i++) pp.buf[i] = param.buf[sz+i];
00543     pp.vldsz = lp;
00544     return pp;
00545 }

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer join_DHpubkey	(	Buffer	param,
		Buffer	key
	)

Buffer join_DHpubkey(Buffer param, Buffer key)

Diffie-Hellman の鍵交換のための X.509の SubjectPublicKeyInfo を取得する． DHパラメタ(P+G)とDH鍵(Y)のDER形式を結合して,完全な鍵情報のDER形式をつくる．

Parameters:

	param	DHパラメータ(P,G鍵)．i2d_DHparams()による DER形式．
	key	DH公開鍵(Y鍵)の DER形式．

Returns:: DER形式の公開鍵情報．[[Algor + [P + G + PKeySize]] + [BIT [Y]]]

参考： param のデータ形式は

    [SEQ  [INT  P-key]
          [INT  G-key]
    ]

である．これと Y-key から下記のデータを生成する．

    [SEQ  [SEQ  [OBJ  Algor]
                [SEQ  [INT  P-key]
                      [INT  G-key]
                      [INT  P-keysize - 1]
                ]
          ]
          [BIT(未使用bit無し)  [INT  Y-key]]
    ]

Attention:: DHのアルゴリズムは {0x06,0x07,0x2a,0x86,0x48,0xce,0x3e,0x02,0x01} だと思うのだが,RSAのアルゴリズムで動くようだ？

Definition at line 767 of file dh_tool.c.

References Buffer::buf, Buffer::bufsz, free_Buffer(), init_Buffer(), int2bin_DER(), JBXL_ASN1_BIT, JBXL_ASN1_INT, JBXL_ASN1_SEQ_CNSTRCTD, make_Buffer(), node2DER(), skip_DER_node(), and Buffer::vldsz.

Referenced by gen_DHspki(), and gen_DHspki_fs().

00768 {
00769 //    unsigned char dh_algor[]={0x06,0x07,0x2a,0x86,0x48,0xce,0x3e,0x02,0x01};            // DH  ?
00770     unsigned char dh_algor[]={0x06,0x09,0x2a,0x86,0x48,0x86,0xf7,0x0d,0x01,0x03,0x01};    // RSA ?
00771                                             // ↑ RSAアルゴリズム？
00772     int len_dh_algor = 11;
00773
00774     int ls, lp, la, sz;
00775     Buffer  px, pp, pm;
00776
00777     // [P鍵 + G鍵] → pp
00778     pp = init_Buffer();
00779     sz = skip_DER_node(param, JBXL_ASN1_SEQ_CNSTRCTD, 0, &lp);
00780     if (sz<0) return pp;
00781
00782     pp.buf   = param.buf   + sz;
00783     pp.bufsz = param.bufsz - sz;
00784     pp.vldsz = param.vldsz - sz;
00785
00786     // [鍵サイズ] → pm
00787     px = int2bin_DER(key.vldsz*8-1);
00788     pm = node2DER(px, JBXL_ASN1_INT);
00789     ls = pm.vldsz;
00790     free_Buffer(&px);
00791
00792     // pp[P鍵 + G鍵] + pm[鍵サイズ] → pm
00793     px = make_Buffer(lp+ls);
00794     memcpy(px.buf,    pp.buf, lp);
00795     memcpy(px.buf+lp, pm.buf, ls);
00796     px.vldsz = lp + ls;
00797     free_Buffer(&pm);              // ppを freeしてはいけない
00798     pm = node2DER(px, JBXL_ASN1_SEQ_CNSTRCTD);
00799     ls = pm.vldsz;
00800     free_Buffer(&px);
00801
00802     // dh_algor[アルゴリズム] + pm[P鍵 + G鍵 + 鍵サイズ] → px
00803     la = len_dh_algor;
00804     pp = make_Buffer(ls+la);
00805     memcpy(pp.buf,  dh_algor, la);
00806     memcpy(pp.buf+la, pm.buf, ls);
00807     pp.vldsz = ls + la;
00808     free_Buffer(&pm);
00809     px = node2DER(pp, JBXL_ASN1_SEQ_CNSTRCTD);
00810     ls = px.vldsz;
00811     free_Buffer(&pp);
00812
00813     // px[アルゴリズム + P鍵 + G鍵 + 鍵サイズ] + pp[Y鍵] → pm
00814     pm = node2DER(key, JBXL_ASN1_INT);
00815     pp = node2DER(pm,  JBXL_ASN1_BIT);
00816     lp = pp.vldsz;
00817     free_Buffer(&pm);
00818     pm = make_Buffer(ls+lp);
00819     memcpy(pm.buf,    px.buf, ls);
00820     memcpy(pm.buf+ls, pp.buf, lp);
00821     pm.vldsz = ls + lp;
00822     free_Buffer(&px);
00823     free_Buffer(&pp);
00824
00825     pp = node2DER(pm, JBXL_ASN1_SEQ_CNSTRCTD);
00826     free_Buffer(&pm);
00827     return pp;
00828 }

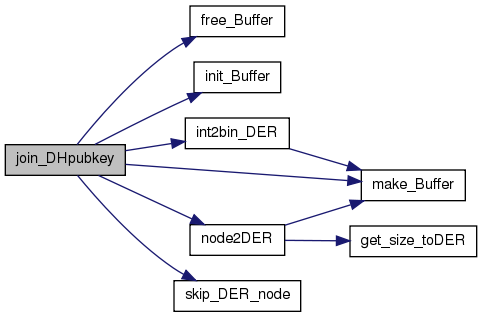

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer read_DHspki_with_private	(	FILE *	fp,
		DH **	p_dhkey
	)

Buffer read_DHspki_with_private(FILE* fp, DH** p_dhkey)

Diffie-Hellman の公開鍵情報（X.509の SubjectPublicKeyInfo）とプライペート鍵をファイルから読み込む．

Parameters:

	fp	ファイルポインタ
	p_dhkey	DHの鍵パラメータが返る．要 DH_free().

Returns:: 読み込んだ鍵情報．

Definition at line 91 of file dh_tool.c.

References Buffer::buf, free_Buffer(), get_DHGkey(), get_DHPkey(), get_DHYkey(), init_Buffer(), JBXL_FIO_ORIGINAL, JBXL_FIO_PRIV_KEY, JBXL_FIO_SPKI, read_tagged_Buffer(), and Buffer::vldsz.

Referenced by get_DHspki_ff().

00092 {
00093     int  n = 0, code;
00094     unsigned int  md;
00095     Buffer  pp, pv, pk, gk, yk;
00096
00097     pp = init_Buffer();
00098     if (fp==NULL) return pp;
00099
00100     md = JBXL_FIO_SPKI | JBXL_FIO_ORIGINAL;
00101     pp = read_tagged_Buffer(fp, &md);
00102     if (pp.buf==NULL) return pp;
00103
00104     if (*p_dhkey!=NULL) DH_free(*p_dhkey);
00105     *p_dhkey = DH_new();
00106     if (*p_dhkey==NULL) {
00107         free_Buffer(&pp);
00108         return pp;
00109     }
00110
00111     pk = get_DHPkey(pp);
00112     gk = get_DHGkey(pp);
00113     yk = get_DHYkey(pp);
00114
00115 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00116     // v1.1.0
00117     (*p_dhkey)->p = BN_bin2bn((const unsigned char*)(pk.buf), pk.vldsz, NULL);
00118     (*p_dhkey)->g = BN_bin2bn((const unsigned char*)(gk.buf), gk.vldsz, NULL);
00119     (*p_dhkey)->pub_key = BN_bin2bn((const unsigned char*)(yk.buf), yk.vldsz, NULL);
00120 #else
00121     // v1.1.1
00122     BIGNUM* dhp_bn = BN_bin2bn((const unsigned char*)(pk.buf), pk.vldsz, NULL);
00123     BIGNUM* dhg_bn = BN_bin2bn((const unsigned char*)(gk.buf), gk.vldsz, NULL);
00124     BIGNUM* dhy_bn = BN_bin2bn((const unsigned char*)(gk.buf), gk.vldsz, NULL);
00125
00126     if (dhp_bn!=NULL && dhg_bn!=NULL && dhy_bn!=NULL) {
00127         DH_set0_pqg(*p_dhkey, dhp_bn, NULL, dhg_bn);
00128         DH_set0_key(*p_dhkey, dhy_bn, NULL);
00129     }
00130     else {
00131         DH_free(*p_dhkey);
00132         *p_dhkey = NULL;
00133     }
00134 #endif
00135
00136     free_Buffer(&pk);
00137     free_Buffer(&gk);
00138     free_Buffer(&yk);
00139
00140     // 鍵のチェック
00141     if (*p_dhkey!=NULL) n = DH_check(*p_dhkey, &code);
00142     if (n!=1 || code!=0) {
00143         if (*p_dhkey!=NULL) DH_free(*p_dhkey);
00144         free_Buffer(&pp);
00145         return pp;
00146     }
00147
00148     // Private KEY の読み込み
00149     md = JBXL_FIO_PRIV_KEY | JBXL_FIO_ORIGINAL;
00150     pv = read_tagged_Buffer(fp, &md);
00151     if (pv.buf==NULL) {
00152         if (*p_dhkey!=NULL) DH_free(*p_dhkey);
00153         free_Buffer(&pp);
00154         return pp;
00155     }
00156
00157 #if OPENSSL_VERSION_NUMBER < 0x10101000L
00158     (*p_dhkey)->priv_key = BN_bin2bn((const unsigned char*)(pv.buf), pv.vldsz, NULL);
00159 #else
00160     BIGNUM* priv_key = BN_bin2bn((const unsigned char*)(pv.buf), pv.vldsz, NULL);
00161     DH_set0_key(*p_dhkey, NULL, priv_key);
00162 #endif
00163
00164     free_Buffer(&pv);
00165
00166     return  pp;
00167 }

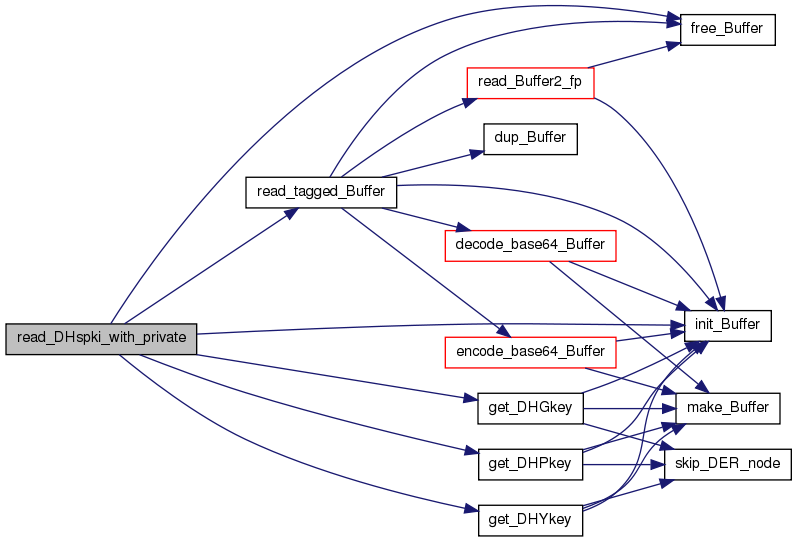

Here is the call graph for this function:

Here is the caller graph for this function:

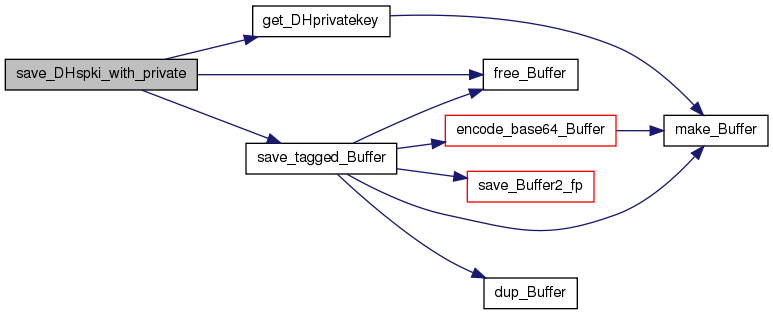

int save_DHspki_with_private	(	Buffer	pki,
		FILE *	fp,
		DH *	dhkey
	)

int save_DHspki_with_private(Buffer pki, FILE* fp)

Diffie-Hellman の公開鍵情報（X.509の SubjectPublicKeyInfo）pkiとプライベート鍵 (dhkeyより取得)をファイルに保存する．公開鍵情報，プライベート鍵の順で書き込まれる．既にファイルが存在する場合，その内容は上書きされる．

Parameters:

	pki	保存する鍵情報（DER）．
	fp	ファイルポインタ
	dhkey	DH鍵．

Return values:

	TRUE	成功．
	FALSE	失敗．ファイルの内容は保証されない．

Definition at line 60 of file dh_tool.c.

References Buffer::buf, FALSE, free_Buffer(), get_DHprivatekey(), JBXL_FIO_ORIGINAL, JBXL_FIO_PRIV_KEY, JBXL_FIO_SPKI, save_tagged_Buffer(), and TRUE.

Referenced by get_DHspki_ff().

00061 {
00062     unsigned int  md;
00063     Buffer pv;
00064
00065     if (fp==NULL || dhkey==NULL) return FALSE;
00066
00067     md = JBXL_FIO_SPKI | JBXL_FIO_ORIGINAL;
00068     if (!save_tagged_Buffer(pki, fp, md, FALSE)) return FALSE;
00069
00070     pv = get_DHprivatekey(dhkey);
00071     if (pv.buf==NULL) return FALSE;
00072
00073     md = JBXL_FIO_PRIV_KEY | JBXL_FIO_ORIGINAL;
00074     if (!save_tagged_Buffer(pv,  fp, md, FALSE)) return FALSE;
00075     free_Buffer(&pv);
00076
00077     return  TRUE;
00078 }

Here is the call graph for this function:

Here is the caller graph for this function:

xLib/dh_tool.c File Reference

Functions

Function Documentation
