gLib/gheader.h File Reference
グラフィックデータヘッダ定義 More...

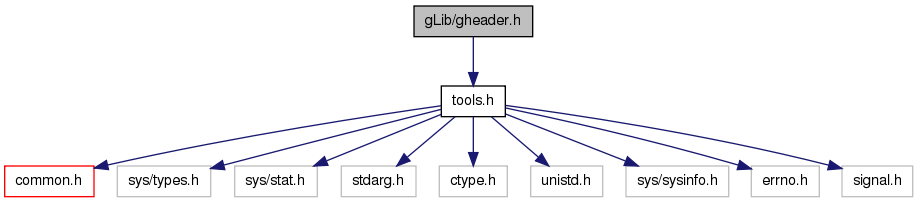

#include "tools.h"

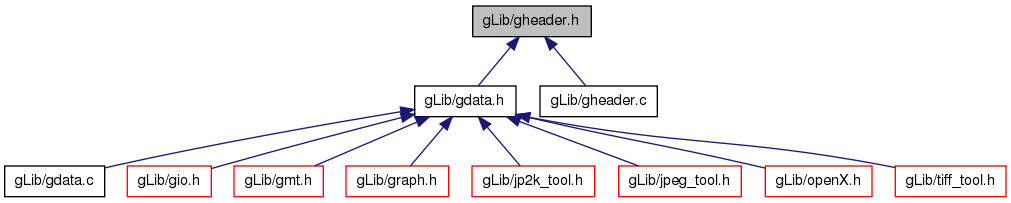

Go to the source code of this file.
Data Structures | |
| struct | CTHead |
| struct | RasHead |
| struct | CmnHead |
| struct | RGB24Data |
Defines | |
| #define | RAS_MAGIC 0x59a66a95 |
| #define | RAS_RLE 0x80 |
| #define | RT_OLD 0 |
| #define | RT_STANDARD 1 |
| #define | RT_BYTE_ENCODED 2 |
| #define | RT_FORMAT_RGB 3 |
| #define | RMT_NONE 0 |
| #define | RMT_EQUAL_RGB 1 |
| #define | RMT_RAW 2 |
| #define | UN_KNOWN_DATA 0 |
| 0x0000 // 知らないデータ形式（システムにお任せ） | |
| #define | PROC_DATA 1 |
| 0x0001 // 内部(DLL)処理されたデータ形式 | |
| #define | CREATE_DATA 2 |
| 0x0002 // 内部(DLL)で作成されたデータ形式 | |
| #define | MOON_DATA 3 |
| 0x0003 // CT DATA | |
| #define | DICOM_DATA 4 |
| 0x0004 // DICOM Header | |
| #define | USERSET_DATA 5 |
| 0x0005 // ユーザ指定のデータ形式（ヘッダ形式指定の場合，使用する） | |
| #define | RAS_DATA 8 |
| 0x0008 // SUN RASTER 8bit | |
| #define | RAS8_DATA 8 |
| 0x0008 // SUN RASTER 8bit | |
| #define | RAS16_DATA 9 |
| 0x0009 // SUN RASTER 16bit | |
| #define | RAS24_DATA 9 |
| 0x0001 // SUN RASTER 24bit | |
| #define | CT_DATA 16 |
| 0x0010 // CT DATA (Moon形式) | |
| #define | CT_3DM 18 |
| 0x0012 // 3D CT DATA（マルチスライス） | |
| #define | CT_3D_VOL 19 |
| 0x0013 // CT ボリュームデータ | |
| #define | CT_RGN_SL 20 |
| 0x0014 // CT Region Slice DATA | |
| #define | JPEG_DATA 32 |
| 0x0020 // JPEG RGB | |
| #define | JPEG_RGB_DATA 32 |
| 0x0020 // JPEG RGB | |
| #define | JPEG_MONO_DATA 33 |
| 0x0021 // JPEG MONO | |
| #define | JPEG16_RGB_DATA 34 |
| 0x0022 // 書き込み用(16bit->32bit変換) | |
| #define | JPEG16_ARGB_DATA 35 |
| 0x0023 // 書き込み用(16bit->32bit変換) | |
| #define | JPEG16_RGBA_DATA 36 |
| 0x0024 // 書き込み用(16bit->32bit変換) | |
| #define | JPEG_ARGB_DATA 37 |
| 0x0025 // 書き込み用(アルファチャンネルは削除される) | |
| #define | JPEG_RGBA_DATA 38 |
| 0x0026 // 書き込み用(アルファチャンネルは削除される) | |
| #define | TIFF_DATA 48 |
| 0x0030 // TIFF | |
| #define | PNG_DATA 64 |
| 0x0040 // PNG | |
| #define | TGA_DATA 80 |
| 0x0050 // TGA | |
| #define | HAS_DUMMY1 256 |
| 0x0100 | |
| #define | HAS_DUMMY2 512 |
| 0x0200 | |
| #define | HAS_BASE 1024 |
| 0x0400 // 基底（底上げ）値を持つ | |
| #define | HAS_ZSPACE 2048 |
| 0x0800 | |
| #define | HAS_RZXY 4096 |
| 0x1000 // with RZxy data | |
| #define | HAS_RBOUND 8192 |
| 0x2000 // with RBound data | |
| #define | HAS_LENDIAN 16384 |
| 0x4000 // リトルエンディアン | |
| #define | HEADER_NONE 32768 |
| 0x8000 // ヘッダ種別の指定なし | |
| #define | NUM_KDATA 32767 |
| 0x7fff // Max Numver of Data Format | |
| #define | RZXY_RATE 10000 |
| RZxy をファイルのヘッダに埋め込む際の比率（倍率）．. | |
| #define | ZEROCT_BASE 4096 |
| #define | UN_KNOWN_DATA_STR "UNKNOWN DATA" |
| #define | PROC_DATA_STR "PROC DATA" |
| #define | CREATE_DATA_STR "CREATE DATA" |
| #define | USERSET_DATA_STR "USERSET DATA" |
| #define | DICOM_DATA_STR "DICOM" |
| #define | RAS_DATA_STR "SUN RASTER" |
| #define | CT_DATA_STR "Common Header" |
| #define | CT_3DM_STR "Common 3D" |
| #define | MOON_DATA_STR "CT (Moon)" |
| #define | JPEG_RGB_DATA_STR "JPEG RGB" |
| #define | JPEG_MONO_DATA_STR "JPEG MONO" |
| #define | PNG_DATA_STR "PNG" |
| #define | TIFF_DATA_STR "TIFF" |
| #define | CT_3D_VOL_STR "3D VOL" |
| #define | GRAPH_COLOR_MONO 0 |
| 0x0000 | |
| #define | GRAPH_COLOR_MONO8 0 |
| #define | GRAPH_COLOR_MONO16 16 |
| 0x0010 | |
| #define | GRAPH_COLOR_R5G6B5 17 |
| 0x0011 | |
| #define | GRAPH_COLOR_RGB16 17 |
| #define | GRAPH_COLOR_R4G4B4A4 18 |
| 0x0012 | |
| #define | GRAPH_COLOR_RGBA16 18 |
| #define | GRAPH_COLOR_A4R4G4B4 19 |
| 0x0013 | |
| #define | GRAPH_COLOR_ARGB16 19 |
| #define | GRAPH_COLOR_MA 20 |
| 0x0014 | |
| #define | GRAPH_COLOR_M8A8 20 |
| #define | GRAPH_COLOR_MA16 20 |
| #define | GRAPH_COLOR_R8G8B8 32 |
| 0x0020 | |
| #define | GRAPH_COLOR_RGB24 32 |
| #define | GRAPH_COLOR_RGB 32 |
| #define | GRAPH_COLOR_B8G8R8 48 |
| 0x0030 | |
| #define | GRAPH_COLOR_BGR24 48 |
| #define | GRAPH_COLOR_BGR 48 |
| #define | GRAPH_COLOR_A8R8G8B8 64 |
| 0x0040 | |
| #define | GRAPH_COLOR_ARGB32 64 |
| #define | GRAPH_COLOR_ARGB 64 |
| #define | GRAPH_COLOR_R8G8B8A8 65 |
| 0x0041 | |
| #define | GRAPH_COLOR_RGBA32 65 |
| #define | GRAPH_COLOR_RGBA 65 |
| #define | GRAPH_COLOR_X8R8G8B8 66 |
| 0x0042 | |
| #define | GRAPH_COLOR_XRGB32 66 |
| #define | GRAPH_COLOR_XRGB 66 |
| #define | GRAPH_COLOR_A8B8G8R8 80 |
| 0x0050 | |
| #define | GRAPH_COLOR_ABGR32 80 |
| #define | GRAPH_COLOR_ABGR 80 |
| #define | GRAPH_COLOR_B8G8R8A8 81 |
| 0x0051 | |
| #define | GRAPH_COLOR_BGRA32 81 |
| #define | GRAPH_COLOR_BGRA 81 |
| #define | GRAPH_COLOR_X8B8G8R8 82 |
| 0x0052 | |
| #define | GRAPH_COLOR_XBGR32 82 |
| #define | GRAPH_COLOR_XBGR 82 |
| #define | GRAPH_COLOR_UNKNOWN 112 |
| 0x0070 | |
| #define | GRAPH_COLOR_USE_PLANE 128 |
| 0x0080 | |
| #define | GRAPH_COLOR_MASK 127 |
| 0x007f | |
| #define | GRAPH_COLOR_PR8G8B8 160 |
| 0x0020 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PRGB24 160 |
| #define | GRAPH_COLOR_PRGB 160 |
| #define | GRAPH_COLOR_PB8G8R8 176 |
| 0x0030 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PBGR24 176 |
| #define | GRAPH_COLOR_PBGR 176 |
| #define | GRAPH_COLOR_PA8R8G8B8 192 |
| 0x0040 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PARGB32 192 |
| #define | GRAPH_COLOR_PARGB 192 |
| #define | GRAPH_COLOR_PR8G8B8A8 193 |
| 0x0041 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PRGBA32 193 |
| #define | GRAPH_COLOR_PRGBA 193 |
| #define | GRAPH_COLOR_PX8R8G8B8 194 |
| 0x0042 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PXRGB32 194 |
| #define | GRAPH_COLOR_PXRGB 194 |
| #define | GRAPH_COLOR_PA8B8G8R8 208 |
| 0x0050 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PABGR32 208 |
| #define | GRAPH_COLOR_PABGR 208 |
| #define | GRAPH_COLOR_PB8G8R8A8 209 |
| 0x0051 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PBGRA32 209 |
| #define | GRAPH_COLOR_PBGRA 209 |
| #define | GRAPH_COLOR_PX8B8G8R8 210 |
| 0x0052 + GRAPH_COLOR_USE_PLANE | |
| #define | GRAPH_COLOR_PXBGR32 210 |
| #define | GRAPH_COLOR_PXBGR 210 |
| #define | STATE_GRAPH_NOERR 0 |
| #define | DICOM_STUDY_GROUP 0x0020 |
| #define | DICOM_IMAGE_GROUP 0x0028 |
| #define | DICOM_PIXEL_GROUP 0x7fe0 |
| #define | DICOM_PIXEL_ELEMENT 0x0010 |
| #define | DICOM_XSIZE_ELEMENT 0x0011 |
| #define | DICOM_YSIZE_ELEMENT 0x0010 |
| #define | DICOM_PXLSPC_ELEMENT 0x0030 |
| #define | DICOM_DEPTH_ELEMENT 0x0100 |
| #define | DICOM_GRYLV_ELEMENT 0x0101 |
| #define | DICOM_PIXCEL_VR 0x574f |
| Not. | |
| #define | DICOM_STR_VR 0x5344 |
| Z歪. | |
| #define | DICOM_INT_VR 0x5355 |
| X, Y. | |
Detailed Description
- Version:
- 3.0
- Date:
- 2002 8/27
ファイル形式とヘッダ種別 ---
- Common形式
- 任意の画像データを保存する時，その画像データに識別ヘッダ(CmnHead) を付けて保存したもの．
CmnHead cmhd : common header. 36Byte. Graphic Header : 画像データ固有のヘッダ Graphic Data : データ
- UN_KNOWN_DATA
- Common Headerは省略可（省略した場合は，本来のファイル形式）
CmnHead cmhd : common header. 36Byte. （省略可） Any Graphic : 任意のグラフィックデータ [Graphic Header] : 画像データ固有のヘッダ [Graphic Data] : データ
画像フォーマットを解析できない場合のファイル形式．従って，cmhd はkind以外意味がない．
この形式で保存することも，ヘッダを統一的に扱うと言う以外に特に意味はない．
- RAS_DATA
- Common Headerは省略可．Sun Rasterの一番単純な型(Starndard型)
- USERSET_DATA
- Common Headerは省略可．また，ANY HEADERが無い場合もある．
CmnHead cmhd : common header. 36Byte. （省略可） ANY HEADER : ユーザ指定のヘッダ． Graphic Data : データ
ヘッダ形式をオペレータ（ユーザ）が指定する場合の型．
ヘッダ情報を設定して，読み込み・書き込みの関数に渡す必要がある．
- Attention:
- 注）CTファイルに関しては Gio.h を見よ．
Definition in file gheader.h.
Define Documentation
| #define CT_3DM 18 |
Definition at line 148 of file gheader.h.
Referenced by write_ct_file(), write_file_rb(), and write_wsg_file().
| #define CT_DATA 16 |
Definition at line 147 of file gheader.h.
Referenced by read_ct_data(), read_wsg_file(), read_wsg_file_rb(), write_ct_file(), write_file_rb(), write_ras_file(), and write_wsg_file().
| #define DICOM_DEPTH_ELEMENT 0x0100 |
Definition at line 309 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_IMAGE_GROUP 0x0028 |
Definition at line 302 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_INT_VR 0x5355 |
Definition at line 314 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_PIXCEL_VR 0x574f |
Definition at line 312 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_PIXEL_ELEMENT 0x0010 |
Definition at line 305 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_PIXEL_GROUP 0x7fe0 |
Definition at line 303 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_PXLSPC_ELEMENT 0x0030 |
Definition at line 308 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_STR_VR 0x5344 |
Definition at line 313 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_XSIZE_ELEMENT 0x0011 |
Definition at line 306 of file gheader.h.
Referenced by dicom_header().
| #define DICOM_YSIZE_ELEMENT 0x0010 |
Definition at line 307 of file gheader.h.
Referenced by dicom_header().
| #define GRAPH_COLOR_MONO 0 |
Definition at line 200 of file gheader.h.
Referenced by setup_jp2k().
| #define GRAPH_COLOR_MONO16 16 |
Definition at line 204 of file gheader.h.
Referenced by setup_jp2k().
| #define GRAPH_COLOR_RGB 32 |
Definition at line 222 of file gheader.h.
Referenced by setup_jp2k().
| #define GRAPH_COLOR_RGB16 17 |
Definition at line 207 of file gheader.h.
Referenced by setup_jp2k().
| #define GRAPH_COLOR_RGBA 65 |
Definition at line 235 of file gheader.h.
Referenced by init_jp2k(), and setup_jp2k().
| #define GRAPH_COLOR_RGBA16 18 |
Definition at line 210 of file gheader.h.
Referenced by setup_jp2k().
| #define GRAPH_COLOR_UNKNOWN 112 |
Definition at line 253 of file gheader.h.
Referenced by setup_jp2k().
| #define HAS_BASE 1024 |
Definition at line 170 of file gheader.h.
Referenced by read_wsg_file(), read_wsg_file_rb(), write_ct_file(), and write_file_rb().
| #define HAS_LENDIAN 16384 |
Definition at line 174 of file gheader.h.
Referenced by read_user_data().
| #define HAS_RBOUND 8192 |
Definition at line 173 of file gheader.h.
Referenced by read_wsg_file(), read_wsg_file_rb(), and write_file_rb().
| #define HAS_RZXY 4096 |
Definition at line 172 of file gheader.h.
Referenced by read_wsg_file(), read_wsg_file_rb(), write_ct_file(), and write_file_rb().
| #define HEADER_NONE 32768 |
Definition at line 176 of file gheader.h.
Referenced by init_CmnHead(), read_ras_file(), read_wsg_file(), and read_wsg_file_rb().
| #define NUM_KDATA 32767 |
Definition at line 177 of file gheader.h.
Referenced by read_xxx_file().
| #define RAS_DATA 8 |
Definition at line 141 of file gheader.h.
Referenced by read_ras_data(), and write_ras_file_obit().
| #define RAS_MAGIC 0x59a66a95 |
Definition at line 94 of file gheader.h.
Referenced by read_ras_file(), read_xxx_file(), and write_ras_file_obit().
| #define RMT_NONE 0 |
Definition at line 100 of file gheader.h.
Referenced by write_ras_file_obit().
| #define RT_STANDARD 1 |
Definition at line 97 of file gheader.h.
Referenced by write_ras_file_obit().
| #define RZXY_RATE 10000 |
Definition at line 179 of file gheader.h.
Referenced by read_wsg_file(), read_wsg_file_rb(), write_ct_file(), and write_file_rb().
| #define USERSET_DATA 5 |
Definition at line 139 of file gheader.h.
Referenced by read_user_data().
