gLib/tiff_tool.h File Reference

TIFF TOOL HEADER. More...

#include "xtools.h"
#include "gdata.h"

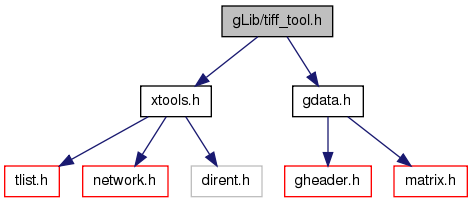

Include dependency graph for tiff_tool.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  TIFF_ifd
struct  TIFFImage

Defines

#define MAX_IFD_DEM_NUM   20
#define TIFF_TYPE_BYTE   1
#define TIFF_TYPE_ASCII   2
#define TIFF_TYPE_SOHRT   3
#define TIFF_TYPE_LONG   4
#define TIFF_TYPE_RATIONAL   5
#define TIFF_TYPE_SBYTE   6
#define TIFF_TYPE_UNDEFINED   7
#define TIFF_TYPE_SSHORT   8
#define TIFF_TYPE_SLONG   9
#define TIFF_TYPE_SRATIONAL   10
#define TIFF_TYPE_FLOAT   11
#define TIFF_TYPE_DOUBLE   12
#define TIFF_TAG_WIDTH   0x0100
#define TIFF_TAG_HEIGHT   0x0101
#define TIFF_TAG_DEPTH   0x0102
#define TIFF_TAG_COMP   0x0103
#define TIFF_TAG_COLOR   0x0106
#define TIFF_TAG_STRIP   0x0111
#define TIFF_TAG_STRIP_RAW   0x0116
#define TIFF_TAG_STRIP_CNT   0x0117
#define TIFF_TAG_XRES   0x011a
#define TIFF_TAG_YRES   0x011b
#define TIFF_TAG_RES_UNIT   0x0128
#define TIFF_TAG_COLORMAP   0x0140
#define TIFF_TAG_PIXEL   0x0115
#define TIFF_TAG_PLANAR   0x011c
#define TIFF_TAG_SOFTWARE   0x0131
#define TIFF_TAG_TILE_WIDTH   0x0142
#define TIFF_TAG_TILE_HEIGHT   0x0143
#define TIFF_TAG_TILE_OFFSET   0x0144
#define TIFF_TAG_TILE_BYTE   0x0145
#define TIFF_TAG_SMPL_FORMAT   0x0153
#define TIFF_TAG_COPYRIGHT   0x8298
#define TIFF_TAG_GEO_PXL_SCALE   0x830e
#define TIFF_TAG_GEO_TIEPOINT   0x8482
#define TIFF_TAG_GEO_TRANS   0x85d8
#define TIFF_TAG_GEO_DIR   0x87af
#define TIFF_TAG_GEO_DOUBLE_PM   0x87b0
#define TIFF_TAG_GEO_ASCII_PM   0x87b1

Functions

TIFF_ifd ** read_tiff_file (const char *fname)
TIFF_ifd * get_tiff_ifd (unsigned char *buf, int num)
TIFF_ifd * find_tiff_ifd (TIFF_ifd *ifd, unsigned short tag)
void proc_tiff_ifd (TIFF_ifd *ifd, unsigned char *buf)
void free_TIFF_ifd (TIFF_ifd *ifd)
void free_TIFF_ifd_dem (TIFF_ifd **ptr_ifd)
void print_tiff_ifd (FILE *fp, TIFF_ifd *ifd, int max_values)
void print_tiff_ifd_indiv (FILE *fp, TIFF_ifd *ifd, int max_values)
char * get_tiff_ascii_field (TIFF_ifd *ifd, int offset)
unsigned int get_tiff_uint_field (TIFF_ifd *ifd, int offset)
double get_tiff_double_field (TIFF_ifd *ifd, int offset)
int get_tiff_type_length (short type)

Variables

int TIFF_Swap_Flag

Detailed Description

Version:
0.9
Date:
2010 11/9
Author:
Fumi.Iseki (C)

Definition in file tiff_tool.h.

Define Documentation

#define MAX_IFD_DEM_NUM   20

Definition at line 37 of file tiff_tool.h.

Referenced by read_tiff_file().

#define TIFF_TAG_COLOR   0x0106

Definition at line 57 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_COLORMAP   0x0140

Definition at line 64 of file tiff_tool.h.

#define TIFF_TAG_COMP   0x0103

Definition at line 56 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_COPYRIGHT   0x8298

Definition at line 76 of file tiff_tool.h.

#define TIFF_TAG_DEPTH   0x0102

Definition at line 55 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_GEO_ASCII_PM   0x87b1

Definition at line 84 of file tiff_tool.h.

#define TIFF_TAG_GEO_DIR   0x87af

Definition at line 82 of file tiff_tool.h.

#define TIFF_TAG_GEO_DOUBLE_PM   0x87b0

Definition at line 83 of file tiff_tool.h.

#define TIFF_TAG_GEO_PXL_SCALE   0x830e

Definition at line 79 of file tiff_tool.h.

#define TIFF_TAG_GEO_TIEPOINT   0x8482

Definition at line 80 of file tiff_tool.h.

#define TIFF_TAG_GEO_TRANS   0x85d8

Definition at line 81 of file tiff_tool.h.

#define TIFF_TAG_HEIGHT   0x0101

Definition at line 54 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_PIXEL   0x0115

Definition at line 66 of file tiff_tool.h.

#define TIFF_TAG_PLANAR   0x011c

Definition at line 67 of file tiff_tool.h.

#define TIFF_TAG_RES_UNIT   0x0128

Definition at line 63 of file tiff_tool.h.

#define TIFF_TAG_SMPL_FORMAT   0x0153

Definition at line 74 of file tiff_tool.h.

#define TIFF_TAG_SOFTWARE   0x0131

Definition at line 68 of file tiff_tool.h.

#define TIFF_TAG_STRIP   0x0111

Definition at line 58 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_STRIP_CNT   0x0117

Definition at line 60 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_STRIP_RAW   0x0116

Definition at line 59 of file tiff_tool.h.

#define TIFF_TAG_TILE_BYTE   0x0145

Definition at line 73 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_TILE_HEIGHT   0x0143

Definition at line 71 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_TILE_OFFSET   0x0144

Definition at line 72 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_TILE_WIDTH   0x0142

Definition at line 70 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_WIDTH   0x0100

Definition at line 53 of file tiff_tool.h.

Referenced by proc_tiff_ifd().

#define TIFF_TAG_XRES   0x011a

Definition at line 61 of file tiff_tool.h.

#define TIFF_TAG_YRES   0x011b

Definition at line 62 of file tiff_tool.h.

#define TIFF_TYPE_ASCII   2

Definition at line 40 of file tiff_tool.h.

Referenced by get_tiff_ascii_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_BYTE   1

Definition at line 39 of file tiff_tool.h.

#define TIFF_TYPE_DOUBLE   12

Definition at line 50 of file tiff_tool.h.

Referenced by get_tiff_double_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_FLOAT   11

Definition at line 49 of file tiff_tool.h.

Referenced by get_tiff_double_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_LONG   4

Definition at line 42 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_RATIONAL   5

Definition at line 43 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_SBYTE   6

Definition at line 44 of file tiff_tool.h.

#define TIFF_TYPE_SLONG   9

Definition at line 47 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_SOHRT   3

Definition at line 41 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_SRATIONAL   10

Definition at line 48 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_SSHORT   8

Definition at line 46 of file tiff_tool.h.

Referenced by get_tiff_uint_field(), and print_tiff_ifd_indiv().

#define TIFF_TYPE_UNDEFINED   7

Definition at line 45 of file tiff_tool.h.

Function Documentation

TIFF_ifd* find_tiff_ifd ( TIFF_ifd *  ifd,
unsigned short  tag
)

Definition at line 489 of file tiff_tool.c.

References TIFF_ifd::count, and TIFF_ifd::tag.

00490 {
00491     if (ifd==NULL && tag<=0) return NULL;
00492
00493     int i;
00494     int count = ifd->count;
00495
00496     if (ifd->tag!=0) {
00497         if (ifd->tag==tag) return ifd;
00498         else return NULL;
00499     }
00500
00501     ifd++;
00502     for (i=0; i<count; i++) {
00503         if (ifd->tag==tag) return ifd;
00504         ifd++;
00505     }
00506     return NULL;
00507 }

void free_TIFF_ifd ( TIFF_ifd *  ifd  )

Definition at line 376 of file tiff_tool.c.

References TIFF_ifd::ex_value, and freeNull.

Referenced by free_TIFF_ifd_dem().

00377 {
00378     if (ifd==NULL) return;
00379     freeNull(ifd->ex_value);
00380     free(ifd);
00381 }

Here is the caller graph for this function:

void free_TIFF_ifd_dem ( TIFF_ifd **  ptr_ifd  )

Definition at line 385 of file tiff_tool.c.

References free_MSGraph, and free_TIFF_ifd().

00386 {
00387     if (ptr_ifd==NULL) return;
00388
00389     TIFF_ifd** ptr = ptr_ifd;
00390     while ((*ptr)!=NULL) {
00391         if ((*ptr)->tag==0) {
00392             if ((*ptr)->ex_value!=NULL) {
00393                 free_MSGraph((MSGraph*)(*ptr)->ex_value);
00394             }
00395         }
00396
00397         free_TIFF_ifd(*ptr);
00398         ptr++;
00399     }
00400
00401     free(ptr_ifd);
00402 }

Here is the call graph for this function:

char* get_tiff_ascii_field ( TIFF_ifd *  ifd,
int  offset
)

Definition at line 406 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, get_tiff_type_length(), TIFF_TYPE_ASCII, TIFF_ifd::type, and TIFF_ifd::value.

Referenced by print_tiff_ifd_indiv().

00407 {
00408     if (ifd==NULL) return NULL;
00409     if (ifd->type!=TIFF_TYPE_ASCII) return NULL;
00410     if (offset<0) offset = 0;
00411
00412     int len = get_tiff_type_length(ifd->type);
00413     unsigned char* ptr = NULL;
00414
00415     if (len*ifd->count>4 && ifd->ex_value!=NULL) ptr = (unsigned char*)(ifd->ex_value);
00416     else ptr = (unsigned char*)&(ifd->value);
00417
00418     return (char*)(ptr + offset);
00419 }

Here is the call graph for this function:

Here is the caller graph for this function:

double get_tiff_double_field ( TIFF_ifd *  ifd,
int  offset
)

Definition at line 454 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, get_tiff_type_length(), TIFF_TYPE_DOUBLE, TIFF_TYPE_FLOAT, TIFF_ifd::type, and TIFF_ifd::value.

Referenced by print_tiff_ifd_indiv().

00455 {
00456     if (ifd==NULL) return 0.0;
00457     if (ifd->type!=TIFF_TYPE_FLOAT && ifd->type!=TIFF_TYPE_DOUBLE) return 0.0;
00458     if (offset<0) offset = 0;
00459
00460     double ret = 0.0;
00461     int    len = get_tiff_type_length(ifd->type);
00462     unsigned char* ptr = NULL;
00463
00464     if (len*ifd->count>4 && ifd->ex_value!=NULL) ptr = (unsigned char*)(ifd->ex_value);
00465     else ptr = (unsigned char*)&(ifd->value);
00466
00467     if (len==4) {
00468         ret = *(float*)(ptr + offset*4);
00469     }
00470     else if (len==8) {
00471         ret = *(double*)(ptr + offset*8);
00472     }
00473
00474     return ret;
00475 }

Here is the call graph for this function:

Here is the caller graph for this function:

TIFF_ifd* get_tiff_ifd ( unsigned char *  buf,
int  num
)

TIFF_ifd* get_tiff_ifd(unsigned char* buf, int num)

TIFF形式のデータから num番目の IFDデータを取り出す．

Parameters:
buf TIFFデータの格納された Buffer型変数
num 何番目の IFDデータを取り出すか？
Returns:
IFDデータ (ifd)
Return values:
ifd->tga==0 is header
ifd->type is seq number of this image (num)
ifd->count is number of IFDs in this image
ifd->value is next image IFD offset. if this is 0, next image does not exist

Definition at line 77 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, is_big_endian(), is_little_endian(), swapl(), swaps(), TIFF_ifd::tag, TIFF_Swap_Flag, TRUE, TIFF_ifd::type, and TIFF_ifd::value.

Referenced by read_tiff_file().

00078 {
00079     TIFF_ifd* ifd = NULL;
00080     int  i, k;
00081
00082
00083     // Endian
00084     if (buf[0]=='I' && buf[1]=='I') {
00085         if (is_big_endian()) TIFF_Swap_Flag = TRUE;
00086     }
00087     else if (buf[0]=='M' && buf[1]=='M') {
00088         if (is_little_endian()) TIFF_Swap_Flag = TRUE;
00089     }
00090     else {
00091         return NULL;
00092     }
00093
00094     unsigned char* ptr = buf + 2;
00095     short version = *((short*)ptr);
00096     if (TIFF_Swap_Flag) version = swaps(version);
00097     if (version!=42) {
00098         return NULL;
00099     }
00100
00101     ptr += 2;
00102     unsigned int offset = *((unsigned int*)ptr);
00103     if (TIFF_Swap_Flag) offset = swapl(offset);
00104
00105
00106     if (num<0) num = 1;
00107     k = 0;
00108     while (k!=num && offset!=0) {
00109         k++;
00110         ptr = buf + offset;
00111         short nn = *((short*)ptr);
00112         if (TIFF_Swap_Flag) nn = swaps(nn);
00113         ptr += 2;
00114
00115         if (k==num) {
00116             ifd = (TIFF_ifd*)malloc(sizeof(TIFF_ifd)*(nn+1));
00117             if (ifd==NULL) {
00118                 return NULL;
00119             }
00120
00121             memset(&ifd[0], 0, 12);
00122             ifd[0].type  = num;
00123             ifd[0].count = nn;
00124
00125             for (i=1; i<=nn; i++) {
00126                 if (k==num) {
00127                     memcpy(&ifd[i], ptr, 12);
00128                     if (TIFF_Swap_Flag) {
00129                         ifd[i].tag   = swaps(ifd[i].tag);
00130                         ifd[i].type  = swaps(ifd[i].type);
00131                         ifd[i].count = swapl(ifd[i].count);
00132                         ifd[i].value = swapl(ifd[i].value);
00133                     }
00134                     ifd[i].ex_value = NULL;
00135                 }
00136                 ptr += 12;
00137             }
00138         }
00139         else {
00140             for (i=0; i<nn; i++) ptr += 12;
00141         }
00142
00143         offset = *((unsigned int*)ptr);
00144         if (TIFF_Swap_Flag) offset = swapl(offset);
00145     }
00146
00147     if (ifd!=NULL) ifd[0].value = offset;
00148     return ifd;
00149 }

Here is the call graph for this function:

Here is the caller graph for this function:

int get_tiff_type_length ( short  type  )

Definition at line 479 of file tiff_tool.c.

Referenced by get_tiff_ascii_field(), get_tiff_double_field(), get_tiff_uint_field(), and proc_tiff_ifd().

00480 {
00481     int  byte_num[] = {0, 1, 1, 2, 4, 8, 1, 1, 2, 4, 8, 4, 8};
00482
00483     if (type>0 && type<13) return byte_num[type];
00484     return 0;
00485 }

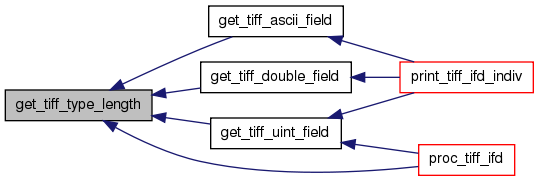

Here is the caller graph for this function:

unsigned int get_tiff_uint_field ( TIFF_ifd *  ifd,
int  offset
)

Definition at line 423 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, get_tiff_type_length(), swapl(), swaps(), TIFF_Swap_Flag, TIFF_TYPE_LONG, TIFF_TYPE_RATIONAL, TIFF_TYPE_SLONG, TIFF_TYPE_SOHRT, TIFF_TYPE_SRATIONAL, TIFF_TYPE_SSHORT, TIFF_ifd::type, and TIFF_ifd::value.

Referenced by print_tiff_ifd_indiv(), and proc_tiff_ifd().

00424 {
00425     if (ifd==NULL) return 0;
00426     if (ifd->type!=TIFF_TYPE_SOHRT    && ifd->type!=TIFF_TYPE_SSHORT &&
00427         ifd->type!=TIFF_TYPE_LONG     && ifd->type!=TIFF_TYPE_SLONG  &&
00428         ifd->type!=TIFF_TYPE_RATIONAL && ifd->type!=TIFF_TYPE_SRATIONAL) return 0;
00429     if (offset<0) offset = 0;
00430
00431     unsigned int ret = 0;
00432     int len = get_tiff_type_length(ifd->type);
00433     unsigned char* ptr = NULL;
00434
00435     if (len*ifd->count>4 && ifd->ex_value!=NULL) ptr = (unsigned char*)(ifd->ex_value);
00436     else ptr = (unsigned char*)&(ifd->value);
00437
00438     if (ifd->type==TIFF_TYPE_RATIONAL || ifd->type==TIFF_TYPE_SRATIONAL) len /= 2;
00439
00440     if (len==2) {
00441         if (TIFF_Swap_Flag) ret = swaps(*(unsigned short*)(ptr + offset*2));
00442         else                ret = *(unsigned short*)(ptr + offset*2);
00443     }
00444     else if (len==4) {
00445         if (TIFF_Swap_Flag) ret = swapl(*(unsigned int*)(ptr + offset*4));
00446         else                ret = *(unsigned int*)(ptr + offset*4);
00447     }
00448
00449     return ret;
00450 }

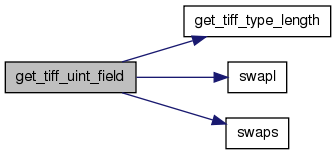

Here is the call graph for this function:

Here is the caller graph for this function:

void print_tiff_ifd ( FILE *  fp,
TIFF_ifd *  ifd,
int  max_values
)

Definition at line 318 of file tiff_tool.c.

References TIFF_ifd::count, print_tiff_ifd_indiv(), and TIFF_ifd::tag.

00319 {
00320     int  i;
00321     if (max_values<0) max_values = 0;
00322
00323     if (ifd->tag==0) {
00324         int num = ifd->count;
00325         ifd++;
00326         for (i=1; i<=num; i++) {
00327             print_tiff_ifd_indiv(fp, ifd, max_values);
00328             ifd++;
00329         }
00330     }
00331     else {
00332         print_tiff_ifd_indiv(fp, ifd, max_values);
00333     }
00334
00335 }

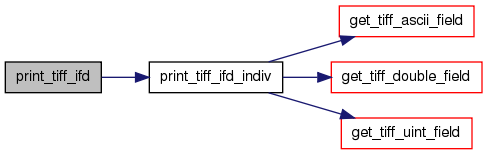

Here is the call graph for this function:

void print_tiff_ifd_indiv ( FILE *  fp,
TIFF_ifd *  ifd,
int  max_values
)

Definition at line 339 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, get_tiff_ascii_field(), get_tiff_double_field(), get_tiff_uint_field(), Min, TIFF_ifd::tag, TIFF_TYPE_ASCII, TIFF_TYPE_DOUBLE, TIFF_TYPE_FLOAT, TIFF_TYPE_LONG, TIFF_TYPE_RATIONAL, TIFF_TYPE_SLONG, TIFF_TYPE_SOHRT, TIFF_TYPE_SRATIONAL, TIFF_TYPE_SSHORT, TIFF_ifd::type, and TIFF_ifd::value.

Referenced by print_tiff_ifd().

00340 {
00341     int  i;
00342     if (max_values<0) max_values = 0;
00343
00344     fprintf(fp, "%5d %2d %d -> ", ifd->tag, ifd->type, ifd->count);
00345
00346     if (ifd->ex_value!=NULL) {
00347         int count = Min((int)ifd->count, max_values);
00348
00349         if (ifd->type==TIFF_TYPE_ASCII) {
00350             fprintf(fp, " %s", get_tiff_ascii_field(ifd, 0));
00351         }
00352         else if (ifd->type==TIFF_TYPE_SOHRT || ifd->type==TIFF_TYPE_SSHORT) {
00353             for (i=0; i<count; i++) fprintf(fp, " %d", get_tiff_uint_field(ifd, i));
00354         }
00355         else if (ifd->type==TIFF_TYPE_LONG || ifd->type==TIFF_TYPE_SLONG) {
00356             for (i=0; i<count; i++) fprintf(fp, " %d", get_tiff_uint_field(ifd, i));
00357         }
00358         else if (ifd->type==TIFF_TYPE_RATIONAL || ifd->type==TIFF_TYPE_SRATIONAL) {
00359             for (i=0; i<count; i++) fprintf(fp, " %d/%d", get_tiff_uint_field(ifd, 2*i), get_tiff_uint_field(ifd, 2*i+1));
00360         }
00361         else if (ifd->type==TIFF_TYPE_FLOAT || ifd->type==TIFF_TYPE_DOUBLE) {
00362             for (i=0; i<count; i++) fprintf(fp, " %f", get_tiff_double_field(ifd, i));
00363         }
00364         else if (count>0) fprintf(fp, " PRINT_TIFF_IFD_INDIV: not supported IFD type => %d", ifd->type);
00365
00366         if (ifd->type!=TIFF_TYPE_ASCII && count<(int)ifd->count && count!=0) fprintf(fp, " .......");
00367     }
00368     else fprintf(fp, " %d", ifd->value);
00369
00370     fprintf(fp, "\n");
00371     fflush(fp);
00372 }

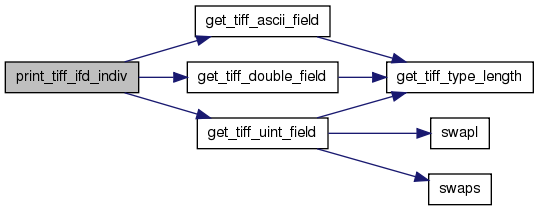

Here is the call graph for this function:

Here is the caller graph for this function:

void proc_tiff_ifd ( TIFF_ifd *  ifd,
unsigned char *  buf
)

Definition at line 153 of file tiff_tool.c.

References TIFF_ifd::count, TIFF_ifd::ex_value, free_MSGraph, get_tiff_type_length(), get_tiff_uint_field(), MSGraph::gp, make_MSGraph(), PRINT_MESG, TIFF_ifd::tag, TIFF_TAG_COLOR, TIFF_TAG_COMP, TIFF_TAG_DEPTH, TIFF_TAG_HEIGHT, TIFF_TAG_STRIP, TIFF_TAG_STRIP_CNT, TIFF_TAG_TILE_BYTE, TIFF_TAG_TILE_HEIGHT, TIFF_TAG_TILE_OFFSET, TIFF_TAG_TILE_WIDTH, TIFF_TAG_WIDTH, TIFF_ifd::type, TIFF_ifd::value, and MSGraph::xs.

Referenced by read_tiff_file().

00154 {
00155     int i, j;
00156     int cnt = ptr->count;
00157     int width=0, height=0, depth=1, bdepth=1, comp=1, color=0;
00158     int tilew=0, tileh=0;
00159
00160     MSGraph vp;
00161     TIFF_ifd* ifd = ptr + 1;
00162     TIFF_ifd* strip_ifd = NULL;
00163
00164     memset(&vp, 0, sizeof(MSGraph));
00165
00166     for (i=1; i<=cnt; i++) {
00167
00168         int offsize = get_tiff_type_length(ifd->type)*ifd->count;
00169         if (offsize>4) {
00170             //PRINT_MESG("Malloc Ex_Value. Tag = %d, Length = %d\n", ifd->tag, offsize);
00171             ifd->ex_value = (void*)malloc(offsize);
00172             memcpy(ifd->ex_value, buf + ifd->value, offsize);
00173         }
00174
00175         // Tag
00176         switch(ifd->tag) {
00177
00178           case TIFF_TAG_WIDTH:
00179             width  = get_tiff_uint_field(ifd, 0);
00180             break;
00181
00182           case TIFF_TAG_HEIGHT:
00183             height = get_tiff_uint_field(ifd, 0);
00184             break;
00185
00186           case TIFF_TAG_DEPTH:
00187             if (ifd->count==1) depth = ifd->value;
00188             else if (ifd->count>=2) {
00189                 for (j=0, depth=0; j<(int)ifd->count; j++) {
00190                     depth += get_tiff_uint_field(ifd, j);
00191                 }
00192             }
00193             bdepth = (depth+7)/8;
00194             break;
00195
00196           case TIFF_TAG_COMP:
00197             comp = get_tiff_uint_field(ifd, 0);
00198             if (comp!=1) {
00199                 //PRINT_MESG("PROC_TIFF_IFD: In this version, I can not processes compressed TIFF imgae!!\n");
00200                 ptr->type = -1;
00201             }
00202             break;
00203
00204           case TIFF_TAG_COLOR:
00205             color = get_tiff_uint_field(ifd, 0);
00206             if (color==3) {
00207                 //PRINT_MESG("PROC_TIFF_IFD: In this version, I can not processes Color Map!!\n");
00208                 ptr->type = -1;
00209             }
00210             break;
00211
00212           // STRIP
00213           case TIFF_TAG_STRIP:
00214             vp = make_MSGraph(width, height, 1, depth);
00215             if (vp.gp!=NULL) {
00216                 if (ifd->count==1) {
00217                     memcpy(vp.gp, buf+ifd->value, width*height*bdepth);
00218                 }
00219                 else {
00220                     strip_ifd = ifd;
00221                 }
00222             }
00223             else {
00224                 ptr->type = -2;
00225             }
00226             break;
00227
00228           case TIFF_TAG_STRIP_CNT:
00229             if (ifd->count>1) {
00230                 unsigned char* img = (unsigned char*)vp.gp;
00231                 for (j=0; j<(int)ifd->count; j++) {
00232                     int size    = get_tiff_uint_field(ifd, j);
00233                     int img_ptr = get_tiff_uint_field(strip_ifd, j);
00234                     memcpy(img, buf+img_ptr, size);
00235                     img += size;
00236                 }
00237             }
00238             break;
00239
00240           // TILE
00241           case TIFF_TAG_TILE_WIDTH:
00242             tilew = get_tiff_uint_field(ifd, 0);
00243             break;
00244
00245           case TIFF_TAG_TILE_HEIGHT:
00246             tileh = get_tiff_uint_field(ifd, 0);
00247             break;
00248
00249           case TIFF_TAG_TILE_OFFSET:
00250             if (tilew>0 && tileh>0) {
00251                 int xnum = (width +tilew-1)/tilew;
00252                 int ynum = (height+tileh-1)/tileh;
00253                 if (vp.gp!=NULL) free_MSGraph(&vp);
00254
00255                 vp = make_MSGraph(tilew*xnum, tileh*ynum, 1, depth);
00256                 if (vp.gp!=NULL) {
00257                     MSGraph mp = make_MSGraph(tilew, tileh, 1, depth);
00258                     int size = tilew*tileh*bdepth;
00259
00260                     for (j=0; j<(int)ifd->count; j++) {             // Block
00261                         int img_ptr = get_tiff_uint_field(ifd, j);
00262                         memcpy(mp.gp, buf+img_ptr, size);
00263
00264                         int k, l, m;
00265                         int ii = j%xnum;
00266                         int jj = j/xnum;
00267                         for (k=0; k<tileh; k++) {
00268                             int kk = k*tilew;
00269                             int yy = (jj*tileh + k)*vp.xs;
00270                             for (l=0; l<tilew; l++) {
00271                                 int ll = (kk + l)*bdepth;
00272                                 int xx = (yy + ii*tilew + l)*bdepth;
00273                                 for (m=0; m<bdepth; m++) {
00274                                     vp.gp[xx+m] = mp.gp[ll+m];
00275                                 }
00276                             }
00277                         }
00278                     }
00279                     free_MSGraph(&mp);
00280                 }
00281                 else {
00282                     ptr->type = -2;
00283                 }
00284             }
00285             break;
00286
00287           case TIFF_TAG_TILE_BYTE:
00288             {
00289                 int block = tilew*tileh*bdepth;
00290                 for (j=0; j<(int)ifd->count; j++) {
00291                     int size = get_tiff_uint_field(ifd, j);
00292                     if (block!=size) {
00293                         PRINT_MESG("PROC_TIFF_IFD: Not match Tile Size %d != %d\n", block, size);
00294                         ptr->type = -1;
00295                     }
00296                 }
00297             }
00298             break;
00299         }
00300
00301         ifd++;
00302     }
00303
00304     if (ptr->type<0) {
00305         free_MSGraph(&vp);
00306     }
00307     else {
00308         if (vp.gp!=NULL) {
00309             ptr->ex_value = (void*)malloc(sizeof(MSGraph));
00310             memcpy(ptr->ex_value, &vp, sizeof(MSGraph));
00311         }
00312     }
00313     return;
00314 }

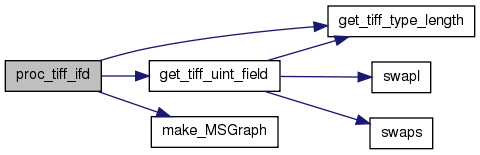

Here is the call graph for this function:

Here is the caller graph for this function:

TIFF_ifd** read_tiff_file ( const char *  fname  )

TIFF_ifd** read_tiff_file(const char* fname)

TIFF形式の画像データを読みこむ．

Parameters:
fname 読み込むファイル名
Returns:
TIFFImage データ

Definition at line 25 of file tiff_tool.c.

References freeNull, get_tiff_ifd(), MAX_IFD_DEM_NUM, proc_tiff_ifd(), and read_file().

00026 {
00027     TIFF_ifd** ptr_ifd = NULL;
00028     unsigned long int size;
00029     int  i;
00030
00031     ptr_ifd = (TIFF_ifd**)malloc((MAX_IFD_DEM_NUM+1)*sizeof(TIFF_ifd*));
00032     if (ptr_ifd==NULL) return NULL;
00033     for (i=0; i<MAX_IFD_DEM_NUM+1; i++) ptr_ifd[i] = NULL;
00034
00035     unsigned char* buf = read_file(fname, &size);
00036     if (size<=0 || buf==NULL) {
00037         free(ptr_ifd);
00038         freeNull(buf);
00039         return NULL;
00040     }
00041
00042     int num = 0;
00043     do {
00044         ptr_ifd[num] = get_tiff_ifd(buf, num+1);
00045         if (ptr_ifd[num]==NULL) break;
00046         num++;
00047     } while(num<MAX_IFD_DEM_NUM && ptr_ifd[num-1]->value!=0);
00048
00049     //if (num==MAX_IFD_DEM_NUM && ptr_ifd[num-1]->value!=0) {
00050     //  PRINT_MESG("READ_TIFF_FILE: included image file number is over %d!!\n", MAX_IFD_DEM_NUM);
00051     //}
00052
00053     for (i=0; i<num; i++) {
00054         proc_tiff_ifd(ptr_ifd[i], buf);
00055     }
00056
00057     freeNull(buf);
00058     return ptr_ifd;
00059 }

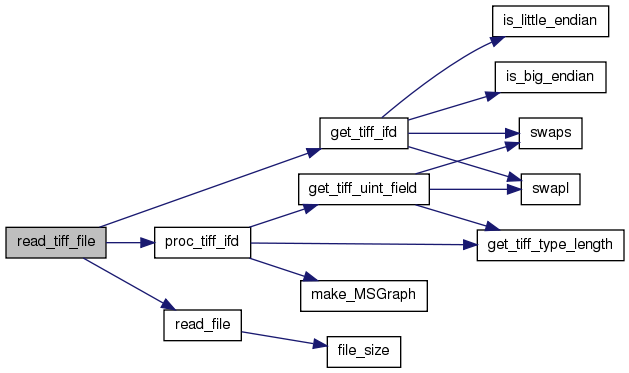

Here is the call graph for this function:

Variable Documentation

int TIFF_Swap_Flag

Definition at line 14 of file tiff_tool.c.

Referenced by get_tiff_ifd(), and get_tiff_uint_field().

Generated on 15 Nov 2023 for JunkBox_Lib by  doxygen 1.6.1
