BrepSolidList Class Reference

#include <BrepLib.h>

List of all members.

Public Member Functions

 BrepSolidList (void)
virtual ~BrepSolidList (void)
void init (void)
void clear (void)
void free (void)
int addObject (MeshObjectData *mesh)
int addSolid (MeshObjectData *mesh)
void outputFile (const char *fn, const char *path=NULL, bool binfile=true)
BREP_SOLIDgetMerge (CVCounter *counter=NULL)

Public Attributes

BREP_SOLID_LIST solid_list

Detailed Description

Definition at line 30 of file BrepLib.h.


Constructor & Destructor Documentation

BrepSolidList ( void   )  [inline]

Definition at line 33 of file BrepLib.h.

References BrepSolidList::init().

00033 { init();}

Here is the call graph for this function:

~BrepSolidList ( void   )  [virtual]

Definition at line 19 of file BrepLib.cpp.

References DEBUG_INFO.

00020 {
00021     DEBUG_INFO("DESTRUCTOR: BrepSolidList");
00022 }


Member Function Documentation

int addObject ( MeshObjectData mesh  )  [inline]

Definition at line 45 of file BrepLib.h.

References BrepSolidList::addSolid().

00045 { return addSolid(mesh);}   // 有効なファセットの数を返す

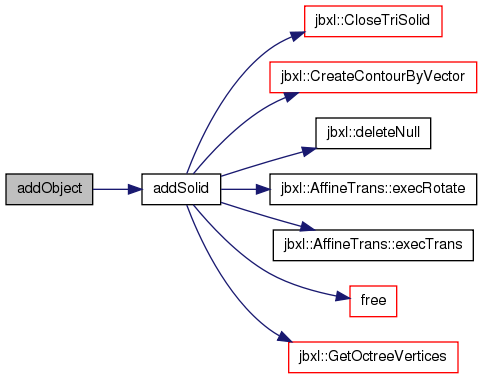

Here is the call graph for this function:

int addSolid ( MeshObjectData mesh  )

Definition at line 60 of file BrepLib.cpp.

References MeshObjectData::affine_trans, jbxl::BREP_FACET, jbxl::BREP_SHELL, jbxl::BREP_SOLID, jbxl::CloseTriSolid(), BREP_SOLID::contours, jbxl::CreateContourByVector(), MeshObjectNode::data_index, jbxl::deleteNull(), AffineTrans< T >::execRotate(), AffineTrans< T >::execTrans(), BREP_SOLID::facetno, BrepSolidList::free(), jbxl::GetOctreeVertices(), MeshObjectNode::next, MeshObjectData::nodelist, BREP_VERTEX::normal, MeshObjectNode::normal_value, MeshObjectNode::num_index, BREP_SOLID::octree, BREP_VERTEX::point, BrepSolidList::solid_list, and MeshObjectNode::vertex_value.

Referenced by BrepSolidList::addObject().

00061 {
00062     if (mesh==NULL) return 0;
00063
00064     Vector<double> vertex[3];
00065     Vector<double> normal[3];
00066
00067     BREP_SOLID* solid = new BREP_SOLID();
00068     BREP_SHELL* shell = new BREP_SHELL(solid);
00069
00070     MeshObjectNode* node = mesh->nodelist;
00071
00072     while (node!=NULL) {
00073         //
00074         for (int num=0; num<node->num_index-2; num+=3) {
00075             BREP_FACET* facet = new BREP_FACET(shell);
00076             //
00077             int idx0 = node->data_index[num];
00078             int idx1 = node->data_index[num+1];
00079             int idx2 = node->data_index[num+2];
00080
00081             vertex[0] = node->vertex_value[idx0];
00082             vertex[1] = node->vertex_value[idx1];
00083             vertex[2] = node->vertex_value[idx2];
00084             normal[0] = node->normal_value[idx0];
00085             normal[1] = node->normal_value[idx1];
00086             normal[2] = node->normal_value[idx2];
00087
00088             BREP_CONTOUR* contour = CreateContourByVector(facet, vertex, normal, NULL, false);
00089             if (contour!=NULL) {
00090                 solid->contours.push_back(contour);
00091             }
00092             else {
00093                 deleteNull(facet);
00094             }
00095         }
00096         node = node->next;
00097     }
00098
00099     int fno = CloseTriSolid(solid, false, NULL);
00100     solid->facetno = fno;
00101
00102     //
00103     if (mesh->affine_trans!=NULL) {
00104         long int  vnum;
00105         BREP_VERTEX** vertex_data = GetOctreeVertices(solid->octree, &vnum);
00106
00107         for (long int i=0; i<vnum; i++) {
00108             vertex_data[i]->point  = mesh->affine_trans->execTrans (vertex_data[i]->point);
00109             vertex_data[i]->normal = mesh->affine_trans->execRotate(vertex_data[i]->normal);
00110         }
00111         ::free(vertex_data);
00112     }
00113
00114     solid_list.push_back(solid);
00115
00116     return fno;
00117 }

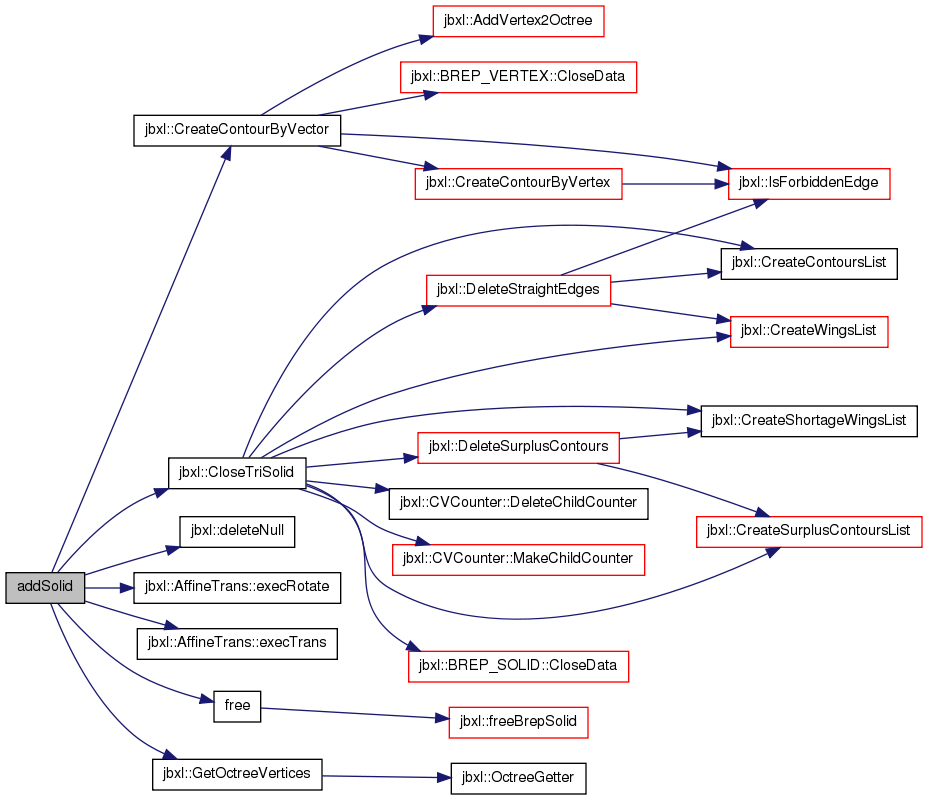

Here is the call graph for this function:

Here is the caller graph for this function:

void clear ( void   )

Definition at line 43 of file BrepLib.cpp.

References BrepSolidList::solid_list.

00044 {
00045     BREP_SOLID_LIST::iterator isolid;
00046     for (isolid=solid_list.begin(); isolid!=solid_list.end(); isolid++) (*isolid)->FreeData();
00047
00048     solid_list.clear();
00049 }

void free ( void   )

Definition at line 33 of file BrepLib.cpp.

References jbxl::freeBrepSolid(), and BrepSolidList::solid_list.

Referenced by BrepSolidList::addSolid(), jbxl::freeBrepSolidList(), and BrepSolidList::outputFile().

00034 {
00035     BREP_SOLID_LIST::iterator isolid;
00036     for (isolid=solid_list.begin(); isolid!=solid_list.end(); isolid++) freeBrepSolid(*isolid);
00037
00038     solid_list.clear();
00039 }

Here is the call graph for this function:

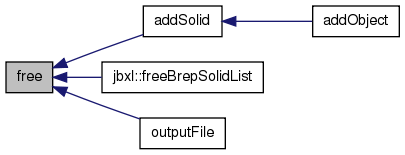

Here is the caller graph for this function:

BREP_SOLID * getMerge ( CVCounter counter = NULL  )

Definition at line 156 of file BrepLib.cpp.

References jbxl::BREP_FACET, jbxl::BREP_SHELL, jbxl::BREP_SOLID, jbxl::CloseTriSolid(), BREP_SOLID::contours, jbxl::CreateContourByVector(), jbxl::deleteNull(), BREP_SOLID::facetno, CVCounter::GetUsableCounter(), BREP_WING::next, BREP_VERTEX::normal, BREP_VERTEX::point, BrepSolidList::solid_list, CVCounter::Start(), CVCounter::StepIt(), and BREP_WING::vertex.

00157 {
00158     BREP_SOLID* solid  = new BREP_SOLID();
00159     BREP_SHELL* shell  = new BREP_SHELL(solid);
00160
00161     // Counter
00162     if (counter!=NULL) {
00163         int maxnum = 0;
00164         BREP_SOLID_LIST::iterator isolid;
00165         for (isolid=solid_list.begin(); isolid!=solid_list.end(); isolid++){
00166             BREP_CONTOUR_LIST::iterator icon;
00167             for (icon=(*isolid)->contours.begin(); icon!=(*isolid)->contours.end(); icon++){
00168                 maxnum++;
00169             }
00170         }
00171         counter->GetUsableCounter();
00172         counter->Start(maxnum);
00173     }
00174
00175     BREP_SOLID_LIST::iterator isolid;
00176     for (isolid=solid_list.begin(); isolid!=solid_list.end(); isolid++){
00177         //
00178         BREP_CONTOUR_LIST::iterator icon;
00179         for (icon=(*isolid)->contours.begin(); icon!=(*isolid)->contours.end(); icon++){
00180             Vector<double> vect[3];
00181             Vector<double> norm[3];
00182             //
00183             BREP_WING* wing = (*icon)->wing;
00184             for (int i=0; i<3; i++) {
00185                 vect[i] = wing->vertex->point;
00186                 norm[i] = wing->vertex->normal;
00187                 wing = wing->next;
00188             }
00189             //
00190             BREP_FACET* facet = new BREP_FACET(shell);
00191             BREP_CONTOUR* contour = CreateContourByVector(facet, vect, norm, NULL, false);
00192             if (contour!=NULL) solid->contours.push_back(contour);
00193             else  deleteNull(facet);
00194             //
00195             if (counter!=NULL) counter->StepIt();
00196         }
00197     }
00198
00199     int fno = CloseTriSolid(solid, false, NULL);
00200     solid->facetno = fno;
00201
00202     return solid;
00203 }

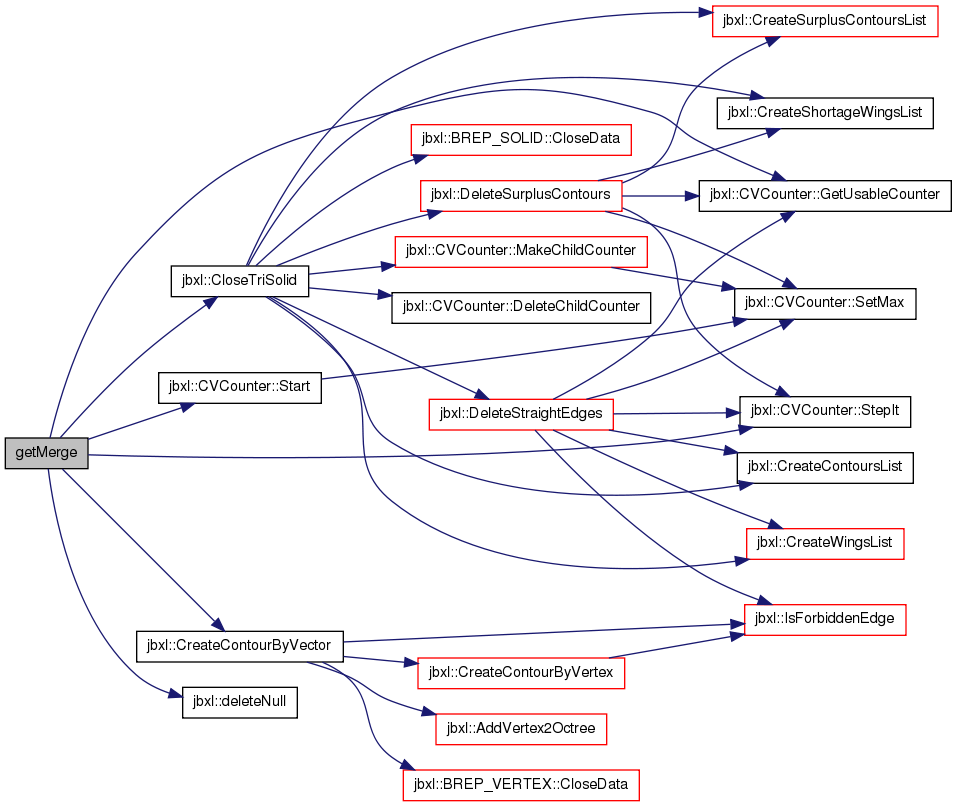

Here is the call graph for this function:

void init ( void   )

Definition at line 26 of file BrepLib.cpp.

References BrepSolidList::solid_list.

Referenced by BrepSolidList::BrepSolidList().

00027 {
00028     solid_list.clear();
00029 }

Here is the caller graph for this function:

void outputFile ( const char *  fn,
const char *  path = NULL,
bool  binfile = true
)

Definition at line 121 of file BrepLib.cpp.

References Buffer::buf, cat_Buffer(), change_file_extension_Buffer(), BrepSolidList::free(), free_Buffer(), get_file_name(), make_Buffer_bystr, pack_head_tail_char(), rewrite_sBuffer_bystr(), BrepSolidList::solid_list, jbxl::WriteSTLFileA(), and jbxl::WriteSTLFileB().

00122 {
00123     char* packname = pack_head_tail_char(get_file_name(fname), ' ');
00124     Buffer file_name = make_Buffer_bystr(packname);
00125     ::free(packname);
00126
00127     rewrite_sBuffer_bystr(&file_name, ":", "_");
00128     rewrite_sBuffer_bystr(&file_name, "*", "_");
00129     rewrite_sBuffer_bystr(&file_name, "?", "_");
00130     rewrite_sBuffer_bystr(&file_name, "\"", "_");
00131     rewrite_sBuffer_bystr(&file_name, "<", "_");
00132     rewrite_sBuffer_bystr(&file_name, ">", "_");
00133     if (file_name.buf[0]=='.') file_name.buf[0] = '_';
00134     //
00135     Buffer out_path;
00136     if (path==NULL) out_path = make_Buffer_bystr("./");
00137     else            out_path = make_Buffer_bystr(path);
00138     cat_Buffer(&file_name, &out_path);
00139     change_file_extension_Buffer(&out_path, ".stl");
00140     //
00141     if (binfile) {
00142         WriteSTLFileB((char*)out_path.buf, solid_list);
00143     }
00144     else {
00145         WriteSTLFileA((char*)out_path.buf, solid_list);
00146     }
00147
00148     free_Buffer(&file_name);
00149     free_Buffer(&out_path);
00150
00151     return;
00152 }

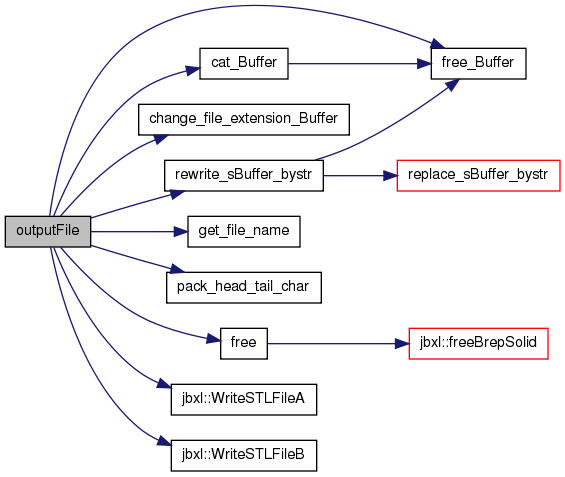

Here is the call graph for this function:


Member Data Documentation


The documentation for this class was generated from the following files:
