CBaseFrameTool Class Reference

#include <NiJointsTool.h>

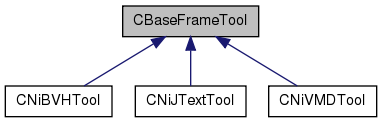

Inheritance diagram for CBaseFrameTool:

Collaboration diagram for CBaseFrameTool:

Public Member Functions
	CBaseFrameTool (void)
virtual	~CBaseFrameTool (void)
virtual unsigned int	getFramesNumber (void)
virtual int	getJointsNumber (void)
virtual NiFrameData *	getFramesData (void)
virtual NiJointData *	getJointsData (int frmnum, int fps)
virtual int	getPlayBackTime (void)
virtual int	getPlayBackFPS (void)
virtual BOOL	readFile (FILE *fp)
virtual BOOL	writeFile (FILE *fp)
Protected Member Functions
void	init_data (void)
void	free_data (void)
void	clear_data (void)
void	clearJointsData (int jnum)
void	clearVectorData (int jnum)
Protected Attributes
unsigned int	frames_num
int	joints_num
int	start_time
int	stop_time
int	exec_time
NiFrameData *	framesData
NiJointData *	jointsData
Vector< double > *	posVect
Quaternion< double > *	rotQuat

Detailed Description

Definition at line 279 of file NiJointsTool.h.

Constructor & Destructor Documentation

CBaseFrameTool ( void )

Definition at line 1078 of file NiJointsTool.cpp.

References CBaseFrameTool::init_data().

01079 {
01080     init_data();
01081 }

Here is the call graph for this function:

~CBaseFrameTool ( void ) [virtual]

Definition at line 1085 of file NiJointsTool.cpp.

References CBaseFrameTool::free_data().

01086 {
01087     DEBUG_INFO("DESTRUCTOR: CBaseFrameTool\n");
01088
01089     free_data();
01090 }

Here is the call graph for this function:

Member Function Documentation

void clear_data ( void ) [protected]

Reimplemented in CNiBVHTool, CNiJTextTool, and CNiVMDTool.

Definition at line 1113 of file NiJointsTool.cpp.

References CBaseFrameTool::exec_time, CBaseFrameTool::frames_num, CBaseFrameTool::joints_num, CBaseFrameTool::start_time, and CBaseFrameTool::stop_time.

Referenced by CBaseFrameTool::free_data(), and CBaseFrameTool::init_data().

01114 {
01115     frames_num = 0;
01116     joints_num = 0;
01117
01118     start_time = 0;
01119     stop_time  = 0;
01120     exec_time  = 0;
01121 }

Here is the caller graph for this function:

void clearJointsData ( int jnum ) [protected]

Definition at line 1140 of file NiJointsTool.cpp.

References NiJointData::index, NiJointData::joint, CBaseFrameTool::jointsData, NiJointData::quat, and NiJointData::vect.

Referenced by CNiVMDTool::getJointsData(), CNiJTextTool::getJointsData(), CNiBVHTool::getJointsData(), CNiVMDTool::readFile(), CNiJTextTool::readFile(), and CNiBVHTool::readFile().

01141 {
01142     if (jointsData!=NULL) {
01143         for (int j=0; j<jnum; j++) {
01144             jointsData[j].index = -1;
01145             jointsData[j].joint = -1;
01146             jointsData[j].vect.init(-1.0);
01147             jointsData[j].quat.init(-1.0);
01148         }
01149     }
01150 }

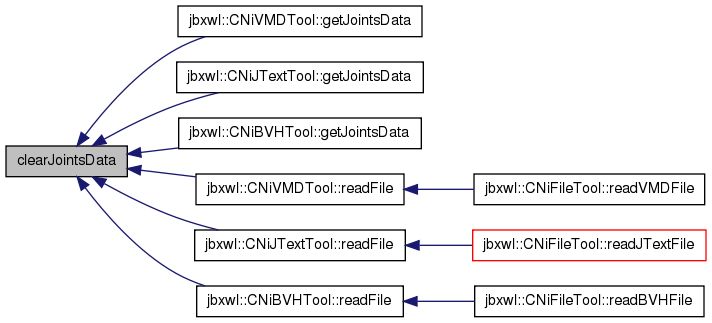

Here is the caller graph for this function:

void clearVectorData ( int jnum ) [protected]

Definition at line 1154 of file NiJointsTool.cpp.

References CBaseFrameTool::posVect, and CBaseFrameTool::rotQuat.

Referenced by CNiVMDTool::calcJointRotation(), CNiVMDTool::readFile(), and CNiJTextTool::readFile().

01155 {
01156     if (posVect!=NULL && rotQuat!=NULL) {
01157         for (int j=0; j<jnum; j++) {
01158             posVect[j].init(-1.0);
01159             rotQuat[j].init(-1.0);
01160         }
01161     }
01162 }

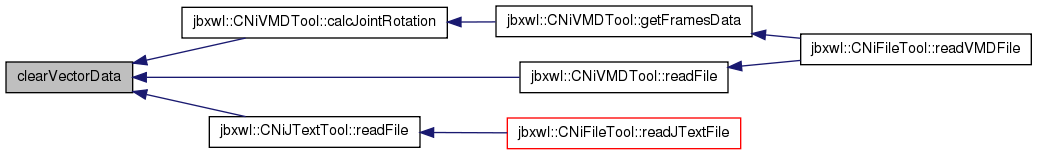

Here is the caller graph for this function:

void free_data ( void ) [protected]

Reimplemented in CNiBVHTool, CNiJTextTool, and CNiVMDTool.

Definition at line 1094 of file NiJointsTool.cpp.

References CBaseFrameTool::clear_data(), CBaseFrameTool::frames_num, CBaseFrameTool::framesData, jbxwl::freeFramesData(), CBaseFrameTool::jointsData, CBaseFrameTool::posVect, and CBaseFrameTool::rotQuat.

Referenced by CBaseFrameTool::~CBaseFrameTool().

01095 {
01096     if (framesData!=NULL) freeFramesData(framesData, frames_num);
01097     if (jointsData!=NULL) ::free(jointsData);
01098
01099     if (posVect!=NULL) ::free(posVect);
01100     if (rotQuat!=NULL) ::free(rotQuat);
01101
01102     framesData = NULL;
01103     jointsData = NULL;
01104
01105     posVect    = NULL;
01106     rotQuat    = NULL;
01107
01108     clear_data();
01109 }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual NiFrameData* getFramesData ( void ) [inline, virtual]

Reimplemented in CNiVMDTool.

Definition at line 289 of file NiJointsTool.h.

References CBaseFrameTool::framesData.

Referenced by CNiFileTool::readBVHFile(), and CNiFileTool::readJTextFile().

00289 { return framesData;}

Here is the caller graph for this function:

virtual unsigned int getFramesNumber ( void ) [inline, virtual]

Reimplemented in CNiVMDTool.

Definition at line 286 of file NiJointsTool.h.

References CBaseFrameTool::frames_num.

Referenced by CNiFileTool::readBVHFile(), CNiFileTool::readJTextFile(), and CNiFileTool::writeBVHFile().

00286 { return frames_num;}

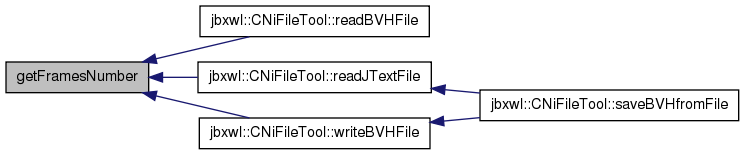

Here is the caller graph for this function:

virtual NiJointData* getJointsData	(	int	frmnum,
		int	fps
	)			`[inline, virtual]`

Reimplemented in CNiBVHTool, CNiJTextTool, and CNiVMDTool.

Definition at line 290 of file NiJointsTool.h.

References CBaseFrameTool::jointsData.

Referenced by CNiFileTool::getJointsDataSeq(), and CNiFileTool::writeBVHFile().

00290 { return jointsData;}

Here is the caller graph for this function:

virtual int getJointsNumber ( void ) [inline, virtual]

Definition at line 287 of file NiJointsTool.h.

References CBaseFrameTool::joints_num.

Referenced by CNiFileTool::writeBVHFile().

00287 { return joints_num;}

Here is the caller graph for this function:

virtual int getPlayBackFPS ( void ) [inline, virtual]

Reimplemented in CNiBVHTool.

Definition at line 293 of file NiJointsTool.h.

Referenced by CNiFileTool::readJTextFile(), and CNiFileTool::readVMDFile().

00293 { return 30;}

Here is the caller graph for this function:

virtual int getPlayBackTime ( void ) [inline, virtual]

Definition at line 292 of file NiJointsTool.h.

References CBaseFrameTool::exec_time.

Referenced by CNiFileTool::writeBVHFile().

00292 { return exec_time;}

Here is the caller graph for this function:

void init_data ( void ) [protected]

Definition at line 1125 of file NiJointsTool.cpp.

References CBaseFrameTool::clear_data(), CBaseFrameTool::framesData, CBaseFrameTool::jointsData, CBaseFrameTool::posVect, and CBaseFrameTool::rotQuat.

Referenced by CBaseFrameTool::CBaseFrameTool().

01126 {
01127     framesData = NULL;
01128     jointsData = NULL;
01129
01130     posVect    = NULL;
01131     rotQuat    = NULL;
01132
01133     clear_data();
01134 }
