CExDocument Class Reference

#include <ExDocument.h>

Inheritance diagram for CExDocument:

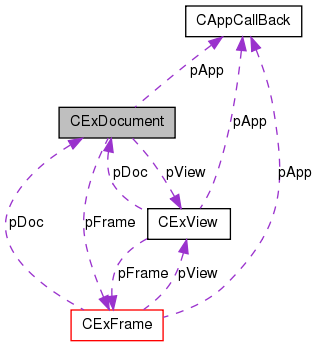

Collaboration diagram for CExDocument:

Public Member Functions
CExView *	GetView ()
virtual BOOL	ReadDataFile (LPCTSTR)
virtual BOOL	WriteDataFile (LPCTSTR)
virtual BOOL	MakeViewData ()
virtual void	Serialize (CArchive &ar)
virtual BOOL	OnNewDocument ()
virtual BOOL	OnOpenDocument (LPCTSTR lpszPathName)
virtual	~CExDocument ()
virtual void	AssertValid () const
virtual void	Dump (CDumpContext &dc) const
Public Attributes
CmnHead	infHead
ExMSGraph< sWord >	msGraph
ExCmnHead	cmnHead
CExView *	pView
CExFrame *	pFrame
CAppCallBack *	pApp
void *	anyData
CString	Title
CString	preTitle
CString	pstTitle
int	vMax
int	vMin
int	cMax
int	cMin
int	base
int	colorMode
int	startNo
int	endNo
BOOL	multiSliceData
BOOL	hasReadData
BOOL	hasViewData
BOOL	ctrlCntrst
BOOL	notFreeMSGraph
BOOL	notFreeCmnHead
Protected Member Functions
	CExDocument ()

Detailed Description

Definition at line 43 of file ExDocument.h.

Constructor & Destructor Documentation

CExDocument ( ) [protected]

Definition at line 25 of file ExDocument.cpp.

00027 00028 00029 00030 00031 00032 00033 00034 00035 00036 00037 00038 00039 00040 00041 00042 00043 00044 00045 00046 00047 00048 00049 00050 00051 00052 00053 00054 00055 00056 00057 }

class="fragment">00026 { //DEBUG_WARN("CExDocument::CExDocument Start\n"); init_CmnHead(&infHead); msGraph.init(); cmnHead.init(); hasReadData = FALSE; // データを正常に読み込み，保持しているか． hasViewData = FALSE; // 読み込んだデータから表示用データを作成したか． ctrlCntrst = FALSE; // 表示用データ作成時に（画素値が255以下でも）強制的にコントラストを調整を行う． multiSliceData = FALSE; // TRUE ならマルチスライス読み込みモード notFreeMSGraph = FALSE; // メモリ管理無しの場合，このオブジェクトが msGraph のメモリを開放するのは禁止． notFreeCmnHead = FALSE; // メモリ管理無しの場合，このオブジェクトが cmnHead のメモリを開放するのは禁止． pView = NULL; pFrame = NULL; pApp = NULL; anyData = NULL; Title = _T(""); preTitle = _T(""); pstTitle = _T(""); startNo = 0; endNo = 0; vMax = 0; vMin = 0; colorMode = GRAPH_COLOR_MONO; base = 0; //DEBUG_WARN("CExDocument::CExDocument End\n");

~CExDocument ( ) [virtual]

Definition at line 61 of file ExDocument.cpp.

References CExDocument::cmnHead, CAppCallBack::DocumentDestructor(), CExDocument::msGraph, CExDocument::notFreeCmnHead, CExDocument::notFreeMSGraph, CExDocument::pApp, CExFrame::pDoc, CExView::pDoc, CExDocument::pFrame, and CExDocument::pView.

00062 {
00063     DEBUG_INFO("DESTRUCTOR: CExDocument\n");
00064
00065     if (pApp!=NULL) pApp->DocumentDestructor(this);         // 上位アプリケーションに通知
00066
00067     if (notFreeCmnHead) cmnHead.mfree();
00068     else                cmnHead.free();
00069     if (notFreeMSGraph) msGraph.mfree();
00070     else                msGraph.free();
00071
00072     if (!isNull(pView))  pView->pDoc  = NULL;
00073     if (!isNull(pFrame)) pFrame->pDoc = NULL;
00074     pView  = NULL;
00075     pFrame = NULL;
00076 }

Here is the call graph for this function:

Member Function Documentation

void AssertValid ( ) const [virtual]

Reimplemented in CDxGraphDoc, CRwGRDoc, and CvThumbNailDoc.

Definition at line 92 of file ExDocument.cpp.

00093 {
00094     CDocument::AssertValid();
00095 }

void Dump ( CDumpContext & dc ) const [virtual]

Reimplemented in CDxGraphDoc, CRwGRDoc, and CvThumbNailDoc.

Definition at line 99 of file ExDocument.cpp.

00100 {
00101     CDocument::Dump(dc);
00102 }

CExView * GetView ( )

Definition at line 159 of file ExDocument.cpp.

References CExDocument::pView.

Referenced by jbxwl::CreateDocFrmView().

00160 {
00161     if (pView==NULL) {
00162         POSITION pos = GetFirstViewPosition();
00163         while (pos!=NULL) {
00164             CExView* pview = (CExView*)GetNextView(pos);
00165             if (this==pview->GetDocument()) return pview;
00166         }
00167         return NULL;
00168     }
00169     return pView;
00170 }

Here is the caller graph for this function:

BOOL MakeViewData ( ) [virtual]

Reimplemented in CDxGraphDoc, and CRwGRDoc.

Definition at line 190 of file ExDocument.cpp.

Referenced by CExDocument::OnNewDocument(), and CExDocument::OnOpenDocument().

00191 {
00192     return TRUE;
00193 }

Here is the caller graph for this function:

BOOL OnNewDocument ( ) [virtual]

Definition at line 128 of file ExDocument.cpp.

References CExDocument::hasReadData, CExDocument::hasViewData, and CExDocument::MakeViewData().

Referenced by jbxwl::InitialDocView().

00129 {
00130     //DEBUG_INFO("CExDocument::OnNewDocument(): START\n");
00131
00132     if (!hasReadData) return FALSE;
00133
00134     if (!hasViewData) hasViewData = MakeViewData();
00135     if (!hasViewData) return FALSE;
00136
00137     //DEBUG_INFO("CExDocument::OnNewDocument(): END\n");
00138     return  TRUE;
00139 }

Here is the call graph for this function:

Here is the caller graph for this function:

BOOL OnOpenDocument ( LPCTSTR lpszPathName ) [virtual]

Definition at line 143 of file ExDocument.cpp.

References CExDocument::hasReadData, CExDocument::hasViewData, CExDocument::MakeViewData(), and CExDocument::ReadDataFile().

Referenced by jbxwl::InitialDocView().

00144 {
00145     //DEBUG_INFO("CExDocument::OnOpenDocument(): START\n");
00146
00147     if (!hasReadData) hasReadData = ReadDataFile(lpszPathName);
00148     if (!hasReadData) return FALSE;
00149
00150     if (!hasViewData) hasViewData = MakeViewData();
00151     if (!hasViewData) return FALSE;
00152
00153     //DEBUG_INFO("CExDocument::OnOpenDocument(): END\n");
00154     return TRUE;
00155 }

Here is the call graph for this function:

Here is the caller graph for this function:

BOOL ReadDataFile ( LPCTSTR str ) [virtual]

機能：画像データを読み込む．引数：ファイル名戻値： TRUE: 成功，FALSE: 失敗説明：読み込んだグラフィックデータ(msGraphメンバ)

Reimplemented in CDxGraphDoc, and CRwGRDoc.

Definition at line 180 of file ExDocument.cpp.

Referenced by CExDocument::OnOpenDocument().

00181 {
00182     return  TRUE;
00183 }

Here is the caller graph for this function:

void Serialize ( CArchive & ar ) [virtual]

Reimplemented in CDxGraphDoc, CRwGRDoc, and CvThumbNailDoc.

Definition at line 110 of file ExDocument.cpp.

00111 {
00112     if (ar.IsStoring())
00113     {
00114         // TODO: この位置に保存用のコードを追加してください
00115     }
00116     else
00117     {
00118         // TODO: この位置に読み込み用のコードを追加してください
00119     }
00120 }
