Usage anchor.png

Page Top

Simplest Conversion (First Time) anchor.png

  1. Open OAR File.
    1. Select "File" menu -> "Open OAR File", and select OAR file. (ex. ABC.oar)
  2. OAR file is extracted.
    1. OAR folder is created with prefix "OAR_" at same folder as the OAR file. (ex. OAR_ABC)
  3. Information dialog of OAR file is popped up.
    1. "Convert Data" sub menu becomes active automatically.
  4. Convert OAR files
    1. Select "File" menu -> "Convert Data"
    2. Conversion starts and DAE folder is created with prefix "DAE_" at same folder as the OAR folder. (ex. DAE_ABC)
Page Top

If you have already extracted OAR folder anchor.png

  1. Open OAR Folder.
    1. Select "File" menu -> "Open OAR Folder", and select OAR folder. (ex. OAR_ABC)
  2. or Open archive.xml file in extracted OAR folder.
    1. Select "File" menu -> "Open OAR File", and select archive.xml. (ex. OAR_ABC\archive.xml)
  3. Information dialog of OAR file is popped up.
    1. "Convert Data" sub menu becomes active.
  4. Convert OAR file
    1. Select "File" menu -> "Convert Data"
    2. Conversion starts and DAE folder is created with prefix "DAE_" at same folder as the OAR folder. (ex. DAE_ABC)

Page Top

to Unity anchor.png

Page Top

【Important】 forUnity3D\Editor\SelectOARShader.cs anchor.png

  • Before drag and drop converted dae folder to the project view of Unity, please drag and drop to Unity3D\Editor folder to the project view first.

Page Top

Menu Bar anchor.png

Page Top

File anchor.png

File.png, SIZE:200x153(4.4KB)

Page Top
Open OAR File anchor.png
  • Select OAR file or archive.xml file in extracted OAR folder.
  • When OAR file is selected, OAR file is extracted at the same folder as the OAR file and with "OAR_"(default) prefix folder name.
  • If OAR file is read correctoly, "Information of OAR" Dialog is poped up and OAR path displayed at status line.
Page Top
Open OAR Folder anchor.png
  • Select extracted OAR folder.
  • If OAR file is read correctoly, "Information of OAR" Dialog is popped up and OAR path displayed at status line.
Page Top
Convert Data anchor.png
  • Convert OAR files to DAE/STL files.
  • DAE folder with prefix "DAE_"(default) is created at the same folder as the OAR file/folder.
  • STL folder with prefix "STL_"(default) is created at the same folder as the OAR file/folder.
Page Top
Exit anchor.png
  • Exit from application.

Page Top

Tools anchor.png

Tools.png, SIZE:173x103(3.2KB)

Page Top
Log Window anchor.png
  • Show Log Window
Page Top
Objects List anchor.png
  • Show Objects List Dialog
Page Top
Settings anchor.png
  • Show Settings Dialog

Page Top

Help anchor.png

Page Top

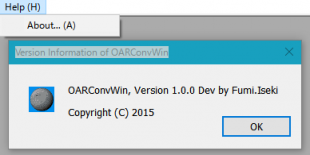

About anchor.png
  • Show Information Dialog of this application

Help.png, SIZE:388x195(8.4KB)


Page Top

Child Windows and Dialog Windows anchor.png

Page Top

Information of OAR Dialog anchor.png

Info.png, SIZE:275x218(4.9KB)

  • Information of OAR (Region).

Page Top

Settings Dialog anchor.png

Setting.png, SIZE:256x563(11.0KB)

Page Top
Start Num anchor.png
  • Number of objects to start the conversion.
  • 0 or less is specified, it is considered 1.
Page Top
Stop Num anchor.png
  • Number of objects to stop the conversion.
  • -1 means infinity.
Page Top
DAE anchor.png
  • When "File"-> "Convert Data" is selected, DAE files are outputed.
Page Top
STL anchor.png
  • When "File"-> "Convert Data" is selected, STL files are outputed.
Page Top
Output of Terrain Data anchor.png
  • If checked, Terrain data is converted, too.
Page Top
Terrain Texture Scale anchor.png
  • Repeat factor of Terrain Image.
  • Usually 7 is used at SL/OS Viewer.
Page Top
Debug Mode anchor.png
  • Debug information are displayed at Log Window
Page Top
Shift anchor.png
  • Specify position shift of objects
Page Top
Folder anchor.png
  • Specify prefix names of OAR, DAE and STL folders

Page Top

Log Window anchor.png

Log.png, SIZE:432x271(5.6KB)

  • Display Log Messages
  • Floppy Icon
    • Save Log Messages
  • Copy Icon
    • Copy selected area to cripboard.
  • Eraser Icon
    • Clear Log

Page Top

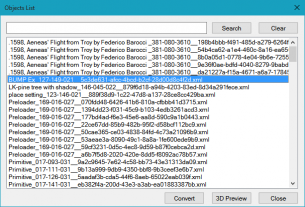

Objects List Dialog anchor.png

List.png, SIZE:613x415(41.5KB)

  • Display name list of read objects.
  • While this Dialog is displayed, File Menu is disabled.
  • Double Click a object name
    • Show Preview Shape Window
  • Select some object names and click "Convert" button
    • Selected objects are converted.
  • Select some object names and click "3D Preview" button
    • Selected objects are displayed on Preview Shape Window.
    • At most 5 windows are displayed at a once.

Page Top

Preview Shape Window anchor.png

Preview.png, SIZE:319x366(10.7KB)

  • Display a preview a shape of object using BREP.
  • Texture is not displayed. This is a Preview.
  • Wire Icon
    • Display wire frame.
  • Solid Icon
    • Display planes of Solid.
    • Illegal surface is displayed as Red Plane.
  • Question Icon
    • Display solid (BREP) information of this object.
  • Floppy + "D" Icon
    • Save as DAE file.
  • Floppy + "S" Icon
    • Save as STL file.
