CDxMGRView Class Reference

#include <DxMGRView.h>

Inheritance diagram for CDxMGRView:

Collaboration diagram for CDxMGRView:

Public Member Functions
void	MakeSetTitle ()
virtual void	InitObject (void)
virtual void	ExecRender (void)
virtual BOOL	SetNewSurface (int ovsbpos=0)
virtual void	OnInitialUpdate ()
Public Attributes
RECT	renderRect
Protected Member Functions
	CDxMGRView ()
virtual	~CDxMGRView ()
virtual void	AssertValid () const
virtual void	Dump (CDumpContext &dc) const

Detailed Description

Definition at line 23 of file DxMGRView.h.

Constructor & Destructor Documentation

CDxMGRView ( ) [protected]

Definition at line 28 of file DxMGRView.cpp.

References VIEW_8_MAX.

00029 {
00030     cnstXYRate = true;
00031
00032     renderRect.left   = 0;
00033     renderRect.top    = 0;
00034     renderRect.right  = 0;
00035     renderRect.bottom = 0;
00036
00037     cMax = VIEW_8_MAX;
00038     cMin = 0;
00039
00040     vSBntch = 1;            // スクロールピッチ
00041 }

~CDxMGRView ( ) [protected, virtual]

Definition at line 45 of file DxMGRView.cpp.

00046 {
00047
00048 }

Member Function Documentation

void AssertValid ( ) const [protected, virtual]

Reimplemented from CExView.

Definition at line 75 of file DxMGRView.cpp.

00076 {
00077     CDxBaseView::AssertValid();
00078 }

void Dump ( CDumpContext & dc ) const [protected, virtual]

Reimplemented from CExView.

Definition at line 81 of file DxMGRView.cpp.

00082 {
00083     CDxBaseView::Dump(dc);
00084 }

void ExecRender ( void ) [virtual]

Reimplemented from CDxBaseView.

Definition at line 582 of file DxMGRView.cpp.

References CDxBaseView::d3dParam, IDS_STR_FAIL_CLR_WND, IDS_STR_FAIL_RESTR_DX9DEV, IDS_STR_FAIL_TRNS_BAKBUF, CDxBaseView::lpBackBuffer, CDxBaseView::lpD3DDevice, CDxBaseView::lpSurface, CDxMGRView::MakeSetTitle(), CExView::pFrame, and jbxwl::ResetDx9Device().

00584 00585 00586 00587 00588 00589 00590 00591 00592 00593 00594     } 00595 00596 00597 00598 00599 00600 00601 00602     } 00603 00604 00605 00606 00607 00608 00609 00610 00611 00612 00613         } 00614 00615     } 00616 }

class="fragment">00583 { HRESULT hr; MakeSetTitle(); hr = lpD3DDevice->Clear(0, NULL, D3DCLEAR_TARGET|D3DCLEAR_ZBUFFER, D3DCOLOR_XRGB(0,0,255), 1.0f, 0); if (FAILED(hr)) { CString mesg; mesg.LoadString(IDS_STR_FAIL_CLR_WND); MessageBox(_T("CDxMGRView::ExecRender():\n\n") + mesg); return; hr = lpD3DDevice->StretchRect(lpSurface, NULL, lpBackBuffer, NULL, D3DTEXF_NONE); if (FAILED(hr)) { CString mesg; mesg.LoadString(IDS_STR_FAIL_TRNS_BAKBUF); MessageBox(_T("CDxMGRView::ExecRender():\n\n") + mesg); return; hr = lpD3DDevice->Present(NULL, NULL, NULL, NULL); if (FAILED(hr)) { hr = ResetDx9Device(lpD3DDevice, &d3dParam, this); if (FAILED(hr)) { CString mesg; mesg.LoadString(IDS_STR_FAIL_RESTR_DX9DEV); MessageBox(_T("CDxMGRView::ExecRender():\n\n") + mesg); pFrame->SendMessage(WM_CLOSE); //GetParentFrame()->DestroyWindow(); else ExecRender();

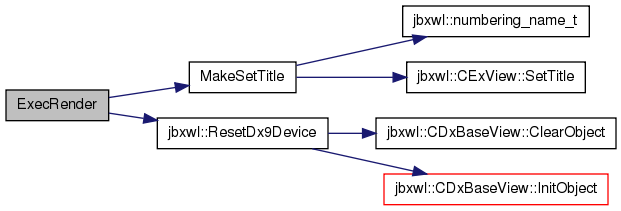

Here is the call graph for this function:

void InitObject ( void ) [virtual]

Reimplemented from CDxBaseView.

Definition at line 620 of file DxMGRView.cpp.

References CDxBaseView::bufferSize, CExView::colorMode, jbxwl::Dx9GetBackBuffer(), CExView::hasViewData, IDS_STR_FAIL_REGET_BAKBUF, IDS_STR_FAIL_REGET_SURFACE, IDS_STR_FAIL_RETRNS_SURFACE, CDxBaseView::lpBackBuffer, CDxBaseView::lpD3DDevice, CDxBaseView::lpSurface, CDxMGRView::SetNewSurface(), CExView::viewData, and CExView::vSBpos.

00621 {
00622     bufferSize = Dx9GetBackBuffer(lpD3DDevice, &lpBackBuffer);
00623     if (bufferSize.x<0) {
00624         CString mesg;
00625         mesg.LoadString(IDS_STR_FAIL_REGET_BAKBUF);
00626         MessageBox(_T("CDxMGRView::InitObject():\n\n") + mesg);
00627         return;
00628     }
00629
00630     HRESULT hr;
00631     if (colorMode==GRAPH_COLOR_RGB || colorMode==GRAPH_COLOR_BGR) {
00632         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_X8R8G8B8, D3DPOOL_DEFAULT, &lpSurface, NULL);
00633     }
00634     else if (colorMode==GRAPH_COLOR_ARGB || colorMode==GRAPH_COLOR_RGBA) {
00635         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_A8R8G8B8, D3DPOOL_DEFAULT, &lpSurface, NULL);
00636     }
00637     else if (colorMode==GRAPH_COLOR_XRGB) {
00638         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_X8R8G8B8, D3DPOOL_DEFAULT, &lpSurface, NULL);
00639     }
00640     else if (colorMode==GRAPH_COLOR_ABGR || colorMode==GRAPH_COLOR_BGRA) {
00641         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_A8R8G8B8, D3DPOOL_DEFAULT, &lpSurface, NULL);
00642     }
00643     else if (colorMode==GRAPH_COLOR_XBGR) {
00644         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_X8R8G8B8, D3DPOOL_DEFAULT, &lpSurface, NULL);
00645     }
00646     else if (colorMode==GRAPH_COLOR_ARGB16 || colorMode==GRAPH_COLOR_RGBA16) {
00647         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_A4R4G4B4, D3DPOOL_DEFAULT, &lpSurface, NULL);
00648     }
00649     else {  // GRAPH_COLOR_MONO, MONO16, RGB16
00650         hr = lpD3DDevice->CreateOffscreenPlainSurface(viewData.xsize, viewData.ysize, D3DFMT_R5G6B5,   D3DPOOL_DEFAULT, &lpSurface, NULL);
00651     }
00652
00653     if (FAILED(hr)) {
00654         CString mesg;
00655         mesg.LoadString(IDS_STR_FAIL_REGET_SURFACE);
00656         MessageBox(_T("CDxMGRView::InitObject():\n\n") + mesg);
00657         return;
00658     }
00659
00660     hasViewData = SetNewSurface(vSBpos);
00661     if (!hasViewData) {
00662         CString mesg;
00663         mesg.LoadString(IDS_STR_FAIL_RETRNS_SURFACE);
00664         MessageBox(_T("CDxMGRView::InitObject():\n\n") + mesg);
00665         return;
00666     }
00667     return;
00668 }

Here is the call graph for this function:

void MakeSetTitle ( )

Definition at line 672 of file DxMGRView.cpp.

References CExView::clientRate, CExDocument::endNo, IDS_STR_IMG_NUM, jbxwl::numbering_name_t(), CExView::pDoc, CExDocument::preTitle, CExDocument::pstTitle, CExView::SetTitle(), CExDocument::startNo, CExDocument::Title, CExView::Title, CExView::vSBmax, and CExView::vSBpos.

Referenced by CDxMGRView::ExecRender(), and CDxMGRView::SetNewSurface().

00673 {
00674     Title = pDoc->preTitle + pDoc->Title + pDoc->pstTitle;
00675     if (vSBmax>=1) {
00676         CString mesg;
00677         mesg.LoadString(IDS_STR_IMG_NUM);
00678         mesg = _T("  ") + mesg + _T(" %d");
00679         int no = pDoc->startNo + vSBpos*Sign(pDoc->endNo - pDoc->startNo);
00680
00681         Title += numbering_name_t((LPCTSTR)mesg, no);
00682     }
00683
00684     if (clientRate!=1.0) {
00685         CString szprcnt;
00686         szprcnt.Format(_T("  (%d%%)"), (int)(clientRate*100+0.5));
00687         Title = Title + szprcnt;
00688     }
00689     this->SetTitle(Title);
00690 }

Here is the call graph for this function:

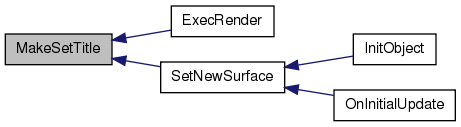

Here is the caller graph for this function:

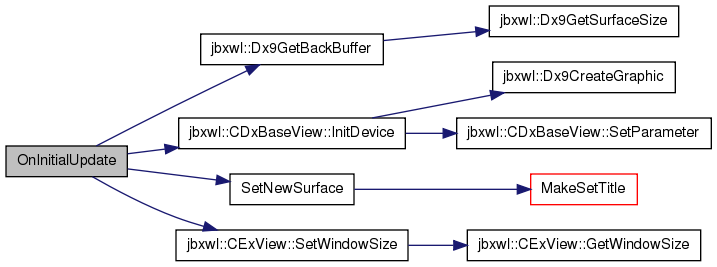

void OnInitialUpdate ( void ) [virtual]

Reimplemented from CDxBaseView.

Definition at line 98 of file DxMGRView.cpp.

References CDxBaseView::bufferSize, CExDocument::cMax, CExView::cMax, CExDocument::cMin, CExView::cMin, CExDocument::cmnHead, CExView::cmnHead, CExDocument::colorMode, CExView::colorMode, CExFrame::doneErrorMessage, jbxwl::Dx9GetBackBuffer(), CExView::hasViewData, IDS_STR_FAIL_CRT_BAKBUF, IDS_STR_FAIL_CRT_SURFACE, IDS_STR_FAIL_GET_DX9DEV, IDS_STR_FAIL_TRNS_SURFACE, IDS_STR_INVLD_VWMODE, IDS_STR_UNKWN_VWMODE, IDS_STR_UNSPT_VWMODE, CDxBaseView::InitDevice(), CDxBaseView::lpBackBuffer, CDxBaseView::lpD3DDevice, CDxBaseView::lpSurface, CExView::origXSize, CExView::origYSize, CExView::pDoc, CExView::pFrame, CDxMGRView::renderRect, CDxMGRView::SetNewSurface(), CExView::SetWindowSize(), CExView::sizeXYRate, CExView::usePlane, VIEW_8_MAX, VIEW_8_MIN, VIEW_XDIR, VIEW_YDIR, VIEW_ZDIR, CExView::viewData, CExView::viewMode, CExDocument::vMax, CExView::vMax, CExDocument::vMin, CExView::vMin, CExView::vSBmax, CExView::vSBpos, CExView::xsize, CExView::ysize, and CExView::zsize.

00099 {
00100     cmnHead = pDoc->cmnHead;
00101     if (isNull(cmnHead.grptr)) return;
00102
00103     colorMode = pDoc->colorMode & GRAPH_COLOR_MASK;
00104     if (pDoc->colorMode & GRAPH_COLOR_USE_PLANE) usePlane = true;
00105
00106     if (usePlane) {
00107         if      (colorMode==GRAPH_COLOR_RGB  && cmnHead.zsize!=3) colorMode = GRAPH_COLOR_MONO;
00108         else if (colorMode==GRAPH_COLOR_BGR  && cmnHead.zsize!=3) colorMode = GRAPH_COLOR_MONO;
00109         else if (colorMode==GRAPH_COLOR_ARGB && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00110         else if (colorMode==GRAPH_COLOR_ABGR && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00111         else if (colorMode==GRAPH_COLOR_RGBA && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00112         else if (colorMode==GRAPH_COLOR_BGRA && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00113         else if (colorMode==GRAPH_COLOR_XRGB && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00114         else if (colorMode==GRAPH_COLOR_XBGR && cmnHead.zsize!=4) colorMode = GRAPH_COLOR_MONO;
00115     }
00116     if (colorMode==GRAPH_COLOR_MONO) usePlane = false;
00117
00118     //
00119     xsize = cmnHead.xsize;
00120     ysize = cmnHead.ysize;
00121
00122     // 表示モード
00123     if (colorMode==GRAPH_COLOR_RGB  || colorMode==GRAPH_COLOR_BGR  ||
00124         colorMode==GRAPH_COLOR_XRGB || colorMode==GRAPH_COLOR_ARGB || colorMode==GRAPH_COLOR_RGBA  ||
00125         colorMode==GRAPH_COLOR_XBGR || colorMode==GRAPH_COLOR_ABGR || colorMode==GRAPH_COLOR_BGRA) {
00126         if (viewMode==VIEW_ZDIR) {      // Z
00127             xsize = cmnHead.xsize;
00128             ysize = cmnHead.ysize;
00129             zsize = 1;
00130         }
00131         else {
00132             CString mesg;
00133             mesg.LoadString(IDS_STR_UNSPT_VWMODE);
00134             MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00135             pFrame->doneErrorMessage = TRUE;
00136             return;
00137         }
00138     }
00139
00140     else {
00141         if (viewMode==VIEW_ZDIR) {      // Z
00142             xsize = cmnHead.xsize;
00143             ysize = cmnHead.ysize;
00144             zsize = cmnHead.zsize;
00145         }
00146         else if (viewMode==VIEW_XDIR) { // X
00147             xsize = cmnHead.ysize;
00148             ysize = cmnHead.zsize;
00149             zsize = cmnHead.xsize;
00150             if (ysize<=1) {
00151                 CString mesg;
00152                 mesg.LoadString(IDS_STR_INVLD_VWMODE);
00153                 MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00154                 pFrame->doneErrorMessage = TRUE;
00155                 return;
00156             }
00157         }
00158         else if (viewMode==VIEW_YDIR) { // Y
00159             xsize = cmnHead.xsize;
00160             ysize = cmnHead.zsize;
00161             zsize = cmnHead.ysize;
00162             if (ysize<=1) {
00163                 CString mesg;
00164                 mesg.LoadString(IDS_STR_INVLD_VWMODE);
00165                 MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00166                 pFrame->doneErrorMessage = TRUE;
00167                 return;
00168             }
00169
00170         }
00171         else {
00172             CString mesg;
00173             mesg.LoadString(IDS_STR_UNKWN_VWMODE);
00174             MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00175             pFrame->doneErrorMessage = TRUE;
00176             return;
00177         }
00178     }
00179
00180     //
00181     cMax = pDoc->cMax;
00182     cMin = pDoc->cMin;
00183     vMax = pDoc->vMax;
00184     vMin = pDoc->vMin;
00185
00186     //
00187     D3DFORMAT format;
00188
00189     // RGB 8bit/plane
00190     // なんで xsize, ysize は偶数なんだっけ！？
00191     if (colorMode==GRAPH_COLOR_RGB || colorMode==GRAPH_COLOR_BGR) {
00192         //xsize = (((xsize*3+3)/4)*4+2)/3;
00193         //ysize = (((ysize*3+3)/4)*4+2)/3;
00194         viewData.set(xsize, ysize, 1, 24);
00195         format = D3DFMT_X8R8G8B8;
00196         vMax = cMax = VIEW_8_MAX;
00197         vMin = cMin = VIEW_8_MIN;
00198     }
00199     // ARGB/RGBA 8bit/plane
00200     else if (colorMode==GRAPH_COLOR_ARGB || colorMode==GRAPH_COLOR_RGBA) {
00201         viewData.set(xsize, ysize, 1, 32);
00202         format = D3DFMT_A8R8G8B8;
00203         vMax = cMax = VIEW_8_MAX;
00204         vMin = cMin = VIEW_8_MIN;
00205     }
00206     // XRGB 8bit/plane
00207     else if (colorMode==GRAPH_COLOR_XRGB) {
00208         viewData.set(xsize, ysize, 1, 32);
00209         format = D3DFMT_X8R8G8B8;
00210         vMax = cMax = VIEW_8_MAX;
00211         vMin = cMin = VIEW_8_MIN;
00212     }
00213     // ABGR/BGRA 8bit/plane
00214     else if (colorMode==GRAPH_COLOR_ABGR || colorMode==GRAPH_COLOR_BGRA) {
00215         viewData.set(xsize, ysize, 1, 32);
00216         format = D3DFMT_A8R8G8B8;
00217         vMax = cMax = VIEW_8_MAX;
00218         vMin = cMin = VIEW_8_MIN;
00219     }
00220     // XBGR 8bit/plane
00221     else if (colorMode==GRAPH_COLOR_XBGR) {
00222         viewData.set(xsize, ysize, 1, 32);
00223         format = D3DFMT_X8R8G8B8;
00224         vMax = cMax = VIEW_8_MAX;
00225         vMin = cMin = VIEW_8_MIN;
00226     }
00227     // ARGB16/RGBA16 16bit/plane
00228     else if (colorMode==GRAPH_COLOR_ARGB16 || colorMode==GRAPH_COLOR_RGBA16) {
00229         //xsize += xsize%2;
00230         //ysize += ysize%2;
00231         viewData.set(xsize, ysize, 1, 16);
00232         format = D3DFMT_A4R4G4B4;
00233         vMax = cMax = SWORDMAX;
00234         vMin = cMin = SWORDMIN;
00235     }
00236     // RGB16 16bit/plane
00237     else if (colorMode==GRAPH_COLOR_RGB16) {
00238         //xsize += xsize%2;
00239         //ysize += ysize%2;
00240         viewData.set(xsize, ysize, 1, 16);
00241         format = D3DFMT_R5G6B5;
00242         vMax = cMax = SWORDMAX;
00243         vMin = cMin = SWORDMIN;
00244     }
00245     // GRAPH_COLOR_MONO, MONO16  8,16bit/plane (MONO16は MONOに変換されて表示される)
00246     else {
00247         //xsize = ((xsize+3)/4)*4;
00248         //ysize = ((ysize+3)/4)*4;
00249         viewData.set(xsize, ysize);
00250         format = D3DFMT_R5G6B5;
00251     }
00252
00253     //
00254     origXSize  = xsize;
00255     origYSize  = ysize;
00256     sizeXYRate = (double)ysize/(double)xsize;
00257
00258     renderRect.top    = 0;
00259     renderRect.left   = 0;
00260     renderRect.right  = xsize;
00261     renderRect.bottom = ysize;
00262     vSBmax            = zsize - 1;
00263
00264     SetScrollRange(SB_VERT, 0, vSBmax);
00265     SetScrollPos(SB_VERT, vSBpos);
00266
00267     //
00268     // DX9
00269     //
00270     BOOL rslt = InitDevice(xsize, ysize);
00271     if (!rslt) {
00272         CString mesg;
00273         mesg.LoadString(IDS_STR_FAIL_GET_DX9DEV);
00274         MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00275         pFrame->doneErrorMessage = TRUE;
00276         return;
00277     }
00278
00279     bufferSize = Dx9GetBackBuffer(lpD3DDevice, &lpBackBuffer);
00280     if (bufferSize.x<0) {
00281         CString mesg;
00282         mesg.LoadString(IDS_STR_FAIL_CRT_BAKBUF);
00283         MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00284         return;
00285     }
00286
00287     HRESULT hr = lpD3DDevice->CreateOffscreenPlainSurface(xsize, ysize, format, D3DPOOL_DEFAULT, &lpSurface, NULL);
00288     if (FAILED(hr)) {
00289         CString mesg;
00290         mesg.LoadString(IDS_STR_FAIL_CRT_SURFACE);
00291         MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00292         pFrame->doneErrorMessage = TRUE;
00293         return;
00294     }
00295
00296     hasViewData = SetNewSurface(vSBpos);
00297     if (!hasViewData) {
00298         CString mesg;
00299         mesg.LoadString(IDS_STR_FAIL_TRNS_SURFACE);
00300         MessageBox(_T("CDxMGRView::OnInitialUpdate():\n\n") + mesg);
00301         pFrame->doneErrorMessage = TRUE;
00302         return;
00303     }
00304
00305
00306     //
00307     SetWindowSize(viewData.xsize, viewData.ysize);
00308     return;
00309 }

Here is the call graph for this function:

BOOL SetNewSurface ( int ovsbpos = 0 ) [virtual]

Reimplemented from CExView.

Definition at line 313 of file DxMGRView.cpp.

References CExView::cMax, CExView::cMin, CExView::cmnHead, CExView::colorMode, IDS_STR_DLTD_DATA, IDS_STR_ERROR, CDxBaseView::lpSurface, CDxMGRView::MakeSetTitle(), CExView::prevSBpos, CDxMGRView::renderRect, VIEW_8_MAX, VIEW_8_MIN, VIEW_XDIR, VIEW_YDIR, VIEW_ZDIR, CExView::viewData, CExView::viewMode, CExView::vMax, CExView::vMin, and CExView::vSBpos.

Referenced by CDxMGRView::InitObject(), and CDxMGRView::OnInitialUpdate().

00314 {
00315     int     point, n;
00316     double  ca, cb;
00317     HRESULT hr;
00318
00319     if (isNull(viewData.grptr)) {
00320         CString mesg, noti;
00321         mesg.LoadString(IDS_STR_DLTD_DATA);
00322         noti.LoadString(IDS_STR_ERROR);
00323         MessageBox(_T("CDxMGRView::SetNewSurface():\n\n") + mesg, noti, MB_OK);
00324         return FALSE;
00325     }
00326
00327     //
00328     check_endian();
00329     MakeSetTitle();
00330
00331     // コントラスト調整
00332     //   cMax, cMin: 可変　　vMax, vMin:コントラストの上限と下限（固定）
00333     if (cMax==cMin) cMax = cMin + 1;
00334     ca = ((double)(vMax-vMin))/((double)(cMax-cMin));
00335     cb = ((double)(vMin-cMin))/((double)(cMax-cMin));
00336
00337     // RGB 8bit/plane
00338     if (colorMode==GRAPH_COLOR_RGB) {
00339         for (int k=0; k<3; k++) {
00340             if (HostEndian==BIG_ENDIAN) n = k;
00341             else                        n = 2 - k;
00342             for (int j=0; j<cmnHead.ysize; j++) {
00343                 for (int i=0; i<cmnHead.xsize; i++) {
00344                     uByte* ptr = &viewData.point(i, j);
00345                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00346                     point  = Min(point, VIEW_8_MAX);
00347                     point  = Max(point, VIEW_8_MIN);
00348                     ptr[n] = point;
00349                 }
00350             }
00351         }
00352
00353         int srcpitch = viewData.xsize*3;
00354         hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_R8G8B8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00355     }
00356
00357     // BGR 8bit/plane
00358     else if (colorMode==GRAPH_COLOR_BGR) {
00359         for (int k=0; k<3; k++) {
00360             if (HostEndian==BIG_ENDIAN) n = 2 - k;
00361             else                        n = k;
00362             for (int j=0; j<cmnHead.ysize; j++) {
00363                 for (int i=0; i<cmnHead.xsize; i++) {
00364                     uByte* ptr = &viewData.point(i, j);
00365                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00366                     point  = Min(point, VIEW_8_MAX);
00367                     point  = Max(point, VIEW_8_MIN);
00368                     ptr[n] = point;
00369                 }
00370             }
00371         }
00372
00373         int srcpitch = viewData.xsize*3;
00374         hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_R8G8B8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00375     }
00376
00377     // XRGB/ARGB 8bit/plane
00378     else if (colorMode==GRAPH_COLOR_XRGB || colorMode==GRAPH_COLOR_ARGB) {
00379         for (int k=0; k<4; k++) {
00380             if (HostEndian==BIG_ENDIAN) n = k;
00381             else                        n = 3 - k;
00382             for (int j=0; j<cmnHead.ysize; j++) {
00383                 for (int i=0; i<cmnHead.xsize; i++) {
00384                     uByte* ptr = &viewData.point(i, j);
00385                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00386                     point  = Min(point, VIEW_8_MAX);
00387                     point  = Max(point, VIEW_8_MIN);
00388                     ptr[n] = point;
00389                 }
00390             }
00391         }
00392
00393         int srcpitch = viewData.xsize*4;
00394         if (colorMode==GRAPH_COLOR_XRGB) {
00395             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_X8R8G8B8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00396         }
00397         else {
00398             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A8R8G8B8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00399         }
00400     }
00401
00402     // RGBA 8bit/plane
00403     else if (colorMode==GRAPH_COLOR_RGBA) {
00404         for (int k=0; k<4; k++) {
00405             if (HostEndian==BIG_ENDIAN) n = 3 - k;
00406             else                        n = k;
00407             for (int j=0; j<cmnHead.ysize; j++) {
00408                 for (int i=0; i<cmnHead.xsize; i++) {
00409                     uByte* ptr = &viewData.point(i, j);
00410                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00411                     point  = Min(point, VIEW_8_MAX);
00412                     point  = Max(point, VIEW_8_MIN);
00413                     ptr[n] = point;
00414                 }
00415             }
00416         }
00417
00418         int srcpitch = viewData.xsize*4;
00419         hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A8B8G8R8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00420     }
00421
00422     // XBGR/ABGR 8bit/plane
00423     else if (colorMode==GRAPH_COLOR_XBGR || colorMode==GRAPH_COLOR_ABGR) {
00424         for (int k=0; k<4; k++) {
00425             if (HostEndian==BIG_ENDIAN) n = k;
00426             else                        n = 3 - k;
00427             for (int j=0; j<cmnHead.ysize; j++) {
00428                 for (int i=0; i<cmnHead.xsize; i++) {
00429                     uByte* ptr = &viewData.point(i, j);
00430                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00431                     point  = Min(point, VIEW_8_MAX);
00432                     point  = Max(point, VIEW_8_MIN);
00433                     ptr[n] = point;
00434                 }
00435             }
00436         }
00437
00438         int srcpitch = viewData.xsize*4;
00439         if (colorMode==GRAPH_COLOR_XBGR) {
00440             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_X8B8G8R8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00441         }
00442         else {
00443             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A8B8G8R8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00444         }
00445     }
00446
00447     // BGRA 8bit/plane
00448     else if (colorMode==GRAPH_COLOR_BGRA) {
00449         for (int k=0; k<4; k++) {
00450             if (HostEndian==BIG_ENDIAN) n = 3 - k;
00451             else                        n = k;
00452             for (int j=0; j<cmnHead.ysize; j++) {
00453                 for (int i=0; i<cmnHead.xsize; i++) {
00454                     uByte* ptr = &viewData.point(i, j);
00455                     point  = (int)(cmnHead.point(i, j, k)*ca + VIEW_8_MAX*cb + 0.5);
00456                     point  = Min(point, VIEW_8_MAX);
00457                     point  = Max(point, VIEW_8_MIN);
00458                     ptr[n] = point;
00459                 }
00460             }
00461         }
00462
00463         int srcpitch = viewData.xsize*4;
00464         hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A8R8G8B8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00465     }
00466
00467     // RGB16/ARGB16/RGBA16 16bit/plane
00468     else if (colorMode==GRAPH_COLOR_RGB16 || colorMode==GRAPH_COLOR_ARGB16 || colorMode==GRAPH_COLOR_RGBA16) {
00469         uWord* src = NULL;
00470         uWord* dst = NULL;
00471
00472         if (prevSBpos!=vSBpos) {
00473             if (viewMode==VIEW_ZDIR) {
00474                 for (int j=0; j<cmnHead.ysize; j++) {
00475                     for (int i=0; i<cmnHead.xsize; i++) {
00476                         src = (uWord*)&cmnHead.point(i, j, vSBpos);
00477                         dst = (uWord*)&viewData.point(i, j);
00478                         point = (int)(*src*ca + vMax*cb + 0.5);
00479                         //point = Min(point, vMax);
00480                         //point = Max(point, vMin);
00481                         *dst  = point;
00482                     }
00483                 }
00484             }
00485             else if (viewMode==VIEW_XDIR) {
00486                 for (int j=0; j<cmnHead.zsize; j++) {
00487                     for (int i=0; i<cmnHead.ysize; i++) {
00488                         src = (uWord*)&cmnHead.point(vSBpos, i, j);
00489                         dst = (uWord*)&viewData.point(i, j);
00490                         point = (int)(*src*ca + vMax*cb + 0.5);
00491                         //point = Min(point, vMax);
00492                         //point = Max(point, vMin);
00493                         *dst  = point;
00494                     }
00495                 }
00496             }
00497             else if (viewMode==VIEW_YDIR) {
00498                 for (int j=0; j<cmnHead.zsize; j++) {
00499                     for (int i=0; i<cmnHead.xsize; i++) {
00500                         src = (uWord*)&cmnHead.point(i, cmnHead.ysize-1-vSBpos, j);
00501                         dst = (uWord*)&viewData.point(i, j);
00502                         point = (int)(*src*ca + vMax*cb + 0.5);
00503                         //point = Min(point, vMax);
00504                         //point = Max(point, vMin);
00505                         *dst  = point;
00506                     }
00507                 }
00508             }
00509             else  return FALSE;
00510         }
00511
00512         ntoh_data(viewData.grptr, viewData.lsize, 2);
00513         int srcpitch = viewData.xsize*2;
00514         if (colorMode==GRAPH_COLOR_RGB16) {
00515             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_R5G6B5, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00516         }
00517         else if (colorMode==GRAPH_COLOR_ARGB16) {
00518             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A4R4G4B4, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00519         }
00520         else {  // GRAPH_COLOR_RGBA16
00521             // R4G4B4A4 -> A4R4G4B4
00522             for (int i=0; i<viewData.xsize*viewData.ysize*2; i+=2) {
00523                 int r = (viewData.grptr[i]  &0xf0)>>4;
00524                 int g = (viewData.grptr[i]  &0x0f)<<4;
00525                 int b = (viewData.grptr[i+1]&0xf0)>>4;
00526                 int a = (viewData.grptr[i+1]&0x0f)<<4;
00527                 viewData.grptr[i]   = (uByte)(a + r);
00528                 viewData.grptr[i+1] = (uByte)(g + b);
00529             }
00530             hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_A4R4G4B4, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00531         }
00532     }
00533
00534     // Monochrome 8,16bit/plane    cmnHead は8bitに変換済み
00535     else if (colorMode==GRAPH_COLOR_MONO || colorMode==GRAPH_COLOR_MONO16) {
00536         if (prevSBpos!=vSBpos) {
00537             if (viewMode==VIEW_ZDIR) {
00538                 for (int j=0; j<cmnHead.ysize; j++) {
00539                     for (int i=0; i<cmnHead.xsize; i++) {
00540                         point = (int)(cmnHead.point(i, j, vSBpos)*ca + VIEW_8_MAX*cb + 0.5);
00541                         point = Min(point, VIEW_8_MAX);
00542                         point = Max(point, 0);
00543                         viewData.point(i, j) = point;
00544                     }
00545                 }
00546             }
00547             else if (viewMode==VIEW_XDIR) {
00548                 for (int j=0; j<cmnHead.zsize; j++) {
00549                     for (int i=0; i<cmnHead.ysize; i++) {
00550                         point = (int)(cmnHead.point(vSBpos, i, j)*ca + VIEW_8_MAX*cb + 0.5);
00551                         point = Min(point, VIEW_8_MAX);
00552                         point = Max(point, 0);
00553                         viewData.point(i, j) = point;
00554                     }
00555                 }
00556             }
00557             else if (viewMode==VIEW_YDIR) {
00558                 for (int j=0; j<cmnHead.zsize; j++) {
00559                     for (int i=0; i<cmnHead.xsize; i++) {
00560                         point = (int)(cmnHead.point(i, cmnHead.ysize-1-vSBpos, j)*ca + VIEW_8_MAX*cb + 0.5);
00561                         point = Min(point, VIEW_8_MAX);
00562                         point = Max(point, 0);
00563                         viewData.point(i, j) = point;
00564                     }
00565                 }
00566             }
00567             else  return FALSE;
00568         }
00569
00570         // GRAPH_COLOR_MONO16 は 8bitに変換されている
00571         int srcpitch = viewData.xsize;
00572         hr = D3DXLoadSurfaceFromMemory(lpSurface, NULL, NULL, viewData.grptr, D3DFMT_L8, srcpitch, NULL, &renderRect, D3DX_FILTER_NONE, 0);
00573     }
00574
00575     if (FAILED(hr)) return FALSE;
00576
00577     return TRUE;
00578 }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

RECT renderRect

Definition at line 31 of file DxMGRView.h.

Referenced by CDxMGRView::OnInitialUpdate(), and CDxMGRView::SetNewSurface().

The documentation for this class was generated from the following files:

MFCLib/DxMGRView.h
MFCLib/DxMGRView.cpp

CDxMGRView Class Reference

Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
