gLib/gmt.c File Reference

グラフィック用数学ライブラリ＆フィルタ More...

#include "gmt.h"
#include "jbxl_state.h"

Include dependency graph for gmt.c:

Go to the source code of this file.

Functions
WSGraph	Laplacian (WSGraph vp, int mode)
WSGraph	xSobel (WSGraph vp)
FSGraph	fxSobel (FSGraph vp)
WSGraph	ySobel (WSGraph vp)
FSGraph	fySobel (FSGraph vp)
WSGraph	zSobel (WSGraph vp)
FSGraph	fzSobel (FSGraph vp)
WSGraph	xxSobel (WSGraph vp)
FSGraph	fxxSobel (FSGraph vp)
WSGraph	yySobel (WSGraph vp)
FSGraph	fyySobel (FSGraph vp)
WSGraph	zzSobel (WSGraph vp)
FSGraph	fzzSobel (FSGraph vp)
VSGraph	vNabra (WSGraph vp)
VSGraph	vfNabra (FSGraph vp)
WSGraph	Nabra (WSGraph vp)
FSGraph	fNabra (FSGraph vp)
VSGraph	curvature3D (FSGraph vp)
VSGraph	curvature (FSGraph vp)
WSGraph	curv2WSGraph (VSGraph xp)
WSGraph	WSCurve (WSGraph gx, int mode, int cc)
WSGraph	edge_enhance (WSGraph gd, int mode)
FMask	gauss_mask (double sig, int ms, int md)
WSGraph	imask (WSGraph xp, FMask mask)
WSGraph	median (WSGraph xp, int ms)
WSGraph	to2d (WSGraph gd, int mode)
WSGraph	euclid_distance (WSGraph vp, int *rr, int bc)
int	out_round (WSGraph vp, int x, int y, IRBound *rb, int mode)

---

Detailed Description

Version:

3.0

Author:

Fumi.Iseki (C)

Definition in file gmt.c.

---

Function Documentation

WSGraph curv2WSGraph

(

VSGraph

xp

)

WSGraph curv2WSGraph(VSGraph xp)

3次元曲率データから曲面の形状を判定する．

Parameters:

xp

操作対象となる3次元曲率の入ったグラフィックデータ．

Returns:

曲面の形状情報を代入した sWord型グラフィックデータ．

Note:

曲面の形状の種類は
PEAK, PIT, SADDLE_RIDGE, SADDLE_VALLEY, NONE_SHAPE, MINIMAL, RIDGE, VALLEY, FLAT

Definition at line 1432 of file gmt.c.

References FLAT, WSGraph::gp, VSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), MINIMAL, NONE_SHAPE, PEAK, PIT, RIDGE, SADDLE_RIDGE, SADDLE_VALLEY, WSGraph::state, VALLEY, vector::x, WSGraph::xs, VSGraph::xs, vector::y, WSGraph::ys, VSGraph::ys, WSGraph::zs, and VSGraph::zs.

Referenced by WSCurve().

{
    int  i;
    WSGraph vp;
    double  K, H;

    memset(&vp, 0, sizeof(WSGraph));
    if (xp.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    vp = make_WSGraph(xp.xs, xp.ys, xp.zs);
    if (vp.gp==NULL) return vp;

    for (i=0; i<vp.xs*vp.ys*vp.zs; i++) {
        K = xp.gp[i].x;
        H = xp.gp[i].y;
        if      (K>0  && H<0)  vp.gp[i] = PEAK;
        else if (K>0  && H>0)  vp.gp[i] = PIT;
        else if (K<0  && H<0)  vp.gp[i] = SADDLE_RIDGE;
        else if (K<0  && H>0)  vp.gp[i] = SADDLE_VALLEY;
        else if (K>0  && H==0) vp.gp[i] = NONE_SHAPE;
        else if (K<0  && H==0) vp.gp[i] = MINIMAL;
        else if (K==0 && H<0)  vp.gp[i] = RIDGE;
        else if (K==0 && H>0)  vp.gp[i] = VALLEY;
        else if (K==0 && H==0) vp.gp[i] = FLAT;
    }

    return vp;
}

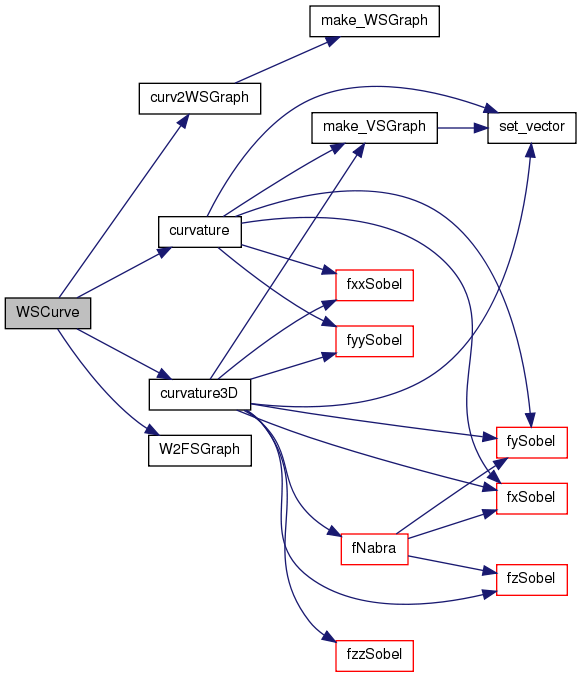

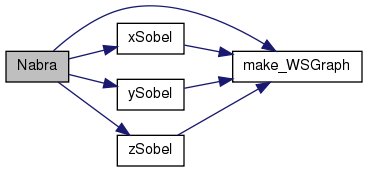

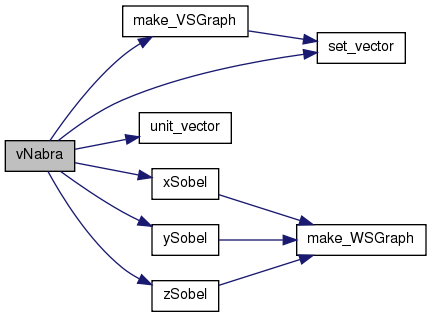

Here is the call graph for this function:

Here is the caller graph for this function:

VSGraph curvature

(

FSGraph

vp

)

VSGraph curvature(FSGraph vp)

2Dグラフィックデータの3次元曲率を実数計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

3次元曲率を代入した vector型グラフィックデータ(K,Hの2次元)．

Definition at line 1356 of file gmt.c.

References free_VSGraph, freeNull, fxSobel(), fxxSobel(), fySobel(), fyySobel(), VSGraph::gp, FSGraph::gp, JBXL_GRAPH_ERROR, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_VSGraph(), set_vector(), VSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by WSCurve().

{
    int   i;
    double K, H, d;
    double Ix, Ixx, Iy, Iyy, Ixy;
    FSGraph px, py, pxy, pxx, pyy;
    VSGraph pp;

    memset(&pp, 0, sizeof(VSGraph));
    if (vp.gp==NULL) {
        pp.state = JBXL_GRAPH_NODATA_ERROR;
        return pp;
    }

    if (vp.zs>1) {
        //fprintf(stderr,"CURVATURE: z dimension is > 1.\n");
        pp.state = JBXL_GRAPH_IVDARG_ERROR;
        return pp;
    }

    pp = make_VSGraph(vp.xs, vp.ys, vp.zs);
    if (pp.gp==NULL) return pp;

    px  = fxSobel(vp);
    py  = fySobel(vp);
    pxy = fySobel(px);
    pxx = fxxSobel(vp);
    pyy = fyySobel(vp);

    if (px.gp==NULL||py.gp==NULL||pxy.gp==NULL||pxx.gp==NULL||pyy.gp==NULL) {
        freeNull(px.gp);
        freeNull(py.gp);
        freeNull(pxy.gp);
        freeNull(pxx.gp);
        freeNull(pyy.gp);
        free_VSGraph(&pp);
        pp.state = JBXL_GRAPH_ERROR;
        return pp;
    }

    for (i=0; i<vp.xs*vp.ys; i++) {
        Ix  = px.gp[i];
        Iy  = py.gp[i];
        Ixy = pxy.gp[i];
        Ixx = pxx.gp[i];
        Iyy = pyy.gp[i];
        d   = 1. + Ix*Ix + Iy*Iy;

        K = (Ixx*Iyy-Ixy*Ixy)/(d*d);
        H = (Ixx+Ixx*Iy*Iy+Iyy+Iyy*Ix*Ix-2*Ix*Ixy*Iy)/(2.*d*sqrt(d));
        pp.gp[i] = set_vector(K, H, 0.0);
    }

    free(px.gp);
    free(py.gp);
    free(pxy.gp);
    free(pxx.gp);
    free(pyy.gp);

    return pp;
}

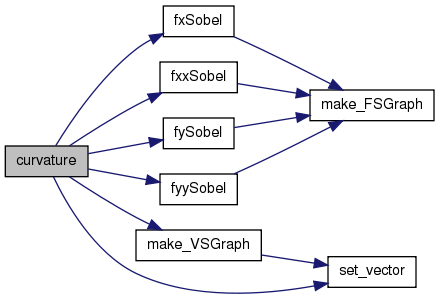

Here is the call graph for this function:

Here is the caller graph for this function:

VSGraph curvature3D

(

FSGraph

vp

)

VSGraph curvature3D(FSGraph vp)

3Dグラフィックデータの4次元曲率を実数計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

4次元曲率を代入した vector型グラフィックデータ(K,Hの2次元)．

Definition at line 1254 of file gmt.c.

References fNabra(), free_VSGraph, freeNull, fxSobel(), fxxSobel(), fySobel(), fyySobel(), fzSobel(), fzzSobel(), VSGraph::gp, FSGraph::gp, JBXL_GRAPH_ERROR, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_VSGraph(), set_vector(), VSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by WSCurve().

{
    int  i;
    double alph, beta, gamm, K, H;
    double fx, fy, fz, fxy, fyz, fzx, fxx, fyy, fzz, nb;
    FSGraph px, py, pz, pxy, pyz, pzx, pxx, pyy, pzz, nab;
    VSGraph pp;

    memset(&pp, 0, sizeof(VSGraph));
    if (vp.gp==NULL) {
        pp.state = JBXL_GRAPH_NODATA_ERROR;
        return pp;
    }

    if (vp.zs<5) {
        //fprintf(stderr,"CURVATURE3D: z dimension is < 5.\n");
        pp.state = JBXL_GRAPH_IVDARG_ERROR;
        return pp;
    }

    pp = make_VSGraph(vp.xs, vp.ys, vp.zs);
    if (pp.gp==NULL) return pp;

    nab = fNabra(vp);
    px  = fxSobel(vp);
    py  = fySobel(vp);
    pz  = fzSobel(vp);
    pxy = fySobel(px);
    pyz = fzSobel(py);
    pzx = fxSobel(pz);
    pxx = fxxSobel(vp);
    pyy = fyySobel(vp);
    pzz = fzzSobel(vp);

    if (nab.gp==NULL || px.gp==NULL  || py.gp==NULL  || pz.gp==NULL  ||
                        pxy.gp==NULL || pyz.gp==NULL || pzx.gp==NULL ||
                        pxx.gp==NULL || pyy.gp==NULL || pzz.gp==NULL) {
        freeNull(px.gp);
        freeNull(py.gp);
        freeNull(pz.gp);
        freeNull(pxy.gp);
        freeNull(pyz.gp);
        freeNull(pzx.gp);
        freeNull(pxx.gp);
        freeNull(pyy.gp);
        freeNull(pzz.gp);
        freeNull(nab.gp);
        free_VSGraph(&pp);
        pp.state = JBXL_GRAPH_ERROR;
        return pp;
    }

    for (i=0; i<vp.xs*vp.ys*vp.zs; i++) {
        nb  = nab.gp[i];
        fx  = px.gp[i];
        fy  = py.gp[i];
        fz  = pz.gp[i];
        fxy = pxy.gp[i];
        fyz = pyz.gp[i];
        fzx = pzx.gp[i];
        fxx = pxx.gp[i];
        fyy = pyy.gp[i];
        fzz = pzz.gp[i];

        if (nb*(fx*fx+fy*fy) !=0) {
            alph = (2*fx*fy*fxy - fx*fx*fyy - fy*fy*fxx)/(fx*fx+fy*fy);
            beta = (2*fz*(fx*fx+fy*fy)*(fx*fzx+fy*fyz) - 2*fx*fy*fz*fz*fxy
                        - fx*fx*fz*fz*fxx - fy*fy*fz*fz*fyy
                        - (fx*fx+fy*fy)*(fx*fx+fy*fy)*fzz)/(nb*nb*(fx*fx+fy*fy));
            gamm = ((fx*fx+fy*fy)*(fy*fzx-fx*fyz) + (fx*fx-fy*fy)*fz*fxy
                        - fx*fy*fz*(fxx-fyy))/(nb*(fx*fx+fy*fy));

            K = alph*beta - gamm*gamm;
            H = (alph + beta)/2;
            pp.gp[i] = set_vector(K, H, 0.0);
        }
    }

    free(px.gp);
    free(py.gp);
    free(pz.gp);
    free(pxy.gp);
    free(pyz.gp);
    free(pzx.gp);
    free(pxx.gp);
    free(pyy.gp);
    free(pzz.gp);
    free(nab.gp);

    return pp;
}

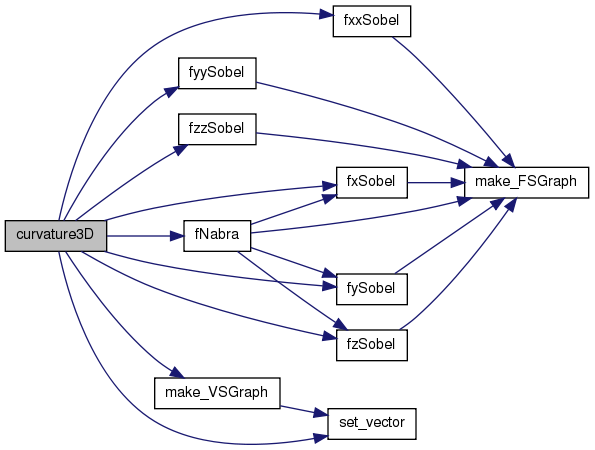

Here is the call graph for this function:

Here is the caller graph for this function:

WSGraph edge_enhance	(	WSGraph	gd,
		int	mode
	)

WSGraph edge_enhance(WSGraph gd, int mode)

2Dグラフィックデータのラプラシアンを使ったエッジ強調．

Parameters:

	gd	計算対象となるグラフィックデータ構造体．
	mode	モード． 4: 4近傍ラプラシアン． 8: 8近傍ラプラシアン 3x3 その他: Sobelのラプラシアン(24近傍) 5x5

Returns:

処理されたグラフィックデータ．

Definition at line 1544 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, Laplacian(), make_WSGraph(), WSGraph::state, WSGraph::xs, and WSGraph::ys.

{
    int  i;
    WSGraph la, vp;

    memset(&vp, 0, sizeof(WSGraph));
    if (gd.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    la = Laplacian(gd, mode);
    if (la.gp==NULL) return la;

    vp = make_WSGraph(gd.xs, gd.ys, 1);
    if (vp.gp==NULL) return vp;

    for (i=0; i<vp.xs*vp.ys; i++) vp.gp[i] = gd.gp[i] - la.gp[i];
    return vp;
}

Here is the call graph for this function:

WSGraph euclid_distance	(	WSGraph	vp,
		int *	rr,
		int	bc
	)

WSGraph euclid_distance(WSGraph vp, int* rr, int bc)

WSGグラフィック上を2値化し,各点における輝度値0の点からのユークリッド距離の最小を求める．

Parameters:

	vp	操作対象となるグラフィックデータ構造体．
	*rr	指定しない．画像中のユークリッド距離の最大値が入る．
	bc	輝度値の2値化の値．これより小さいものは0,これ以上は1．

Returns:

輝度値の代わりにユークリッド距離が記入されたグラフィックデータ．

Definition at line 1913 of file gmt.c.

References free_WSGraph, ISGraph::gp, WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, Lxt, make_ISGraph(), make_WSGraph(), Max, Min, ISGraph::state, WSGraph::state, Vxt, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  i, j, k, l;
    int  df, db, d, w;
    int  rmax, rstart, rend;
    WSGraph wp;
    ISGraph pp, buff;

    memset(&wp, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        wp.state = JBXL_GRAPH_NODATA_ERROR;
        return wp;
    }

    wp = make_WSGraph(vp.xs, vp.ys, vp.zs);
    if (wp.gp==NULL) return wp;

    pp = make_ISGraph(vp.xs, vp.ys, vp.zs);
    if (pp.gp==NULL) {
        free_WSGraph(&wp);
        wp.state = pp.state;
        return wp;
    }

    for (i=0; i<vp.xs*vp.ys*vp.zs; i++) {
         if (vp.gp[i]>=bc) pp.gp[i] = 1;
         else              pp.gp[i] = 0;
    }

    for (k=1; k<=vp.zs; k++) {
        for (j=1; j<=vp.ys; j++) {
            df = vp.xs;
            for (i=1; i<=vp.xs; i++) {
                if (Vxt(pp, i, j, k)!=0) df = df + 1;
                else                     df = 0;
                Vxt(pp, i, j, k) = df*df;
            }
        }
    }

    for (k=1; k<=vp.zs; k++) {
        for (j=1; j<=vp.ys; j++) {
            db = vp.xs;
            for (i=vp.xs; i>=1; i--) {
                if (Vxt(pp, i, j, k)!=0) db = db + 1;
                else                     db = 0;
                Vxt(pp, i, j, k) = Min(Vxt(pp, i, j, k), db*db);
            }
        }
    }

    buff = make_ISGraph(vp.ys, 1, 1);
    for (k=1; k<=vp.zs; k++) {
        for (i=1; i<=vp.xs; i++) {
            for (j=1; j<=vp.ys; j++) {
                Lxt(buff, j) = Vxt(pp, i, j, k);
            }
            for (j=1; j<=vp.ys; j++) {
                d = Lxt(buff, j);
                if (d!=0) {
                    rmax   = (int)sqrt((double)d) + 1;
                    rstart = Min(rmax, j-1);
                    rend   = Min(rmax, vp.ys-j);
                    for (l=-rstart; l<=rend; l++) {
                        w = Lxt(buff, j+l) + l*l;
                        if (w<d) d = w;
                    }
                }
                Vxt(pp, i, j, k) = d;
            }
        }
    }
    free(buff.gp);

    *rr = 0;
    buff = make_ISGraph(vp.zs, 1, 1);
    for (j=1; j<=vp.ys; j++) {
        for (i=1; i<=vp.xs; i++) {
            for (k=1; k<=vp.zs; k++) {
                Lxt(buff, k) = Vxt(pp, i, j, k);
            }
            for (k=1; k<=vp.zs; k++) {
                d = Lxt(buff, k);
                if (d!=0) {
                    rmax   = (int)sqrt((double)d) + 1;
                    rstart = Min(rmax, k-1);
                    rend   = Min(rmax, vp.zs-k);
                    for (l=-rstart; l<=rend; l++) {
                        w = Lxt(buff, k+l) + l*l;
                        if (w<d) d = w;
                    }
                    *rr = Max(*rr, d);
                }
                Vxt(pp, i, j, k) = d;
            }
        }
    }
    free(buff.gp);

    for (i=0; i<wp.xs*wp.ys*wp.zs; i++) {
        wp.gp[i] = (sWord)pp.gp[i];
        if (pp.gp[i]>32767) {
            fprintf(stderr,"EUCLID_DISTANCE: WARNING: distance is too long = %d!\n",pp.gp[i]);
        }
    }
    free(pp.gp);

    return wp;
}

Here is the call graph for this function:

FSGraph fNabra

(

FSGraph

vp

)

WSGraph fNabra(WSGraph vp)

グラフィックデータの ナブラの絶対値を実数計算する(Sobel)． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

ナブラ．double型グラフィックデータ．

Definition at line 1180 of file gmt.c.

References free_FSGraph, fxSobel(), fySobel(), fzSobel(), FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature3D().

{
    int    i, xs, ys, zs;
    double xx, yy, zz;
    FSGraph px, py, pz, pn;

    memset(&pn, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        pn.state = JBXL_GRAPH_NODATA_ERROR;
        return pn;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    pn = make_FSGraph(xs, ys, zs);
    if (pn.gp==NULL) return pn;

    px = fxSobel(vp);
    if (px.gp==NULL) {
        free_FSGraph(&pn);
        pn.state = px.state;
        return pn;
    }
    py = fySobel(vp);
    if (py.gp==NULL) {
        free_FSGraph(&pn);
        free(px.gp);
        pn.state = py.state;
        return pn;
    }

    if (vp.zs<3) {
        for (i=0; i<xs*ys; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            pn.gp[i] = sqrt(xx*xx + yy*yy);
        }
    }
    else {
        pz = fzSobel(vp);
        if (pz.gp==NULL) {
            free_FSGraph(&pn);
            free(px.gp);
            free(py.gp);
            pn.state = pz.state;
            return pn;
        }

        for (i=0; i<xs*ys*zs; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            zz = pz.gp[i];
            pn.gp[i] = sqrt(xx*xx + yy*yy + zz*zz);
        }
        free(pz.gp);
    }

    free(px.gp);
    free(py.gp);

    return pn;
}

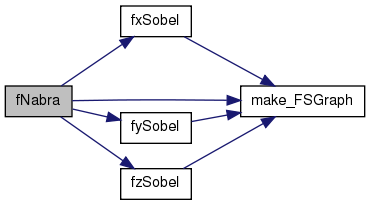

Here is the call graph for this function:

Here is the caller graph for this function:

FSGraph fxSobel

(

FSGraph

vp

)

FSGraph fxSobel(FSGraph vp)

グラフィックデータの x方向微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 144 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, Vx, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature(), curvature3D(), fNabra(), and vfNabra().

{
    int    i, j, k;
    double da, db, dc, dd, de, nr;
    FSGraph xp;

    memset(&xp, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }

    if (vp.zs<=0) vp.zs = 1;
    xp = make_FSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=0; k<vp.zs; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i+1, j-1, k) - Vx(vp, i-1, j-1, k);
                db = Vx(vp, i+1, j,   k) - Vx(vp, i-1, j,   k);
                dc = Vx(vp, i+1, j+1, k) - Vx(vp, i-1, j+1, k);
                if (k==0 || k==vp.zs-1) {
                    dd = de = 0.;
                    nr = 8.;
                }
                else {
                    dd = Vx(vp, i+1, j, k-1) - Vx(vp, i-1, j, k-1);
                    de = Vx(vp, i+1, j, k+1) - Vx(vp, i-1, j, k+1);
                    nr = 12.;
                }
                Vx(xp, i, j, k) = (da + 2.*db + dc + dd + de)/nr;
            }
        }
    }

    return xp;
}

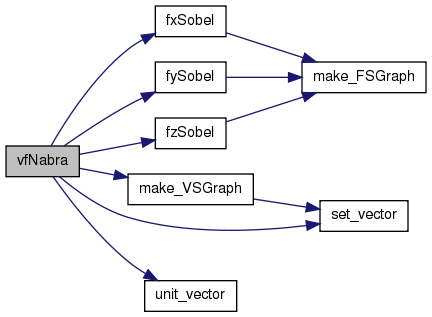

Here is the call graph for this function:

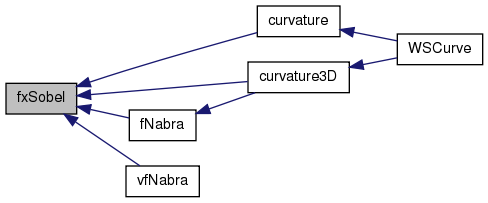

Here is the caller graph for this function:

FSGraph fxxSobel

(

FSGraph

vp

)

FSGraph fxxSobel(FSGraph vp)

グラフィックデータの x方向の2階微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 502 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature(), and curvature3D().

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    double da, db, dc, dd, de;
    double df, dg, dh, di, dj, dk, dl, dm;
    FSGraph px;

    memset(&px, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        px.state = JBXL_GRAPH_NODATA_ERROR;
        return px;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;

    if (zs<5) {
        px = make_FSGraph(xs, ys, 1);
        if (px.gp==NULL) return px;

        for (y=2; y<ys-2; y++) {
            cy = y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx-2*xs+2] - 2*vp.gp[cx-2*xs] + vp.gp[cx-2*xs-2];
                db = vp.gp[cx  -xs+2] - 2*vp.gp[cx  -xs] + vp.gp[cx  -xs-2];
                dc = vp.gp[cx     +2] - 2*vp.gp[cx]      + vp.gp[cx     -2];
                dd = vp.gp[cx  +xs+2] - 2*vp.gp[cx  +xs] + vp.gp[cx  +xs-2];
                de = vp.gp[cx+2*xs+2] - 2*vp.gp[cx+2*xs] + vp.gp[cx+2*xs-2];
                px.gp[cx] = (da + 4*db + 6*dc + 4*dd + de)/64.;
            }
        }
    }

    else {
        px = make_FSGraph(xs, ys, zs);
        if (px.gp==NULL) return px;

        for (z=2; z<zs-2; z++) {
            cz = z*ps;
            for (y=2; y<ys-2; y++) {
                cy = cz + y*xs;
                for (x=2; x<xs-2; x++) {
                    cx = cy + x;
                    da = vp.gp[cx   +2]    - 2*vp.gp[cx]       + vp.gp[cx-2];
                    db = vp.gp[cx+xs+2]    - 2*vp.gp[cx+xs]    + vp.gp[cx+xs-2];
                    dc = vp.gp[cx-xs+2]    - 2*vp.gp[cx-xs]    + vp.gp[cx-xs-2];
                    dd = vp.gp[cx+ps+2]    - 2*vp.gp[cx+ps]    + vp.gp[cx+ps-2];
                    de = vp.gp[cx-ps+2]    - 2*vp.gp[cx-ps]    + vp.gp[cx-ps-2];
                    df = vp.gp[cx+xs+ps+2] - 2*vp.gp[cx+xs+ps] + vp.gp[cx+xs+ps-2];
                    dg = vp.gp[cx+xs-ps+2] - 2*vp.gp[cx+xs-ps] + vp.gp[cx+xs-ps-2];
                    dh = vp.gp[cx-xs+ps+2] - 2*vp.gp[cx-xs+ps] + vp.gp[cx-xs+ps-2];
                    di = vp.gp[cx-xs-ps+2] - 2*vp.gp[cx-xs-ps] + vp.gp[cx-xs-ps-2];
                    dj = vp.gp[cx+2*xs+2]  - 2*vp.gp[cx+2*xs]  + vp.gp[cx+2*xs-2];
                    dk = vp.gp[cx-2*xs+2]  - 2*vp.gp[cx-2*xs]  + vp.gp[cx-2*xs-2];
                    dl = vp.gp[cx+2*ps+2]  - 2*vp.gp[cx+2*ps]  + vp.gp[cx+2*ps-2];
                    dm = vp.gp[cx-2*ps+2]  - 2*vp.gp[cx-2*ps]  + vp.gp[cx-2*ps-2];
                    px.gp[cx] = (8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144.;
                }
            }
        }
    }

    return px;
}

Here is the call graph for this function:

Here is the caller graph for this function:

FSGraph fySobel

(

FSGraph

vp

)

FSGraph fySobel(FSGraph vp)

グラフィックデータの y方向微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 243 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, Vx, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature(), curvature3D(), fNabra(), and vfNabra().

{
    int    i, j, k;
    double da, db, dc, dd, de, nr;
    FSGraph xp;

    memset(&xp, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }

    if (vp.zs<=0) vp.zs = 1;
    xp = make_FSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=0; k<vp.zs; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i-1, j+1, k) - Vx(vp, i-1, j-1, k);
                db = Vx(vp, i,   j+1, k) - Vx(vp, i,   j-1, k);
                dc = Vx(vp, i+1, j+1, k) - Vx(vp, i+1, j-1, k);
                if (k==0 || k==vp.zs-1) {
                    dd = de = 0.;
                    nr = 8.;
                }
                else {
                    dd = Vx(vp, i, j+1, k-1) - Vx(vp, i, j-1, k-1);
                    de = Vx(vp, i, j+1, k+1) - Vx(vp, i, j-1, k+1);
                    nr = 12.;
                }
                Vx(xp, i, j, k) = (da + 2.*db + dc + dd + de)/nr;
            }
        }
    }

    return xp;
}

Here is the call graph for this function:

Here is the caller graph for this function:

FSGraph fyySobel

(

FSGraph

vp

)

FSGraph fyySobel(FSGraph vp)

グラフィックデータの y方向の2階微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 658 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature(), and curvature3D().

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    double da, db, dc, dd, de;
    double df, dg, dh, di, dj, dk, dl, dm;
    FSGraph py;

    memset(&py, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        py.state = JBXL_GRAPH_NODATA_ERROR;
        return py;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;

    if (zs<5) {
        py = make_FSGraph(xs, ys, 1);
        if (py.gp==NULL) return py;

        for (y=2; y<ys-2; y++) {
            cy = y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx+2*xs-2] - 2*vp.gp[cx-2] + vp.gp[cx-2*xs-2];
                db = vp.gp[cx+2*xs-1] - 2*vp.gp[cx-1] + vp.gp[cx-2*xs-1];
                dc = vp.gp[cx+2*xs]   - 2*vp.gp[cx]   + vp.gp[cx-2*xs];
                dd = vp.gp[cx+2*xs+1] - 2*vp.gp[cx+1] + vp.gp[cx-2*xs+1];
                de = vp.gp[cx+2*xs+2] - 2*vp.gp[cx+2] + vp.gp[cx-2*xs+2];
                py.gp[cx] = (da + 4*db + 6*dc + 4*dd + de)/64.;
            }
        }
    }
    else {
        py = make_FSGraph(xs, ys, zs);
        if (py.gp==NULL) return py;

        for (z=2; z<zs-2; z++) {
            cz = z*ps;
            for (y=2; y<ys-2; y++) {
                cy = cz + y*xs;
                for (x=2; x<xs-2; x++) {
                    cx = cy + x;
                    da = vp.gp[cx+2*xs]      - 2*vp.gp[cx]      + vp.gp[cx-2*xs];
                    db = vp.gp[cx+1+2*xs]    - 2*vp.gp[cx+1]    + vp.gp[cx+1-2*xs];
                    dc = vp.gp[cx-1+2*xs]    - 2*vp.gp[cx-1]    + vp.gp[cx-1-2*xs];
                    dd = vp.gp[cx+ps+2*xs]   - 2*vp.gp[cx+ps]   + vp.gp[cx+ps-2*xs];
                    de = vp.gp[cx-ps+2*xs]   - 2*vp.gp[cx-ps]   + vp.gp[cx-ps-2*xs];
                    df = vp.gp[cx+1+ps+2*xs] - 2*vp.gp[cx+1+ps] + vp.gp[cx+1+ps-2*xs];
                    dg = vp.gp[cx+1-ps+2*xs] - 2*vp.gp[cx+1-ps] + vp.gp[cx+1-ps-2*xs];
                    dh = vp.gp[cx-1+ps+2*xs] - 2*vp.gp[cx-1+ps] + vp.gp[cx-1+ps-2*xs];
                    di = vp.gp[cx-1-ps+2*xs] - 2*vp.gp[cx-1-ps] + vp.gp[cx-1-ps-2*xs];
                    dj = vp.gp[cx+2+2*xs]    - 2*vp.gp[cx+2]    + vp.gp[cx+2-2*xs];
                    dk = vp.gp[cx-2+2*xs]    - 2*vp.gp[cx-2]    + vp.gp[cx-2-2*xs];
                    dl = vp.gp[cx+2*ps+2*xs] - 2*vp.gp[cx+2*ps] + vp.gp[cx+2*ps-2*xs];
                    dm = vp.gp[cx-2*ps+2*xs] - 2*vp.gp[cx-2*ps] + vp.gp[cx-2*ps-2*xs];
                    py.gp[cx] = (8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144.;
                }
            }
        }
    }

    return py;
}

Here is the call graph for this function:

Here is the caller graph for this function:

FSGraph fzSobel

(

FSGraph

vp

)

FSGraph fzSobel(FSGraph vp)

グラフィックデータの z方向微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 358 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, Vx, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature3D(), fNabra(), and vfNabra().

{
    int    i, j, k;
    double da, db, dc, dd, de;
    FSGraph xp;

    memset(&xp, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }

    if (vp.zs<=1) {
        //fprintf(stderr,"FZSOBEL: no 3D data inputed.\n");
        xp.state = JBXL_GRAPH_IVDARG_ERROR;
        return xp;
    }

    xp = make_FSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=1; k<vp.zs-1; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i-1, j, k+1) - Vx(vp, i-1, j, k-1);
                db = Vx(vp, i+1, j, k+1) - Vx(vp, i+1, j, k-1);
                dc = Vx(vp, i,   j, k+1) - Vx(vp, i,   j, k-1);
                dd = Vx(vp, i, j-1, k+1) - Vx(vp, i, j-1, k-1);
                de = Vx(vp, i, j+1, k+1) - Vx(vp, i, j+1, k-1);
                Vx(xp, i, j, k) = (da + db + 2.*dc + dd + de)/12.;
            }
        }
    }

    for (j=1; j<vp.ys-1; j++) {
        for (i=1; i<vp.xs-1; i++) {
            da = Vx(vp, i-1, j, 1) - Vx(vp, i-1, j, 0);
            db = Vx(vp, i+1, j, 1) - Vx(vp, i+1, j, 0);
            dc = Vx(vp, i,   j, 1) - Vx(vp, i,   j, 0);
            dd = Vx(vp, i, j-1, 1) - Vx(vp, i, j-1, 0);
            de = Vx(vp, i, j+1, 1) - Vx(vp, i, j+1, 0);
            Vx(xp, i, j, 0) = (da + db + 2.*dc + dd + de)/12.;

            da = Vx(vp, i-1, j, vp.zs-1) - Vx(vp, i-1, j, vp.zs-2);
            db = Vx(vp, i+1, j, vp.zs-1) - Vx(vp, i+1, j, vp.zs-2);
            dc = Vx(vp, i,   j, vp.zs-1) - Vx(vp, i,   j, vp.zs-2);
            dd = Vx(vp, i, j-1, vp.zs-1) - Vx(vp, i, j-1, vp.zs-2);
            de = Vx(vp, i, j+1, vp.zs-1) - Vx(vp, i, j+1, vp.zs-2);
            Vx(xp, i, j, vp.zs-1) = (da + db + 2.*dc + dd + de)/12.;
        }
    }

    return xp;
}

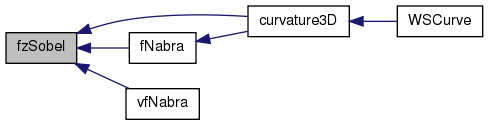

Here is the call graph for this function:

Here is the caller graph for this function:

FSGraph fzzSobel

(

FSGraph

vp

)

FSGraph fzzSobel(FSGraph vp)

グラフィックデータの z方向の2階微分(Sobel)を実数計算する． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となる double型グラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 843 of file gmt.c.

References FSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_FSGraph(), FSGraph::state, FSGraph::xs, FSGraph::ys, and FSGraph::zs.

Referenced by curvature3D().

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    double da, db, dc, dd, de;
    double df, dg, dh, di, dj, dk, dl, dm;
    FSGraph pz;

    memset(&pz, 0, sizeof(FSGraph));
    if (vp.gp==NULL) {
        pz.state = JBXL_GRAPH_NODATA_ERROR;
        return pz;
    }

    if (vp.zs<5) {
        //fprintf(stderr,"FZZSOBEL: no 3D data inputed.\n");
        pz.state = JBXL_GRAPH_IVDARG_ERROR;
        return pz;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;
    pz = make_FSGraph(xs, ys, zs);
    if (pz.gp==NULL) return pz;

    for (z=2; z<zs-2; z++) {
        cz = z*ps;
        for (y=2; y<ys-2; y++) {
            cy = cz + y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx     +2*ps] - 2*vp.gp[cx]      + vp.gp[cx     -2*ps];
                db = vp.gp[cx+1   +2*ps] - 2*vp.gp[cx+1]    + vp.gp[cx+1   -2*ps];
                dc = vp.gp[cx-1   +2*ps] - 2*vp.gp[cx-1]    + vp.gp[cx-1   -2*ps];
                dd = vp.gp[cx  +xs+2*ps] - 2*vp.gp[cx  +xs] + vp.gp[cx  +xs-2*ps];
                de = vp.gp[cx  -xs+2*ps] - 2*vp.gp[cx  -xs] + vp.gp[cx  -xs-2*ps];
                df = vp.gp[cx+1+xs+2*ps] - 2*vp.gp[cx+1+xs] + vp.gp[cx+1+xs-2*ps];
                dg = vp.gp[cx+1-xs+2*ps] - 2*vp.gp[cx+1-xs] + vp.gp[cx+1-xs-2*ps];
                dh = vp.gp[cx-1+xs+2*ps] - 2*vp.gp[cx-1+xs] + vp.gp[cx-1+xs-2*ps];
                di = vp.gp[cx-1-xs+2*ps] - 2*vp.gp[cx-1-xs] + vp.gp[cx-1-xs-2*ps];
                dj = vp.gp[cx+2   +2*ps] - 2*vp.gp[cx+2]    + vp.gp[cx+2   -2*ps];
                dk = vp.gp[cx-2   +2*ps] - 2*vp.gp[cx-2]    + vp.gp[cx-2   -2*ps];
                dl = vp.gp[cx+2*xs+2*ps] - 2*vp.gp[cx+2*xs] + vp.gp[cx+2*xs-2*ps];
                dm = vp.gp[cx-2*xs+2*ps] - 2*vp.gp[cx-2*xs] + vp.gp[cx-2*xs-2*ps];
                pz.gp[cx] = (8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144.;
            }
        }
    }

    cz = ps;
    for (y=2; y<ys-2; y++) {
        cy = cz + y*xs;
        for (x=2; x<xs-2; x++) {
            cx = cy + x;
            da = vp.gp[cx   +2*ps]   - 2*vp.gp[cx];
            db = vp.gp[cx+1 +2*ps]   - 2*vp.gp[cx+1];
            dc = vp.gp[cx-1 +2*ps]   - 2*vp.gp[cx-1];
            dd = vp.gp[cx+xs+2*ps]   - 2*vp.gp[cx+xs];
            de = vp.gp[cx-xs+2*ps]   - 2*vp.gp[cx-xs];
            df = vp.gp[cx+1+xs+2*ps] - 2*vp.gp[cx+1+xs];
            dg = vp.gp[cx+1-xs+2*ps] - 2*vp.gp[cx+1-xs];
            dh = vp.gp[cx-1+xs+2*ps] - 2*vp.gp[cx-1+xs];
            di = vp.gp[cx-1-xs+2*ps] - 2*vp.gp[cx-1-xs];
            dj = vp.gp[cx+2   +2*ps] - 2*vp.gp[cx+2];
            dk = vp.gp[cx-2   +2*ps] - 2*vp.gp[cx-2];
            dl = vp.gp[cx+2*xs+2*ps] - 2*vp.gp[cx+2*xs];
            dm = vp.gp[cx-2*xs+2*ps] - 2*vp.gp[cx-2*xs];
            pz.gp[cx] = (8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144.;
        }
    }

    cz = (zs-2)*ps;
    for (y=2; y<ys-2; y++) {
        cy = cz + y*xs;
        for (x=2; x<xs-2; x++) {
            cx = cy + x;
            da = - 2*vp.gp[cx]      + vp.gp[cx   -2*ps];
            db = - 2*vp.gp[cx+1]    + vp.gp[cx+1 -2*ps];
            dc = - 2*vp.gp[cx-1]    + vp.gp[cx-1 -2*ps];
            dd = - 2*vp.gp[cx+xs]   + vp.gp[cx+xs-2*ps];
            de = - 2*vp.gp[cx-xs]   + vp.gp[cx-xs-2*ps];
            df = - 2*vp.gp[cx+1+xs] + vp.gp[cx+1+xs-2*ps];
            dg = - 2*vp.gp[cx+1-xs] + vp.gp[cx+1-xs-2*ps];
            dh = - 2*vp.gp[cx-1+xs] + vp.gp[cx-1+xs-2*ps];
            di = - 2*vp.gp[cx-1-xs] + vp.gp[cx-1-xs-2*ps];
            dj = - 2*vp.gp[cx+2]    + vp.gp[cx+2   -2*ps];
            dk = - 2*vp.gp[cx-2]    + vp.gp[cx-2   -2*ps];
            dl = - 2*vp.gp[cx+2*xs] + vp.gp[cx+2*xs-2*ps];
            dm = - 2*vp.gp[cx-2*xs] + vp.gp[cx-2*xs-2*ps];
            pz.gp[cx] = (8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144.;
        }
    }

    return pz;
}

Here is the call graph for this function:

Here is the caller graph for this function:

FMask gauss_mask	(	double	sig,
		int	ms,
		int	md
	)

FMask gauss_mask(double sig, int ms, int md)

ガウシアン処理用のフィルタをつくり出す．

Parameters:

	sig	ガウス関数のσ．
	ms	フィルタの大きさ．
	md	モード．2: 2次元．その他: 3次元

Returns:

ガウシアン用フィルタ

Definition at line 1582 of file gmt.c.

References FMask::imask, Min, FMask::mode, FMask::msize, FMask::nfact, and SINTMAX.

{
    int    xx, yy, zz, ns, cp, dx, ps, sw;
    double min, *fm;
    FMask mask;

    mask.mode  = 0;
    mask.msize = 0;
    mask.imask = NULL;

    if (md<=2) {    // 2D
        md = 2;
        ps = ms*ms;
        sw = 0;
    }
    else {          // 3D
        md = 3;
        ps = ms*ms*ms;
        sw = 1;
    }

    ns  = ms/2;
    min = (double)SINTMAX;
    fm = (double*)malloc(ps*sizeof(double));
    mask.imask = (int*)malloc(ps*sizeof(int));
    if (fm==NULL || mask.imask==NULL) {
        free(fm);
        free(mask.imask);
        memset(&mask, 0, sizeof(FMask));
        return mask;
    }

    for (zz=-ns*sw; zz<=ns*sw; zz++) {
        for (yy=-ns; yy<=ns; yy++) {
            for (xx=-ns; xx<=ns; xx++) {
                cp = (zz+ns)*ms*ms*sw + (yy+ns)*ms + (xx+ns);
                fm[cp] = exp(-(xx*xx+yy*yy+zz*zz)/(sig*sig));
                if (fm[cp]!=0.0) min = Min(min, fm[cp]);
            }
        }
    }

    dx = 0;
    for (xx=0; xx<ps; xx++) {
        mask.imask[xx] = (int)(fm[xx]/min+0.5);
        dx += mask.imask[xx];
    }

    mask.msize = ms;
    mask.nfact = dx;
    mask.mode  = md;

    free(fm);
    return mask;
}

WSGraph imask	(	WSGraph	xp,
		FMask	mask
	)

WSGraph imask(WSGraph xp, FMask mask)

フィルタ処理を行なう．

Parameters:

	xp	対象となるグラフィックデータ構造体．
	mask	処理用マスク．

Returns:

マスク処理されたグラフィックデータ．

Definition at line 1650 of file gmt.c.

References WSGraph::gp, FMask::imask, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), Min, FMask::mode, FMask::msize, FMask::nfact, SINTMAX, WSGraph::state, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int    i, x, y, z, cx;
    int    xx, yy, zz, cp, cw, sw;
    int    kc, xc, xs, ps, pm, mz, zc;
    int    ms, nf, min;
    double dd;
    WSGraph vp;

    memset(&vp, 0, sizeof(WSGraph));
    if (xp.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    if (xp.zs<=1 && mask.mode>2) {
        //fprintf(stderr, "IMASK: mismach mask dimension %d %d\n", xp.zs, mask.mode);
        vp.state = JBXL_GRAPH_IVDARG_ERROR;
        return vp;
    }

    nf = mask.nfact;
    ms = mask.msize;
    if (mask.mode==2) {
        sw = 0;
        pm = ms*ms;
    }
    else {
        sw = 1;
        pm = ms*ms*ms;
    }

    mz = Min(ms, xp.zs);
    kc = pm/2;
    zc = mz/2;
    xc = ms/2;
    xs = xp.xs;
    ps = xp.xs*xp.ys;

    min = SINTMAX;
    for (i=0; i<xp.xs*xp.ys; i++) min = Min(min, xp.gp[i]);
    vp = make_WSGraph(xp.xs, xp.ys, 1);
    if (vp.gp==NULL) return vp;

    for (i=0; i<vp.xs*vp.ys; i++) vp.gp[i] = min;

    z = xp.zs/2;
    for (y=xc; y<xp.ys-xc; y++)
    for (x=xc; x<xp.xs-xc; x++) {
        cx = z*ps + y*xs + x;
        dd = 0.0;
        for (zz=-zc*sw; zz<=zc*sw; zz++)
        for (yy=-xc; yy<=xc; yy++)
        for (xx=-xc; xx<=xc; xx++) {
            cp = kc + xx + yy*ms + zz*ms*ms;
            cw = cx + xx + yy*xs + zz*ps;
            dd = dd + (double)xp.gp[cw]*mask.imask[cp];
        }
        vp.gp[y*xs + x] = (sWord)(dd/nf);
    }
    return vp;
}

Here is the call graph for this function:

WSGraph Laplacian	(	WSGraph	vp,
		int	mode
	)

WSGraph Laplacian(WSGraph vp, int mode)

2Dグラフィックデータのラプラシアンを計算する．

Parameters:

	vp	計算対象となるグラフィックデータ構造体．
	mode	モード． 4: 4近傍ラプラシアン
	mode	8: 8近傍ラプラシアン
	mode	その他: Sobelのラプラシアン(24近傍)

Returns:

処理されたグラフィックデータ．

Definition at line 26 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), Px, WSGraph::state, WSGraph::xs, and WSGraph::ys.

Referenced by edge_enhance().

{
    int  i, j;
    int  da, db, dc, dd, de, df, dg, dh;
    WSGraph lp;

    lp = make_WSGraph(vp.xs, vp.ys, 1);
    if (lp.gp==NULL) return lp;

    if (vp.gp==NULL) {
        lp.state = JBXL_GRAPH_NODATA_ERROR;
        return lp;
    }

    if (mode==4) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Px(vp, i+1, j) + Px(vp, i-1, j);
                db = Px(vp, i, j);
                dc = Px(vp, i, j+1) + Px(vp, i, j-1);
                Px(lp, i, j) = da - 4*db + dc;
            }
        }
    }

    else if (mode==8) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Px(vp, i+1, j) + Px(vp, i-1, j);
                db = Px(vp, i, j+1) + Px(vp, i, j-1);
                dc = Px(vp, i, j);
                dd = Px(vp, i+1, j+1) + Px(vp, i-1, j+1);
                de = Px(vp, i+1, j-1) + Px(vp, i-1, j-1);
                Px(lp, i, j) = da + db - 8*dc + dd + de;
            }
        }
    }

    else {
        for (j=2; j<vp.ys-2; j++) {
            for (i=2; i<vp.xs-2; i++) {
                da = Px(vp, i, j);
                db = Px(vp, i+1, j)   + Px(vp, i-1, j) + Px(vp, i, j+1) + Px(vp, i, j-1);
                dc = Px(vp, i-1, j-2) + Px(vp, i, j-2) + Px(vp, i+1, j-2);
                dd = Px(vp, i-1, j+2) + Px(vp, i, j+2) + Px(vp, i+1, j+2);
                de = Px(vp, i-2, j-1) + Px(vp, i-2, j) + Px(vp, i-2, j+1);
                df = Px(vp, i+2, j-1) + Px(vp, i+2, j) + Px(vp, i+2, j+1);
                dg = Px(vp, i-2, j-2) + Px(vp, i+2, j-2);
                dh = Px(vp, i-2, j+2) + Px(vp, i+2, j+2);
                Px(lp, i, j) = (sWord)((-24*da-8*db+4*(dc+dd+de+df)+2*(dg+dh))/64);
            }
        }
    }

    return lp;
}

Here is the call graph for this function:

Here is the caller graph for this function:

WSGraph median	(	WSGraph	xp,
		int	ms
	)

WSGraph median(WSGraph xp, int ms)

メディアンフィルタ処理を行なう．3D処理可．

Parameters:

	xp	対象となるグラフィックデータ構造体．
	ms	フィルタの大きさ．

Returns:

メディアンフィルタ処理されたグラフィックデータ．

Definition at line 1725 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_MEMORY_ERROR, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), Min, WSGraph::state, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int   i, j, x, y, z;
    int   xx, yy, zz, cw, ux, mz;
    int   kc, xc, zc, xs, ps, cx;
    WSGraph vp;
    sWord   *me;

    memset(&vp, 0, sizeof(WSGraph));
    if (xp.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    mz = Min(ms, xp.zs);
    me = (sWord*)malloc(ms*ms*mz*sizeof(sWord));
    if (me==NULL) {
        vp.state = JBXL_GRAPH_MEMORY_ERROR;
        return vp;
    }

    kc = ms*ms*mz/2;
    xc = ms/2;
    zc = mz/2;
    xs = xp.xs;
    ps = xp.xs*xp.ys;
    vp = make_WSGraph(vp.xs, vp.ys, vp.zs);
    if (vp.gp==NULL) {
        free(me);
        return vp;
    }

    z = xp.zs/2;
    for(y=xc; y<xp.ys-xc; y++) {
        for(x=xc; x<xp.xs-xc; x++) {
            cx = z*ps + y*xs + x;
            i  = 0;
            for (zz=-zc; zz<=zc; zz++) {
                for (yy=-xc; yy<=xc; yy++) {
                    for (xx=-xc; xx<=xc; xx++) {
                        cw = cx + xx + yy*xs + zz*ps;
                        me[i++] = xp.gp[cw];
                    }
                }
            }

            for (i=0; i<ms*ms*mz-1; i++) {
                for (j=i+1; j<ms*ms*mz; j++) {
                    if (me[i]<me[j]) {
                        ux  = me[i];
                        me[i] = me[j];
                        me[j] = ux;
                    }
                }
            }
            vp.gp[cx-z*ps] = me[kc];
        }
    }

    free(me);
    return vp;
}

Here is the call graph for this function:

WSGraph Nabra

(

WSGraph

vp

)

WSGraph Nabra(WSGraph vp)

グラフィックデータの ナブラの絶対値を計算する(Sobel)．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

ナブラ．sWord型グラフィックデータ．

Definition at line 1105 of file gmt.c.

References free_WSGraph, WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, WSGraph::xs, xSobel(), WSGraph::ys, ySobel(), WSGraph::zs, and zSobel().

{
    int   i, xs, ys, zs;
    int   xx, yy, zz;
    WSGraph px, py, pz, pn;

    memset(&pn, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        pn.state = JBXL_GRAPH_NODATA_ERROR;
        return pn;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    pn = make_WSGraph(xs, ys, zs);
    if (pn.gp==NULL) return pn;

    px = xSobel(vp);
    if (px.gp==NULL) {
        free_WSGraph(&pn);
        pn.state = px.state;
        return pn;
    }
    py = ySobel(vp);
    if (py.gp==NULL) {
        free_WSGraph(&pn);
        free(px.gp);
        pn.state = py.state;
        return pn;
    }

    if (vp.zs<3) {
        for (i=0; i<xs*ys; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            pn.gp[i] = (sWord)sqrt(xx*xx + yy*yy);
        }
    }
    else {
        pz = zSobel(vp);
        if (pz.gp==NULL) {
            free_WSGraph(&pn);
            free(px.gp);
            free(py.gp);
            pn.state = pz.state;
            return pn;
        }

        for (i=0; i<xs*ys*zs; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            zz = pz.gp[i];
            pn.gp[i] = (sWord)sqrt(xx*xx + yy*yy + zz*zz);
        }
        free(pz.gp);
    }

    free(px.gp);
    free(py.gp);

    return pn;
}

Here is the call graph for this function:

int out_round	(	WSGraph	vp,
		int	x,
		int	y,
		IRBound *	rb,
		int	mode
	)

int out_round(WSGraph vp, int x, int y, IRBound* rb, int mode)

2Dグラフィックデータ構造体vpの(x,y)にあるオブジェクトの周囲長を得る．

Parameters:

	vp	操作対象となる 2D グラフィックデータ構造体．
	x,y	情報を得たいオブジェクトの左上縁の座標． この座標の左横に情報を得たいオブジェクトの一部が在ってはいけない．
[out]	rb	オブジェクトの情報を格納する境界構造体． rb->xmin: オブジェクトの x座標の最小値． rb->xmax: オブジェクトの x座標の最大値． rb->ymin: オブジェクトの y座標の最小値． rb->ymax: オブジェクトの y座標の最大値． rb->misc: 8近傍モード時の斜めの距離の回数． 周囲長を 戻り値 + rb->misc*{sqrt(2.)-1} で計算する場合もある．
	mode	モード．8: 8近傍探索．その他: 4近傍探索．

Returns:

オブジェクトの周囲長．ただし，8近傍モードの場合，斜めの距離も1と数える．rb->misc 参照．

Attention:

注: 1ドットの長さは1と数える．プログラム中で EGMAX+1 を使用．

Definition at line 2047 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_IVDMODE_ERROR, JBXL_GRAPH_IVDPARAM_ERROR, Max, Min, IRBound::misc, OFF, ON, IRBound::xmax, IRBound::xmin, WSGraph::xs, IRBound::ymax, and IRBound::ymin.

{
    int  i, j, sp, cp, w, ll, ss;
    int  xx, yy, vx, vy, ix, eflg=OFF;
    int  r8[8]={-1, 1, -1, -1, 1, -1, 1, 1};
    int  r4[8]={ 0, 1, -1,  0, 0, -1, 1, 0};
    int* cc;

    if (vp.gp==NULL) return JBXL_GRAPH_IVDARG_ERROR;

    i = y*vp.xs + x;
    rb->xmax = rb->xmin = x;
    rb->ymax = rb->ymin = y;
    sp = cp = i;
    ss = 0;
    ll = 0;
    vx = 1;
    vy = 0;

    if (vp.gp[sp]==0 || sp==0) {
        //fprintf(stderr,"OUT_ROUND: irregular start point!! sp = %d\n",sp);
        return JBXL_GRAPH_IVDPARAM_ERROR;
    }

    if (mode==8){
        ix = 8;
        cc = r8;
    }
    else if (mode==4) {
        ix = 4;
        cc = r4;
    }
    else {
        //fprintf(stderr,"OUT_ROUND: invalid mode = %d!!\n",mode);
        return JBXL_GRAPH_IVDMODE_ERROR;
    }

    do {
        w  = abs(vx)+abs(vy);
        xx = (vx*cc[0]+vy*cc[1])/w;
        yy = (vx*cc[2]+vy*cc[3])/w;
        for (j=1; j<=ix; j++) {
            if (vp.gp[cp+yy*vp.xs+xx]!=0) {
                vx = xx;
                vy = yy;
                cp = cp + yy*vp.xs + xx;
                xx = cp%vp.xs;
                yy = (cp-xx)/vp.xs;
                rb->xmax = Max(rb->xmax, xx);
                rb->ymax = Max(rb->ymax, yy);
                rb->xmin = Min(rb->xmin, xx);
                rb->ymin = Min(rb->ymin, yy);
                break;
            }
            else {
                if(sp==cp && xx==-1 && yy==0) {
                    eflg = ON;
                    break;
                }
                w  = abs(xx)+abs(yy);
                vx = (xx*cc[4]+yy*cc[5])/w;
                vy = (xx*cc[6]+yy*cc[7])/w;
                xx = vx;
                yy = vy;
            }
        }
        ll++;
        if (abs(vx)+abs(vy)==2) ss++;
        //
    } while(eflg==OFF);

    if (mode==4) ss = 0;
    (rb->xmax)++;
    (rb->ymax)++;
    (rb->xmin)--;
    (rb->ymin)--;
    rb->misc = ss;

    return ll;
}

WSGraph to2d	(	WSGraph	gd,
		int	mode
	)

WSGraph to2d(WSGraph gd, int mode)

3Dグラフィックを2Dへ射影する(MIP画像)．

Parameters:

	gd	操作対象となる3Dグラフィックデータ構造体．
	mode	モード． SIDEX_VIEW: x方向から射影する． SIDEY_VIEW: y方向から射影する． SIDEZ_VIEW: z方向から射影する． TOP_VIEW: z方向から射影する． TOP_VIEW_DEPTH: z方向から射影する．ただし,z軸に比例して画像に濃淡を付加する．

Returns:

射影された2Dグラフィックデータ(WSGraph, MIP画像)

Definition at line 1805 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), Max, SIDEX_VIEW, SIDEY_VIEW, WSGraph::state, TOP_VIEW, TOP_VIEW_DEPTH, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  i, j, k, psize;
    int  cx, cy, cz, cw, xx, yy;
    WSGraph vp;

    memset(&vp, 0, sizeof(WSGraph));
    if (gd.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    psize = gd.xs*gd.ys;

    if (mode==TOP_VIEW) {
        vp = make_WSGraph(gd.xs, gd.ys, 1);
        if (vp.gp==NULL) return vp;

        for (k=0; k<gd.zs; k++) {
            cz = k*psize;
            for (j=0; j<gd.ys; j++) {
                cy = j*gd.xs;
                for (i=0; i<gd.xs; i++) {
                    cx = cz + cy + i;
                    cw = cy + i;
                    if (gd.gp[cx]!=0) vp.gp[cw] = Max(vp.gp[cw], gd.gp[cx]);
                }
            }
        }
    }

    else if (mode==TOP_VIEW_DEPTH) {
        vp = make_WSGraph(gd.xs, gd.ys, 1);
        if (vp.gp==NULL) return vp;

        for (k=0; k<gd.zs; k++) {
            cz = k*psize;
            for (j=0; j<gd.ys; j++) {
                cy = j*gd.xs;
                for (i=0; i<gd.xs; i++) {
                    cx = cz + cy + i;
                    cw = cy + i;
                    if (gd.gp[cx]!=0) vp.gp[cw] = Max(vp.gp[cw], (gd.zs-k)+100);
                }
            }
        }
    }

    else if (mode==SIDEX_VIEW) {
        vp = make_WSGraph(gd.ys, gd.zs, 1);
        if (vp.gp==NULL) return vp;

        for (k=0; k<gd.zs; k++) {
            cz = k*psize;
            yy = k;
            for (j=0; j<gd.ys; j++) {
                cy = j*gd.xs;
                xx = gd.ys - 1 - j;
                for (i=0; i<gd.xs; i++) {
                    cx = cz + cy + i;
                    cw = yy*vp.xs + xx;
                    if (gd.gp[cx]!=0) vp.gp[cw] = Max(vp.gp[cw], gd.gp[cx]);
                }
            }
        }
    }

    else if (mode==SIDEY_VIEW) {
        vp = make_WSGraph(gd.xs, gd.zs, 1);
        if (vp.gp==NULL) return vp;

        for (k=0; k<gd.zs; k++) {
            cz = k*psize;
            yy = k;
            for (j=0; j<gd.ys; j++) {
                cy = j*gd.xs;
                for (i=0; i<gd.xs; i++) {
                    cx = cz + cy + i;
                    xx = i;
                    cw = yy*vp.xs + xx;
                    if (gd.gp[cx]!=0) vp.gp[cw] = Max(vp.gp[cw], gd.gp[cx]);
                }
            }
        }
    }

    else {
        memset(&vp, 0, sizeof(WSGraph));
        vp.state = JBXL_GRAPH_IVDARG_ERROR;
        //fprintf(stderr,"TO2D: unknown mode = %d.\n",mode);
    }

    return vp;
}

Here is the call graph for this function:

VSGraph vfNabra

(

FSGraph

vp

)

VSGraph vfNabra(FSGraph vp)

グラフィックデータの ナブラを実数計算する(Sobel)． 精度が上昇するが時間がかかる．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

ナブラ．ベクトル型グラフィックデータ．

Definition at line 1028 of file gmt.c.

References free_VSGraph, fxSobel(), fySobel(), fzSobel(), VSGraph::gp, FSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_VSGraph(), set_vector(), FSGraph::state, VSGraph::state, unit_vector(), FSGraph::xs, FSGraph::ys, and FSGraph::zs.

{
    int    i, xs, ys, zs;
    double xx, yy, zz;
    FSGraph px, py, pz;
    VSGraph pn;

    memset(&pn, 0, sizeof(VSGraph));
    if (vp.gp==NULL) {
        pn.state = JBXL_GRAPH_NODATA_ERROR;
        return pn;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    pn = make_VSGraph(xs, ys, zs);
    if (pn.gp==NULL) return pn;

    px = fxSobel(vp);
    if (px.gp==NULL) {
        free_VSGraph(&pn);
        pn.state = px.state;
        return pn;
    }
    py = fySobel(vp);
    if (py.gp==NULL) {
        free_VSGraph(&pn);
        free(px.gp);
        pn.state = py.state;
        return pn;
    }

    if (vp.zs<3) {
        for (i=0; i<xs*ys; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            pn.gp[i] = set_vector(xx, yy, 0.0);
            unit_vector(pn.gp[i]);
        }
    }
    else {
        pz = fzSobel(vp);
        if (pz.gp==NULL) {
            free_VSGraph(&pn);
            free(px.gp);
            free(py.gp);
            pn.state = pz.state;
            return pn;
        }

        for (i=0; i<xs*ys*zs; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            zz = pz.gp[i];
            pn.gp[i] = set_vector(xx, yy, zz);
            unit_vector(pn.gp[i]);
        }
        free(pz.gp);
    }

    free(px.gp);
    free(py.gp);

    return pn;
}

Here is the call graph for this function:

VSGraph vNabra

(

WSGraph

vp

)

VSGraph vNabra(WSGraph vp)

グラフィックデータの ナブラを計算する(Sobel)．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

ナブラ．ベクトル型グラフィックデータ．

Definition at line 950 of file gmt.c.

References free_VSGraph, VSGraph::gp, WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_VSGraph(), set_vector(), WSGraph::state, VSGraph::state, unit_vector(), WSGraph::xs, xSobel(), WSGraph::ys, ySobel(), WSGraph::zs, and zSobel().

{
    int   i, xs, ys, zs;
    double  xx, yy, zz;
    WSGraph px, py, pz;
    VSGraph pn;

    memset(&pn, 0, sizeof(VSGraph));
    if (vp.gp==NULL) {
        pn.state = JBXL_GRAPH_NODATA_ERROR;
        return pn;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    pn = make_VSGraph(xs, ys, zs);
    if (pn.gp==NULL) return pn;

    px = xSobel(vp);
    if (px.gp==NULL) {
        free_VSGraph(&pn);
        pn.state = px.state;
        return pn;
    }
    py = ySobel(vp);
    if (py.gp==NULL) {
        free_VSGraph(&pn);
        free(px.gp);
        pn.state = py.state;
        return pn;
    }

    if (vp.zs<3) {
        for (i=0; i<xs*ys; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            pn.gp[i] = set_vector(xx, yy, 0.0);
            unit_vector(pn.gp[i]);
        }
    }
    else {
        pz = zSobel(vp);
        if (pz.gp==NULL) {
            free_VSGraph(&pn);
            free(px.gp);
            free(py.gp);
            pn.state = pz.state;
            return pn;
        }

        for (i=0; i<xs*ys*zs; i++) {
            xx = px.gp[i];
            yy = py.gp[i];
            zz = pz.gp[i];
            pn.gp[i] = set_vector(xx, yy, zz);
            unit_vector(pn.gp[i]);
        }
        free(pz.gp);
    }

    free(px.gp);
    free(py.gp);

    return pn;
}

Here is the call graph for this function:

WSGraph WSCurve	(	WSGraph	gx,
		int	mode,
		int	cc
	)

WSGraph WSCurve(WSGraph gx, int mode, int cc)

曲面の形状をグラフィックデータ(輝度値)に変換する．

Parameters:

	gx	操作対象となる曲面形状情報3の入ったグラフィックデータ．
	mode	輝度値に変換する曲面の形状．指定できる形状は ALL, FLAT, PIT, SADDLE_RIDGE, SADDLE_VALLEY, NONE_SHAPE, MINIMAL, RIDGE, VALLEY, PEAK. ALLを指定した場合,形状は違った輝度値に変換される．
	cc	modeに ALLを指定しなかった場合,指定された曲面をこの輝度値に変換する．

Returns:

曲面の形状情報を代入した sWord型グラフィックデータ．

Note:

FLAT=500, PIT=1000, SADDLE_RIDGE=1500, SADDLE_VALLEY=2000, NONE_SHAPE=2500, MINIMAL=3000, RIDGE=3500, VALLEY=4000, PEAK=4500

Definition at line 1484 of file gmt.c.

References ALL, curv2WSGraph(), curvature(), curvature3D(), FLAT, freeNull, VSGraph::gp, FSGraph::gp, WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, MINIMAL, NONE_SHAPE, PEAK, PIT, RIDGE, SADDLE_RIDGE, SADDLE_VALLEY, WSGraph::state, VALLEY, W2FSGraph(), WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  i;
    FSGraph wp;
    VSGraph xp;
    WSGraph vp;

    memset(&vp, 0, sizeof(WSGraph));
    if (gx.gp==NULL) {
        vp.state = JBXL_GRAPH_NODATA_ERROR;
        return vp;
    }

    wp = W2FSGraph(gx);
    if (gx.zs<5) xp = curvature(wp);
    else         xp = curvature3D(wp);

    vp = curv2WSGraph(xp);
    freeNull(wp.gp);
    freeNull(xp.gp);
    if (vp.gp==NULL) return vp;

    if (mode==ALL) {
        for (i=0; i<vp.xs*vp.ys*vp.zs; i++) {
            if    (vp.gp[i]==FLAT)            vp.gp[i] = 500;
            else if (vp.gp[i]==PIT)           vp.gp[i] = 1000;
            else if (vp.gp[i]==SADDLE_RIDGE)  vp.gp[i] = 1500;
            else if (vp.gp[i]==SADDLE_VALLEY) vp.gp[i] = 2000;
            else if (vp.gp[i]==NONE_SHAPE)    vp.gp[i] = 2500;
            else if (vp.gp[i]==MINIMAL)       vp.gp[i] = 3000;
            else if (vp.gp[i]==RIDGE)         vp.gp[i] = 3500;
            else if (vp.gp[i]==VALLEY)        vp.gp[i] = 4000;
            else if (vp.gp[i]==PEAK)          vp.gp[i] = 4500;
            else                              vp.gp[i] = 0;
        }
    }
    else {
        for (i=0; i<vp.xs*vp.ys*vp.zs; i++) {
            if ((vp.gp[i]&mode)!=0) vp.gp[i] = cc;
            else                    vp.gp[i] = 0;
        }
    }
    return vp;
}

Here is the call graph for this function:

WSGraph xSobel

(

WSGraph

vp

)

WSGraph xSobel(WSGraph vp)

グラフィックデータの x方向微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 93 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, JBXL_NORMAL, make_WSGraph(), WSGraph::state, Vx, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

Referenced by Nabra(), and vNabra().

{
    int  i, j, k;
    int  da, db, dc, dd, de, nr;
    WSGraph xp;

    memset(&xp, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }
    xp.state = JBXL_NORMAL;

    if (vp.zs<=0) vp.zs = 1;
    xp = make_WSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=0; k<vp.zs; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i+1, j-1, k) - Vx(vp, i-1, j-1, k);
                db = Vx(vp, i+1, j,   k) - Vx(vp, i-1, j,   k);
                dc = Vx(vp, i+1, j+1, k) - Vx(vp, i-1, j+1, k);
                if (k==0 || k==vp.zs-1) {
                    dd = de = 0;
                    nr = 8;
                }
                else {
                    dd = Vx(vp, i+1, j, k-1) - Vx(vp, i-1, j, k-1);
                    de = Vx(vp, i+1, j, k+1) - Vx(vp, i-1, j, k+1);
                    nr = 12;
                }
                Vx(xp, i, j, k) = (sWord)((da + 2*db + dc + dd + de)/nr);
            }
        }
    }

    return xp;
}

Here is the call graph for this function:

Here is the caller graph for this function:

WSGraph xxSobel

(

WSGraph

vp

)

WSGraph xxSobel(WSGraph vp)

グラフィックデータの x方向の2階微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 423 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    int  da, db, dc, dd, de;
    int  df, dg, dh, di, dj, dk, dl, dm;
    WSGraph px;

    memset(&px, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        px.state = JBXL_GRAPH_NODATA_ERROR;
        return px;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;

    if (zs<5) {
        px = make_WSGraph(xs, ys, 1);
        if (px.gp==NULL) return px;

        for (y=2; y<ys-2; y++) {
            cy = y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx-2*xs+2] - 2*vp.gp[cx-2*xs] + vp.gp[cx-2*xs-2];
                db = vp.gp[cx  -xs+2] - 2*vp.gp[cx  -xs] + vp.gp[cx  -xs-2];
                dc = vp.gp[cx     +2] - 2*vp.gp[cx]      + vp.gp[cx     -2];
                dd = vp.gp[cx  +xs+2] - 2*vp.gp[cx  +xs] + vp.gp[cx  +xs-2];
                de = vp.gp[cx+2*xs+2] - 2*vp.gp[cx+2*xs] + vp.gp[cx+2*xs-2];
                px.gp[cx] = (sWord)((da + 4*db + 6*dc + 4*dd + de)/64);
            }
        }
    }

    else {
        px = make_WSGraph(xs, ys, zs);
        if (px.gp==NULL) return px;

        for (z=2; z<zs-2; z++) {
            cz = z*ps;
            for (y=2; y<ys-2; y++) {
                cy = cz + y*xs;
                for (x=2; x<xs-2; x++) {
                    cx = cy + x;
                    da = vp.gp[cx   +2]    - 2*vp.gp[cx]       + vp.gp[cx-2];
                    db = vp.gp[cx+xs+2]    - 2*vp.gp[cx+xs]    + vp.gp[cx+xs-2];
                    dc = vp.gp[cx-xs+2]    - 2*vp.gp[cx-xs]    + vp.gp[cx-xs-2];
                    dd = vp.gp[cx+ps+2]    - 2*vp.gp[cx+ps]    + vp.gp[cx+ps-2];
                    de = vp.gp[cx-ps+2]    - 2*vp.gp[cx-ps]    + vp.gp[cx-ps-2];
                    df = vp.gp[cx+xs+ps+2] - 2*vp.gp[cx+xs+ps] + vp.gp[cx+xs+ps-2];
                    dg = vp.gp[cx+xs-ps+2] - 2*vp.gp[cx+xs-ps] + vp.gp[cx+xs-ps-2];
                    dh = vp.gp[cx-xs+ps+2] - 2*vp.gp[cx-xs+ps] + vp.gp[cx-xs+ps-2];
                    di = vp.gp[cx-xs-ps+2] - 2*vp.gp[cx-xs-ps] + vp.gp[cx-xs-ps-2];
                    dj = vp.gp[cx+2*xs+2]  - 2*vp.gp[cx+2*xs]  + vp.gp[cx+2*xs-2];
                    dk = vp.gp[cx-2*xs+2]  - 2*vp.gp[cx-2*xs]  + vp.gp[cx-2*xs-2];
                    dl = vp.gp[cx+2*ps+2]  - 2*vp.gp[cx+2*ps]  + vp.gp[cx+2*ps-2];
                    dm = vp.gp[cx-2*ps+2]  - 2*vp.gp[cx-2*ps]  + vp.gp[cx-2*ps-2];
                    px.gp[cx] = (sWord)((8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144);
                }
            }
        }
    }

    return px;
}

Here is the call graph for this function:

WSGraph ySobel

(

WSGraph

vp

)

WSGraph ySobel(WSGraph vp)

グラフィックデータの y方向微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 193 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, Vx, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

Referenced by Nabra(), and vNabra().

{
    int  i, j, k;
    int  da, db, dc, dd, de, nr;
    WSGraph xp;

    memset(&xp, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }

    if (vp.zs<=0) vp.zs = 1;
    xp = make_WSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=0; k<vp.zs; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i-1, j+1, k) - Vx(vp, i-1, j-1, k);
                db = Vx(vp, i,   j+1, k) - Vx(vp, i,   j-1, k);
                dc = Vx(vp, i+1, j+1, k) - Vx(vp, i+1, j-1, k);
                if (k==0 || k==vp.zs-1) {
                    dd = de = 0;
                    nr = 8;
                }
                else {
                    dd = Vx(vp, i, j+1, k-1) - Vx(vp, i, j-1, k-1);
                    de = Vx(vp, i, j+1, k+1) - Vx(vp, i, j-1, k+1);
                    nr = 12;
                }
                Vx(xp, i, j, k) = (sWord)((da + 2*db + dc + dd + de)/nr);
            }
        }
    }

    return xp;
}

Here is the call graph for this function:

Here is the caller graph for this function:

WSGraph yySobel

(

WSGraph

vp

)

WSGraph yySobel(WSGraph vp)

グラフィックデータの y方向の2階微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 580 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    int  da, db, dc, dd, de;
    int  df, dg, dh, di, dj, dk, dl, dm;
    WSGraph py;

    memset(&py, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        py.state = JBXL_GRAPH_NODATA_ERROR;
        return py;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;

    if (zs<5) {
        py = make_WSGraph(xs, ys, 1);
        if (py.gp==NULL) return py;

        for (y=2; y<ys-2; y++) {
            cy = y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx+2*xs-2] - 2*vp.gp[cx-2] + vp.gp[cx-2*xs-2];
                db = vp.gp[cx+2*xs-1] - 2*vp.gp[cx-1] + vp.gp[cx-2*xs-1];
                dc = vp.gp[cx+2*xs]   - 2*vp.gp[cx]   + vp.gp[cx-2*xs];
                dd = vp.gp[cx+2*xs+1] - 2*vp.gp[cx+1] + vp.gp[cx-2*xs+1];
                de = vp.gp[cx+2*xs+2] - 2*vp.gp[cx+2] + vp.gp[cx-2*xs+2];
                py.gp[cx] = (sWord)((da + 4*db + 6*dc + 4*dd + de)/64);
            }
        }
    }
    else {
        py = make_WSGraph(xs, ys, zs);
        if (py.gp==NULL) return py;

        for (z=2; z<zs-2; z++) {
            cz = z*ps;
            for (y=2; y<ys-2; y++) {
                cy = cz + y*xs;
                for (x=2; x<xs-2; x++) {
                    cx = cy + x;
                    da = vp.gp[cx+2*xs]      - 2*vp.gp[cx]      + vp.gp[cx-2*xs];
                    db = vp.gp[cx+1+2*xs]    - 2*vp.gp[cx+1]    + vp.gp[cx+1-2*xs];
                    dc = vp.gp[cx-1+2*xs]    - 2*vp.gp[cx-1]    + vp.gp[cx-1-2*xs];
                    dd = vp.gp[cx+ps+2*xs]   - 2*vp.gp[cx+ps]   + vp.gp[cx+ps-2*xs];
                    de = vp.gp[cx-ps+2*xs]   - 2*vp.gp[cx-ps]   + vp.gp[cx-ps-2*xs];
                    df = vp.gp[cx+1+ps+2*xs] - 2*vp.gp[cx+1+ps] + vp.gp[cx+1+ps-2*xs];
                    dg = vp.gp[cx+1-ps+2*xs] - 2*vp.gp[cx+1-ps] + vp.gp[cx+1-ps-2*xs];
                    dh = vp.gp[cx-1+ps+2*xs] - 2*vp.gp[cx-1+ps] + vp.gp[cx-1+ps-2*xs];
                    di = vp.gp[cx-1-ps+2*xs] - 2*vp.gp[cx-1-ps] + vp.gp[cx-1-ps-2*xs];
                    dj = vp.gp[cx+2+2*xs]    - 2*vp.gp[cx+2]    + vp.gp[cx+2-2*xs];
                    dk = vp.gp[cx-2+2*xs]    - 2*vp.gp[cx-2]    + vp.gp[cx-2-2*xs];
                    dl = vp.gp[cx+2*ps+2*xs] - 2*vp.gp[cx+2*ps] + vp.gp[cx+2*ps-2*xs];
                    dm = vp.gp[cx-2*ps+2*xs] - 2*vp.gp[cx-2*ps] + vp.gp[cx-2*ps-2*xs];
                    py.gp[cx] = (sWord)((8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144);
                }
            }
        }
    }

    return py;
}

Here is the call graph for this function:

WSGraph zSobel

(

WSGraph

vp

)

WSGraph zSobel(WSGraph vp)

グラフィックデータの z方向微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 292 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, Vx, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

Referenced by Nabra(), and vNabra().

{
    int  i, j, k;
    int  da, db, dc, dd, de;
    WSGraph xp;

    memset(&xp, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        xp.state = JBXL_GRAPH_NODATA_ERROR;
        return xp;
    }

    if (vp.zs<=1) {
        //fprintf(stderr,"ZSOBEL: no 3D data inputed.\n");
        xp.state = JBXL_GRAPH_IVDARG_ERROR;
        return xp;
    }

    xp = make_WSGraph(vp.xs, vp.ys, vp.zs);
    if (xp.gp==NULL) return xp;

    for (k=1; k<vp.zs-1; k++) {
        for (j=1; j<vp.ys-1; j++) {
            for (i=1; i<vp.xs-1; i++) {
                da = Vx(vp, i-1, j, k+1) - Vx(vp, i-1, j, k-1);
                db = Vx(vp, i+1, j, k+1) - Vx(vp, i+1, j, k-1);
                dc = Vx(vp, i,   j, k+1) - Vx(vp, i,   j, k-1);
                dd = Vx(vp, i, j-1, k+1) - Vx(vp, i, j-1, k-1);
                de = Vx(vp, i, j+1, k+1) - Vx(vp, i, j+1, k-1);
                Vx(xp, i, j, k) = (sWord)((da + db + 2*dc + dd + de)/12);
            }
        }
    }

    for (j=1; j<vp.ys-1; j++) {
        for (i=1; i<vp.xs-1; i++) {
            da = Vx(vp, i-1, j, 1) - Vx(vp, i-1, j, 0);
            db = Vx(vp, i+1, j, 1) - Vx(vp, i+1, j, 0);
            dc = Vx(vp, i,   j, 1) - Vx(vp, i,   j, 0);
            dd = Vx(vp, i, j-1, 1) - Vx(vp, i, j-1, 0);
            de = Vx(vp, i, j+1, 1) - Vx(vp, i, j+1, 0);
            Vx(xp, i, j, 0) = (sWord)((da + db + 2*dc + dd + de)/12);

            da = Vx(vp, i-1, j, vp.zs-1) - Vx(vp, i-1, j, vp.zs-2);
            db = Vx(vp, i+1, j, vp.zs-1) - Vx(vp, i+1, j, vp.zs-2);
            dc = Vx(vp, i,   j, vp.zs-1) - Vx(vp, i,   j, vp.zs-2);
            dd = Vx(vp, i, j-1, vp.zs-1) - Vx(vp, i, j-1, vp.zs-2);
            de = Vx(vp, i, j+1, vp.zs-1) - Vx(vp, i, j+1, vp.zs-2);
            Vx(xp, i, j, vp.zs-1) = (sWord)((da + db + 2*dc + dd + de)/12);
        }
    }

    return xp;
}

Here is the call graph for this function:

Here is the caller graph for this function:

WSGraph zzSobel

(

WSGraph

vp

)

WSGraph zzSobel(WSGraph vp)

グラフィックデータの z方向の2階微分(Sobel)を計算する．

Parameters:

vp

計算対象となるグラフィックデータ構造体．

Returns:

処理されたグラフィックデータ．

Definition at line 735 of file gmt.c.

References WSGraph::gp, JBXL_GRAPH_IVDARG_ERROR, JBXL_GRAPH_NODATA_ERROR, make_WSGraph(), WSGraph::state, WSGraph::xs, WSGraph::ys, and WSGraph::zs.

{
    int  x, y, z, xs, ys, zs, cx, cy, cz, ps;
    int  da, db, dc, dd, de;
    int  df, dg, dh, di, dj, dk, dl, dm;
    WSGraph pz;

    memset(&pz, 0, sizeof(WSGraph));
    if (vp.gp==NULL) {
        pz.state = JBXL_GRAPH_NODATA_ERROR;
        return pz;
    }

    if (vp.zs<5) {
        //fprintf(stderr,"ZZSOBEL: no 3D data inputed.\n");
        pz.state = JBXL_GRAPH_IVDARG_ERROR;
        return pz;
    }

    xs = vp.xs;
    ys = vp.ys;
    zs = vp.zs;
    ps = xs*ys;
    pz = make_WSGraph(xs, ys, zs);
    if (pz.gp==NULL) return pz;

    for (z=2; z<zs-2; z++) {
        cz = z*ps;
        for (y=2; y<ys-2; y++) {
            cy = cz + y*xs;
            for (x=2; x<xs-2; x++) {
                cx = cy + x;
                da = vp.gp[cx   +2*ps]   - 2*vp.gp[cx]       + vp.gp[cx   -2*ps];
                db = vp.gp[cx+1 +2*ps]   - 2*vp.gp[cx+1]     + vp.gp[cx+1 -2*ps];
                dc = vp.gp[cx-1 +2*ps]   - 2*vp.gp[cx-1]     + vp.gp[cx-1 -2*ps];
                dd = vp.gp[cx+xs+2*ps]   - 2*vp.gp[cx+xs]    + vp.gp[cx+xs-2*ps];
                de = vp.gp[cx-xs+2*ps]   - 2*vp.gp[cx-xs]    + vp.gp[cx-xs-2*ps];
                df = vp.gp[cx+1+xs+2*ps] - 2*vp.gp[cx+1+xs]  + vp.gp[cx+1+xs-2*ps];
                dg = vp.gp[cx+1-xs+2*ps] - 2*vp.gp[cx+1-xs]  + vp.gp[cx+1-xs-2*ps];
                dh = vp.gp[cx-1+xs+2*ps] - 2*vp.gp[cx-1+xs]  + vp.gp[cx-1+xs-2*ps];
                di = vp.gp[cx-1-xs+2*ps] - 2*vp.gp[cx-1-xs]  + vp.gp[cx-1-xs-2*ps];
                dj = vp.gp[cx+2   +2*ps] - 2*vp.gp[cx+2]     + vp.gp[cx+2   -2*ps];
                dk = vp.gp[cx-2   +2*ps] - 2*vp.gp[cx-2]     + vp.gp[cx-2   -2*ps];
                dl = vp.gp[cx+2*xs+2*ps] - 2*vp.gp[cx+2*xs]  + vp.gp[cx+2*xs-2*ps];
                dm = vp.gp[cx-2*xs+2*ps] - 2*vp.gp[cx-2*xs]  + vp.gp[cx-2*xs-2*ps];
                pz.gp[cx] = (sWord)((8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144);
            }
        }
    }

    cz = ps;
    for (y=2; y<ys-2; y++) {
        cy = cz + y*xs;
        for (x=2; x<xs-2; x++) {
            cx = cy + x;
            da = vp.gp[cx   +2*ps]   - 2*vp.gp[cx];
            db = vp.gp[cx+1 +2*ps]   - 2*vp.gp[cx+1];
            dc = vp.gp[cx-1 +2*ps]   - 2*vp.gp[cx-1];
            dd = vp.gp[cx+xs+2*ps]   - 2*vp.gp[cx+xs];
            de = vp.gp[cx-xs+2*ps]   - 2*vp.gp[cx-xs];
            df = vp.gp[cx+1+xs+2*ps] - 2*vp.gp[cx+1+xs];
            dg = vp.gp[cx+1-xs+2*ps] - 2*vp.gp[cx+1-xs];
            dh = vp.gp[cx-1+xs+2*ps] - 2*vp.gp[cx-1+xs];
            di = vp.gp[cx-1-xs+2*ps] - 2*vp.gp[cx-1-xs];
            dj = vp.gp[cx+2   +2*ps] - 2*vp.gp[cx+2];
            dk = vp.gp[cx-2   +2*ps] - 2*vp.gp[cx-2];
            dl = vp.gp[cx+2*xs+2*ps] - 2*vp.gp[cx+2*xs];
            dm = vp.gp[cx-2*xs+2*ps] - 2*vp.gp[cx-2*xs];
            pz.gp[cx] = (sWord)((8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144);
        }
    }

    cz = (zs-2)*ps;
    for (y=2; y<ys-2; y++) {
        cy = cz + y*xs;
        for (x=2; x<xs-2; x++) {
            cx = cy + x;
            da = - 2*vp.gp[cx]      + vp.gp[cx   -2*ps];
            db = - 2*vp.gp[cx+1]    + vp.gp[cx+1 -2*ps];
            dc = - 2*vp.gp[cx-1]    + vp.gp[cx-1 -2*ps];
            dd = - 2*vp.gp[cx+xs]   + vp.gp[cx+xs-2*ps];
            de = - 2*vp.gp[cx-xs]   + vp.gp[cx-xs-2*ps];
            df = - 2*vp.gp[cx+1+xs] + vp.gp[cx+1+xs-2*ps];
            dg = - 2*vp.gp[cx+1-xs] + vp.gp[cx+1-xs-2*ps];
            dh = - 2*vp.gp[cx-1+xs] + vp.gp[cx-1+xs-2*ps];
            di = - 2*vp.gp[cx-1-xs] + vp.gp[cx-1-xs-2*ps];
            dj = - 2*vp.gp[cx+2]    + vp.gp[cx+2   -2*ps];
            dk = - 2*vp.gp[cx-2]    + vp.gp[cx-2   -2*ps];
            dl = - 2*vp.gp[cx+2*xs] + vp.gp[cx+2*xs-2*ps];
            dm = - 2*vp.gp[cx-2*xs] + vp.gp[cx-2*xs-2*ps];
            pz.gp[cx] = (sWord)((8*da+4*(db+dc+dd+de)+2*(df+dg+dh+di)+dj+dk+dl+dm)/144);
        }
    }

    return pz;
}

Here is the call graph for this function:
