FacetTriData Class Reference

#include <FacetBaseData.h>

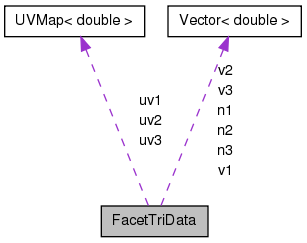

Collaboration diagram for FacetTriData:

Public Member Functions
	FacetTriData (int n=0)
virtual	~FacetTriData (void)
void	init (void)
void	execScale (double x, double y, double z)
void	execShift (double x, double y, double z)
void	execRotate (Quaternion< double > q)
void	ComputeTriNormal ()
Public Attributes
int	facetNum
Vector< double >	v1
Vector< double >	v2
Vector< double >	v3
Vector< double >	n1
Vector< double >	n2
Vector< double >	n3
UVMap< double >	uv1
UVMap< double >	uv2
UVMap< double >	uv3

Detailed Description

Definition at line 74 of file FacetBaseData.h.

Constructor & Destructor Documentation

FacetTriData ( int n = 0 ) [inline]

Definition at line 84 of file FacetBaseData.h.

References FacetTriData::facetNum, and FacetTriData::init().

00084 { init(); facetNum = n;}

Here is the call graph for this function:

virtual ~FacetTriData ( void ) [inline, virtual]

Definition at line 85 of file FacetBaseData.h.

00085 {}

Member Function Documentation

void ComputeTriNormal ( ) [inline]

Definition at line 93 of file FacetBaseData.h.

References FacetTriData::n1, FacetTriData::n2, FacetTriData::n3, jbxl::NewellMethod(), Vector< T >::normalize(), FacetTriData::v1, FacetTriData::v2, and FacetTriData::v3.

00093 { Vector<double> nv = NewellMethod(v1, v2, v3); nv.normalize(); n1 = n2 = n3 = nv;}

Here is the call graph for this function:

void execRotate ( Quaternion< double > q )

Definition at line 65 of file FacetBaseData.cpp.

References Quaternion< T >::execRotation(), FacetTriData::n1, FacetTriData::n2, FacetTriData::n3, FacetTriData::v1, FacetTriData::v2, and FacetTriData::v3.

00066 {
00067     v1 = q.execRotation(v1);
00068     v2 = q.execRotation(v2);
00069     v3 = q.execRotation(v3);
00070     n1 = q.execRotation(n1);
00071     n2 = q.execRotation(n2);
00072     n3 = q.execRotation(n3);
00073 }

Here is the call graph for this function:

void execScale	(	double	x,
		double	y,
		double	z
	)

Definition at line 50 of file FacetBaseData.cpp.

References FacetTriData::v1, FacetTriData::v2, FacetTriData::v3, Vector< T >::x, Vector< T >::y, and Vector< T >::z.

00051 {
00052     v1.x *= x;
00053     v1.y *= y;
00054     v1.z *= z;
00055     v2.x *= x;
00056     v2.y *= y;
00057     v2.z *= z;
00058     v3.x *= x;
00059     v3.y *= y;
00060     v3.z *= z;
00061 }

void execShift	(	double	x,
		double	y,
		double	z
	)			`[inline]`

Definition at line 91 of file FacetBaseData.h.

References FacetTriData::v1, FacetTriData::v2, and FacetTriData::v3.

00091 { Vector<double> m(x, y, z); v1 = v1 + m; v2 = v2 + m; v3 = v3 + m;}

void init ( void )

Definition at line 33 of file FacetBaseData.cpp.

References FacetTriData::facetNum, UVMap< T >::init(), Vector< T >::init(), FacetTriData::n1, FacetTriData::n2, FacetTriData::n3, FacetTriData::uv1, FacetTriData::uv2, FacetTriData::uv3, FacetTriData::v1, FacetTriData::v2, and FacetTriData::v3.

Referenced by FacetTriData::FacetTriData().

00034 {
00035     facetNum = 0;
00036
00037     v1.init();
00038     v2.init();
00039     v3.init();
00040     n1.init();
00041     n2.init();
00042     n3.init();
00043     uv1.init();
00044     uv2.init();
00045     uv3.init();
00046 }
