CDxSRenderView Class Reference

#include <DxSRenderView.h>

Inheritance diagram for CDxSRenderView:

[legend]

Collaboration diagram for CDxSRenderView:

[legend]

List of all members.

Public Member Functions
virtual void	SetState ()
virtual BOOL	PrepareVB ()
virtual void	ExecRender ()
virtual void	ClearObject ()
virtual void	InitObject ()
virtual void	ExRotationAngle ()
virtual void	ExMouseWheel ()
int	GetValidVoxelNum ()
virtual void	OnInitialUpdate ()
Public Attributes
RBound< int >	Rbound
CProgressBarDLG *	pCounter
int	xsize
int	ysize
int	zsize
int	msize
int	datano
BOOL	volumeColor
Protected Member Functions
	CDxSRenderView ()
virtual void	OnDraw (CDC *pDC)
virtual	~CDxSRenderView ()
virtual void	AssertValid () const
virtual void	Dump (CDumpContext &dc) const

---

Detailed Description

Definition at line 51 of file DxSRenderView.h.

---

Constructor & Destructor Documentation

CDxSRenderView

(

)

[protected]

CDxSRenderView クラス （サーフェイスレンダリング）

CDxVTXBaseViewクラスからの継承クラス 対応する Document の msGraph (pDoc->msGraph) からデータを受け取り（cmnHeadではないので注意）， （簡易）サーフェイスレンダリングを行い，DirectXの機能を使って 3D表示する．

3D表示する場合の色は，ボクセルの輝度値(16bit)に対して，ARGB16(各4bit) と解釈する．輝度値(16bit)の設定には uWord ARGB2Word(uWord a, uWord r, uWord g, uWord b) (要 include "Gdata.h") uWord RGBA2Word(uWord r, uWord g, uWord b, uWord a) (要 include "Gdata.h") uWord RGB2Word (uWord r, uWord g, uWord b) (要 include "Gdata.h") を使用すると良い．因みに逆の関数は D3DCOLOR Dx9Word2RGBA(uWord pp) (要 include "Dx9.h") D3DCOLOR Dx9Word2ARGB(uWord pp) (要 include "Dx9.h") D3DCOLOR Dx9Word2RGB (uWord pp) (要 include "Dx9.h")

Definition at line 46 of file DxSRenderView.cpp.

{
    cnstXYRate = true;
//  rotation = true;
    pCounter  = NULL;
    volumeColor = TRUE;
}

~CDxSRenderView

(

)

[protected, virtual]

Definition at line 56 of file DxSRenderView.cpp.

{
}

---

Member Function Documentation

void AssertValid

(

)

const [protected, virtual]

Reimplemented from CExView.

Definition at line 88 of file DxSRenderView.cpp.

{
    CDxVTXBaseView::AssertValid();
}

void ClearObject

(

void

)

[virtual]

Reimplemented from CDxBaseView.

Definition at line 484 of file DxSRenderView.cpp.

References CExView::hasViewData.

{
    hasViewData = FALSE;
//  TimerStop();
}

void Dump

(

CDumpContext &

dc

)

const [protected, virtual]

Reimplemented from CExView.

Definition at line 94 of file DxSRenderView.cpp.

{
    CDxVTXBaseView::Dump(dc);
}

void ExecRender

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 258 of file DxSRenderView.cpp.

References CDxBaseView::d3dParam, CDxSRenderView::datano, jbxwl::Dx9DrawPrimitive(), IDS_STR_FAIL_RESTR_DX9DEV, CDxBaseView::lpD3DDevice, CExView::pFrame, jbxwl::ResetDx9Device(), and CDxVTXBaseView::vb.

{
    HRESULT hr;

    // 画面のクリア
    hr = lpD3DDevice->Clear(0, NULL, D3DCLEAR_TARGET|D3DCLEAR_ZBUFFER, D3DCOLOR_XRGB(0,0,96), 1.0f, 0);
    if (FAILED(hr)) { DEBUG_ERROR("CDxSRenderView::ExecRender(): ERROR: 画面クリアに失敗しました\n"); return;}

    // シーンの描画開始
    hr = lpD3DDevice->BeginScene();
    if (FAILED(hr)) { DEBUG_ERROR("CDxSRenderView::ExecRender(): ERROR: シーンの開始に失敗しました\n"); return;}

    hr = lpD3DDevice->SetStreamSource(0, vb, 0, sizeof(SVERTEXV));
    if (FAILED(hr)) { DEBUG_ERROR("CDxSRenderView::ExecRender(): ERROR: ストリームの設定に失敗しました\n"); lpD3DDevice->EndScene(); return;}

    hr = Dx9DrawPrimitive(lpD3DDevice, D3DPT_POINTLIST, 1, datano);
    if (FAILED(hr)) { DEBUG_ERROR("CDxSRenderView::ExecRender(): ERROR: プリミティブ描画に失敗しました\n"); lpD3DDevice->EndScene(); return;}

    hr = lpD3DDevice->EndScene();
    if (FAILED(hr)) { DEBUG_ERROR("CDxSRenderView::ExecRender(): ERROR: シーンの終了に失敗しました\n"); return;}
    // シーンの描画終了

    // 画面表示
    hr = lpD3DDevice->Present(NULL, NULL, NULL, NULL);
    if (FAILED(hr)) {   // デバイスチェック
//      DEBUG_INFO("CDxSRenderView:ExecRender(): Resetting Device ....\n");
        hr = ResetDx9Device(lpD3DDevice, &d3dParam, this);
        if (FAILED(hr)) {
            CString mesg;
            mesg.LoadString(IDS_STR_FAIL_RESTR_DX9DEV);
            MessageBox(_T("CDxSRenderView::ExecRender():\n\n") + mesg);
            pFrame->SendMessage(WM_CLOSE);
            //GetParentFrame()->DestroyWindow();
        }
    }
}

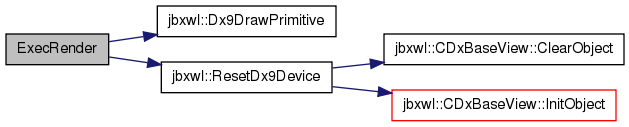

Here is the call graph for this function:

void ExMouseWheel

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 244 of file DxSRenderView.cpp.

References CDxBaseView::lpD3DDevice, CDxVTXBaseView::matView, CDxVTXBaseView::mWheelAc, and CExView::sizeFac.

Referenced by CDxSRenderView::SetState().

{
    if (Xabs(mWheelAc)<1.0) mWheelAc = Sign(mWheelAc);

    // カメラの制御:  カメラの位置，物体の位置，カメラの上方向の傾き()
    D3DXMatrixLookAtLH(&matView, &D3DXVECTOR3(0.0f, (float)mWheelAc, 0.0f), &D3DXVECTOR3(0,0,0), &D3DXVECTOR3(0,0,1));
    lpD3DDevice->SetTransform(D3DTS_VIEW, &matView);

    double pointsize = sizeFac/Xabs(mWheelAc)*1000.0;
    lpD3DDevice->SetRenderState(D3DRS_POINTSIZE, *((DWORD*)&pointsize));
}

Here is the caller graph for this function:

void ExRotationAngle

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 475 of file DxSRenderView.cpp.

References CDxVTXBaseView::angleX, CDxVTXBaseView::angleY, and CDxVTXBaseView::angleZ.

{
    angleZ = -angleX;
    angleX = -angleY;
    angleY =  0.0;
}

int GetValidVoxelNum

(

)

Definition at line 501 of file DxSRenderView.cpp.

References CProgressBarDLG::isCanceled(), CExView::msGraph, CDxSRenderView::pCounter, and CProgressBarDLG::SetPos().

Referenced by CDxSRenderView::PrepareVB().

{
    int  i,  j,  k;
    int ii, jj, kk;
    int is, js, ks;
    int ie, je, ke;
    int cnt = 0;

    for (k=0; k<msGraph.zs; k++) {
        for (j=0; j<msGraph.ys; j++) {
            for (i=0; i<msGraph.xs; i++) {
                bool chk = false;
                if (msGraph.point(i, j, k)!=0) {
                    is = js = ks = -1;
                    ie = je = ke =  1;

                    if (i==0 || i==msGraph.xs-1 ||
                        j==0 || j==msGraph.ys-1 ||
                        k==0 || k==msGraph.zs-1    ) chk = true;
                    else {
                        for (kk=ks; kk<=ke; kk++)
                        for (jj=js; jj<=je; jj++)
                        for (ii=is; ii<=ie; ii++) {
                            if (msGraph.point(i+ii, j+jj, k+kk)==0) chk = true;
                        }
                    }
                }
                if (chk) cnt++;
            }
        }
        if (pCounter!=NULL) {
            pCounter->SetPos((k+1)*msGraph.xs*msGraph.ys);
            if (pCounter->isCanceled()) return -1;
        }
    }
    return cnt;
}

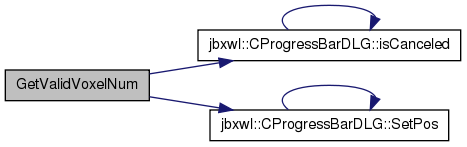

Here is the call graph for this function:

Here is the caller graph for this function:

void InitObject

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 492 of file DxSRenderView.cpp.

References CExView::hasViewData, and CDxSRenderView::SetState().

{
    SetState();
//  TimerStart();
    hasViewData = TRUE;
}

Here is the call graph for this function:

virtual void OnDraw

(

CDC *

pDC

)

[inline, protected, virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 93 of file DxSRenderView.h.

{}

void OnInitialUpdate

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 106 of file DxSRenderView.cpp.

References CDxVTXBaseView::center, CExFrame::doneErrorMessage, jbxwl::Dx9ReverseZMode, CExView::hasViewData, IDS_STR_FAIL_GET_DX9DEV, CDxBaseView::InitDevice(), MSG_DEFAULT_WINDOW_SIZE, CExDocument::msGraph, CExView::msGraph, CDxSRenderView::msize, CExView::origXSize, CExView::origYSize, CExView::pDoc, CExView::pFrame, CDxSRenderView::PrepareVB(), CExDocument::preTitle, CExDocument::pstTitle, CDxSRenderView::Rbound, CDxVTXBaseView::reverseZ, CDxSRenderView::SetState(), CExView::SetTitle(), CExView::SetWindowSize(), CExView::sizeFac, CExView::sizeXYRate, CExDocument::Title, CExView::Title, CDxSRenderView::xsize, CDxSRenderView::ysize, and CDxSRenderView::zsize.

{
//  CDxVTXBaseView::OnInitialUpdate();

    msGraph = pDoc->msGraph;
    if (msGraph.isNull()) return;

    double rzxy = msGraph.RZxy;
    if (rzxy==0.0) rzxy = 1.0;

    Rbound.xmax = msGraph.xs;
    Rbound.ymax = msGraph.ys;
    Rbound.zmax = (int)(msGraph.zs/rzxy+0.5);
    Rbound.xmin = Rbound.ymin = Rbound.zmin = 0;

    center = D3DXVECTOR3((Rbound.xmax + Rbound.xmin)/2.f,
                         (Rbound.ymax + Rbound.ymin)/2.f,
                         (Rbound.zmax + Rbound.zmin)/2.f);
    xsize = Rbound.xmax - Rbound.xmin + 1;
    ysize = Rbound.ymax - Rbound.ymin + 1;
    zsize = Rbound.zmax - Rbound.zmin + 1;
    msize = Max(xsize, ysize);
    msize = Max(msize, zsize);

    sizeFac  = Min(sizeFac, 1.0/msize);

    int dxsize = msize;
    if (dxsize<MSG_DEFAULT_WINDOW_SIZE) dxsize = MSG_DEFAULT_WINDOW_SIZE;
    if (Dx9ReverseZMode) reverseZ = true;
    else                 reverseZ = false;

    BOOL rslt = InitDevice(dxsize, dxsize);
    if (!rslt) {
        CString mesg;
        mesg.LoadString(IDS_STR_FAIL_GET_DX9DEV);
        MessageBox(_T("CDxSRenderView::OnInitialUpdate():\n\n") + mesg);
        pFrame->doneErrorMessage = TRUE;
        return;
    }

    if (!PrepareVB()) return;
    SetState();

    origXSize  = MSG_DEFAULT_WINDOW_SIZE;
    origYSize  = MSG_DEFAULT_WINDOW_SIZE;
    sizeXYRate = origYSize/(double)origXSize;

    //DEBUG_INFO("CDxSRenderView::OnInitialUpdate():\n");
    SetWindowSize(MSG_DEFAULT_WINDOW_SIZE, MSG_DEFAULT_WINDOW_SIZE);
    hasViewData = TRUE;

    Title = pDoc->preTitle + pDoc->Title + pDoc->pstTitle;
    this->SetTitle(Title);

    return;
}

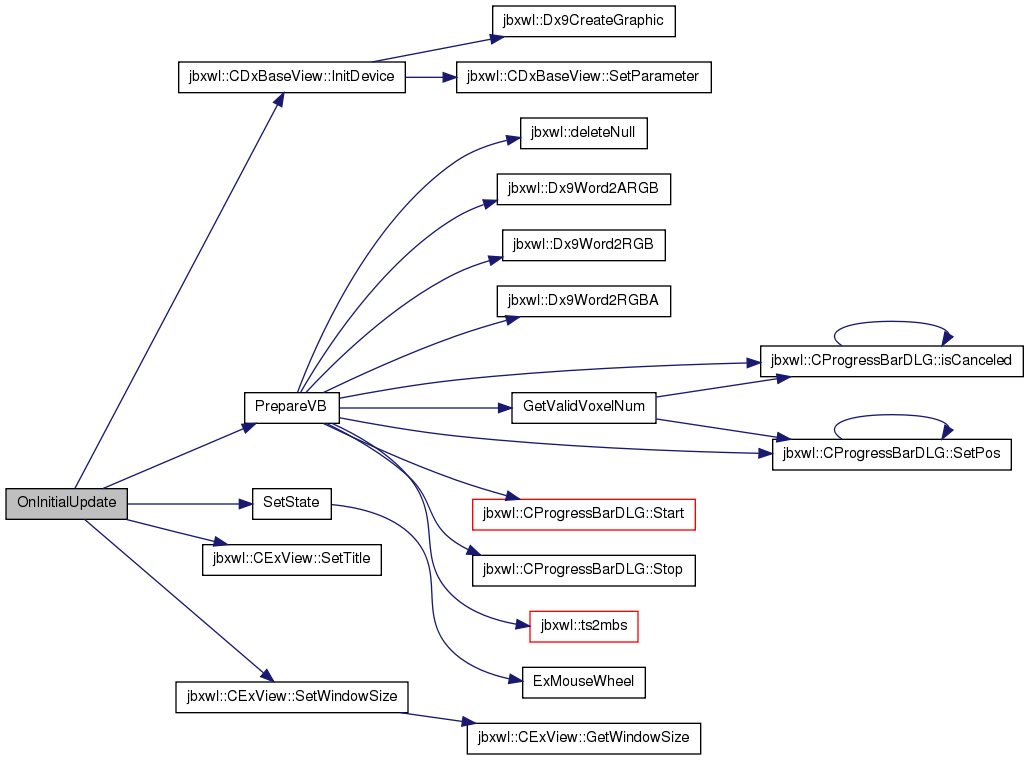

Here is the call graph for this function:

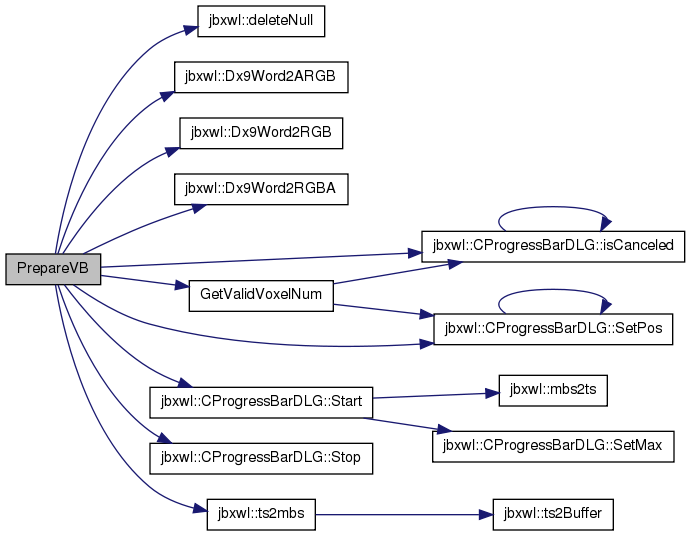

BOOL PrepareVB

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 298 of file DxSRenderView.cpp.

References CExFrame::cancelOperation, CDxSRenderView::datano, jbxwl::deleteNull(), CExFrame::doneErrorMessage, jbxwl::Dx9Word2ARGB(), jbxwl::Dx9Word2RGB(), jbxwl::Dx9Word2RGBA(), DXRELEASE, FVF_SVERTEXV, CDxSRenderView::GetValidVoxelNum(), IDD_PROGBAR, IDS_STR_CANCEL, IDS_STR_CANCEL_VERTEX_BUF_SET1, IDS_STR_CANCEL_VERTEX_BUF_SET2, IDS_STR_ERR_VERTEX_NUM, IDS_STR_ERROR, IDS_STR_FAIL_GET_VERTEX_BUF, IDS_STR_INFO, IDS_STR_INFO_VERTEX_ZERO, IDS_STR_PROC_VERTEX_BUF, CProgressBarDLG::isCanceled(), CDxBaseView::lpD3DDevice, CExView::msGraph, CDxSRenderView::pCounter, CExView::pFrame, CDxVTXBaseView::reverseZ, CProgressBarDLG::SetPos(), CExView::sizeFac, CProgressBarDLG::Start(), CProgressBarDLG::Stop(), jbxwl::ts2mbs(), CDxVTXBaseView::vb, and CDxSRenderView::volumeColor.

Referenced by CDxSRenderView::OnInitialUpdate().

{
    int  i,  j,  k;
    int  x,  y,  z;
    int ii, jj, kk;
    int is, js, ks;
    int ie, je, ke;
    double rzxy;

    // 新しいカウンタ
    pCounter = new CProgressBarDLG(IDD_PROGBAR, NULL, TRUE);
    if (pCounter!=NULL) {
        CString mesg;
        mesg.LoadString(IDS_STR_PROC_VERTEX_BUF);
        char* mbstr = ts2mbs(mesg);
        pCounter->Start(msGraph.xs*msGraph.ys*msGraph.zs*2, mbstr);
        ::free(mbstr);
    }

    datano = GetValidVoxelNum();
    if (datano<=0) {
        if (pCounter!=NULL) {
            pCounter->Stop();
            deleteNull(pCounter);
            pFrame->cancelOperation  = TRUE;
            pFrame->doneErrorMessage = TRUE;
        }
        CString mesg, noti;
        if (datano==-1) {
            mesg.LoadString(IDS_STR_CANCEL_VERTEX_BUF_SET1);
            noti.LoadString(IDS_STR_CANCEL);
            MessageBox(_T("CDxSRenderView::PrepareVB():\n\n") + mesg, noti);
        }
        else if (datano==0) {
            mesg.LoadString(IDS_STR_INFO_VERTEX_ZERO);
            noti.LoadString(IDS_STR_INFO);
            MessageBox(_T("CDxSRenderView::PrepareVB():\n\n") + mesg, noti);
        }
        else {
            mesg.LoadString(IDS_STR_ERR_VERTEX_NUM);
            noti.LoadString(IDS_STR_ERROR);
            MessageBox(_T("CDxSRenderView::PrepareVB():\n\n") + mesg, noti);
        }
        return FALSE;
    }

    lpD3DDevice->CreateVertexBuffer(sizeof(SVERTEXV)*datano, 0, FVF_SVERTEXV, D3DPOOL_MANAGED, &vb, NULL);
    if (vb==NULL) {
        if (pCounter!=NULL) {
            pCounter->Stop();
            deleteNull(pCounter);
        }
        CString mesg, noti;
        mesg.LoadString(IDS_STR_FAIL_GET_VERTEX_BUF);
        noti.LoadString(IDS_STR_ERROR);
        MessageBox(_T("CDxSRenderView::PrepareVB():\n\n") + mesg, noti);
        return FALSE;
    }

    SVERTEXV *v;
    vb->Lock(0, 0, (void **)&v, 0);

    rzxy = msGraph.RZxy;
    if (rzxy==0.0) rzxy = 1.0;

    int cnt= 0;
    for (k=0; k<msGraph.zs; k++) {
        for (j=0; j<msGraph.ys; j++) {
            for (i=0; i<msGraph.xs; i++) {
                x = y = z = 0;
                bool chk = false;
                if (msGraph.point(i, j, k)!=0) {
                    is = js = ks = -1;
                    ie = je = ke =  1;

                    // 境界
                    if (i==0)            { is = 0; x = -10; chk = true;}    // -9-1
                    if (i==msGraph.xs-1) { ie = 0; x =  10; chk = true;}    //  9+1
                    if (j==0)            { js = 0; y = -10; chk = true;}
                    if (j==msGraph.ys-1) { je = 0; y =  10; chk = true;}
                    if (k==0)            { ks = 0; z = -10; chk = true;}
                    if (k==msGraph.zs-1) { ke = 0; z =  10; chk = true; if (msGraph.zs==1) z = -10;}

                    // サーフェイスの判定
                    for (kk=ks; kk<=ke; kk++)
                    for (jj=js; jj<=je; jj++)
                    for (ii=is; ii<=ie; ii++) {
                        if (msGraph.point(i+ii, j+jj, k+kk)==0) {
                            x   = x  + ii;
                            y   = y  + jj;
                            z   = z  + kk;
                            chk = true;
                        }
                    }

                    // サーフェイス
                    if (chk) {
                        //
                        v[cnt].ps =  3.5f;
                        v[cnt].x  =  i*(float)sizeFac;
                        v[cnt].y  =  j*(float)sizeFac;

                        if (reverseZ) v[cnt].z  = -(msGraph.zs-1-k)*(float)(sizeFac/rzxy);   // Z軸の反転
                        else          v[cnt].z  = -k*(float)(sizeFac/rzxy);

                        int n2 = x*x + y*y + z*z;
                        if (n2!=0) {
                            float nn = (float)sqrt((double)n2);

                            v[cnt].nx = x/nn;
                            v[cnt].ny = y/nn;

                            if (reverseZ) v[cnt].nz =  z/nn;    // Z軸の反転
                            else          v[cnt].nz = -z/nn;
                        }
                        //
                        else {
                            v[cnt].nx = -1.0f;
                            v[cnt].ny =  1.0f;
                            v[cnt].nz =  1.0f;
                        }

                        if (volumeColor) {
                            if (msGraph.color == GRAPH_COLOR_R4G4B4A4 || msGraph.color == GRAPH_COLOR_RGBA16) {
                                v[cnt].color = Dx9Word2RGBA((uWord)msGraph.point(i, j, k));
                            }
                            else if (msGraph.color == GRAPH_COLOR_A4R4G4B4 || msGraph.color == GRAPH_COLOR_ARGB16) {
                                v[cnt].color = Dx9Word2ARGB((uWord)msGraph.point(i, j, k));
                            }
                            else {
                                v[cnt].color = Dx9Word2RGB((uWord)msGraph.point(i, j, k));
                            }
                        }
                        else {
                            v[cnt].color = D3DCOLOR_RGBA(192, 192, 192, 192);
                        }
                        cnt++;
                    }
                }
            }
        }

        // カウンタ
        if (pCounter!=NULL) {
            pCounter->SetPos(msGraph.xs*msGraph.ys*msGraph.zs + (k+1)*msGraph.xs*msGraph.ys);
            if (pCounter->isCanceled()) {
                pCounter->Stop();
                deleteNull(pCounter);
                vb->Unlock();
                DXRELEASE(vb);

                CString mesg, noti;
                mesg.LoadString(IDS_STR_CANCEL_VERTEX_BUF_SET2);
                mesg.LoadString(IDS_STR_CANCEL);
                MessageBox(_T("CDxSRenderView::PrepareVB():\n\n") + mesg, noti);

                pFrame->cancelOperation  = TRUE;
                pFrame->doneErrorMessage = TRUE;
                return FALSE;
            }
        }
    }

    datano = cnt;
    vb->Unlock();

    if (pCounter!=NULL) {
        pCounter->Stop();
        deleteNull(pCounter);
    }
    return TRUE;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void SetState

(

void

)

[virtual]

Reimplemented from CDxVTXBaseView.

Definition at line 165 of file DxSRenderView.cpp.

References CDxVTXBaseView::center, CDxSRenderView::ExMouseWheel(), FVF_SVERTEXV, CDxBaseView::lpD3DDevice, CDxVTXBaseView::matProj, CDxVTXBaseView::matTrans, CDxSRenderView::msize, CDxVTXBaseView::mWheelAc, and CExView::sizeFac.

Referenced by CDxSRenderView::InitObject(), and CDxSRenderView::OnInitialUpdate().

{
    D3DLIGHT9    m_light;
    D3DXVECTOR3  mVecDir;
//  D3DMATERIAL9 m_material;
    D3DCAPS9 caps;

    lpD3DDevice->GetDeviceCaps(&caps);
//  if (!(caps.FVFCaps & D3DFVFCAPS_PSIZE)) {
//      MessageBox("CDxSRenderView::SetState\n\nD3DFVF_PSIZE をサポートしていない");
//      double pointsize = 3.0;
//      double pointsize = 4.0;
//      lpD3DDevice->SetRenderState(D3DRS_POINTSIZE, *((DWORD*)&pointsize));
//  }

    // Z バッファ有効化
    lpD3DDevice->SetRenderState(D3DRS_ZENABLE, TRUE);

    // アルファブレンディング無効化
    lpD3DDevice->SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);

    // ポリゴンの両面を描画
    lpD3DDevice->SetRenderState(D3DRS_CULLMODE, D3DCULL_NONE);

    // フィルタ設定
    lpD3DDevice->SetSamplerState(0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR);

    // レンダリング時の色の計算方法の設定
    lpD3DDevice->SetTextureStageState(0, D3DTSS_COLOROP, D3DTOP_MODULATE);

    // ライト
    lpD3DDevice->SetRenderState(D3DRS_LIGHTING, TRUE);
    ZeroMemory(&m_light, sizeof(D3DLIGHT9));
    m_light.Type = D3DLIGHT_DIRECTIONAL;
    m_light.Diffuse.r = 1.0f;
    m_light.Diffuse.g = 1.0f;
    m_light.Diffuse.b = 1.0f;

    // ライト0 の方向
//  mVecDir = D3DXVECTOR3(1.0f, -1.0f, -2.0f);
    mVecDir = D3DXVECTOR3(1.0f, -2.0f, -1.0f);
//  mVecDir = D3DXVECTOR3(1.0f,  2.0f, 1.0f);
    D3DXVec3Normalize((D3DXVECTOR3*)&m_light.Direction, &mVecDir);
    lpD3DDevice->SetLight(0, &m_light);
    lpD3DDevice->LightEnable(0, TRUE);

    // ライト1 の方向
//  mVecDir = D3DXVECTOR3(1.0, 1.0, 1.0);
//  D3DXVec3Normalize((D3DXVECTOR3*)&m_light.Direction, &mVecDir);
//  lpD3DDevice->SetLight(1, &m_light);
//  lpD3DDevice->LightEnable(1, TRUE);
//
    // ライト2 の方向
//  mVecDir = D3DXVECTOR3(-1.0, 1.0, -1.0);
//  D3DXVec3Normalize((D3DXVECTOR3*)&m_light.Direction, &mVecDir);
//  lpD3DDevice->SetLight(2, &m_light);
//  lpD3DDevice->LightEnable(2, TRUE);

    // プロジェクション行列を設定: 視界 60度，近くの限界 0.1，遠くの限界 10*msize*sizeFac
    //D3DXMatrixPerspectiveFovLH(&matProj, (float)(60.0*PI/180.0), 1.0f, 0.1f, (float)(10.0*msize*sizeFac));
    D3DXMatrixPerspectiveFovLH(&matProj, (float)(PI/3.0), 1.0f, 0.1f, (float)(10.0*msize*sizeFac));
    lpD3DDevice->SetTransform(D3DTS_PROJECTION, &matProj);

    // カメラの制御:  カメラの位置，物体の位置，カメラの上方向の傾き()
//  D3DXMatrixLookAtLH(&matView, &D3DXVECTOR3(0,0,1.5f*msize*sizeFac), &D3DXVECTOR3(0,0,0), &D3DXVECTOR3(0,1,0));
//  D3DXMatrixLookAtLH(&matView, &D3DXVECTOR3(0,-1.5f*msize*sizeFac,0), &D3DXVECTOR3(0,0,0), &D3DXVECTOR3(0,0,-1));
//  lpD3DDevice->SetTransform(D3DTS_VIEW, &matView);
    if (mWheelAc==0.0) mWheelAc = 1.5*msize*sizeFac;
    ExMouseWheel();

    // 頂点フォーマット設定
    lpD3DDevice->SetFVF(FVF_SVERTEXV);

    D3DXMatrixTranslation(&matTrans, -(float)(center.x*sizeFac), -(float)(center.y*sizeFac), (float)(center.z*sizeFac));
    lpD3DDevice->SetTransform(D3DTS_WORLD, &matTrans);
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

Member Data Documentation

int datano

Definition at line 67 of file DxSRenderView.h.

Referenced by CDxSRenderView::ExecRender(), and CDxSRenderView::PrepareVB().

int msize

Definition at line 65 of file DxSRenderView.h.

Referenced by CDxSRenderView::OnInitialUpdate(), and CDxSRenderView::SetState().

CProgressBarDLG* pCounter

Definition at line 60 of file DxSRenderView.h.

Referenced by CDxSRenderView::GetValidVoxelNum(), and CDxSRenderView::PrepareVB().

RBound<int> Rbound

Definition at line 59 of file DxSRenderView.h.

Referenced by CDxSRenderView::OnInitialUpdate().

BOOL volumeColor

Definition at line 69 of file DxSRenderView.h.

Referenced by CDxSRenderView::PrepareVB().

int xsize

Reimplemented from CExView.

Definition at line 62 of file DxSRenderView.h.

Referenced by CDxSRenderView::OnInitialUpdate().

int ysize

Reimplemented from CExView.

Definition at line 63 of file DxSRenderView.h.

Referenced by CDxSRenderView::OnInitialUpdate().

int zsize

Reimplemented from CExView.

Definition at line 64 of file DxSRenderView.h.

Referenced by CDxSRenderView::OnInitialUpdate().

---

The documentation for this class was generated from the following files:

• MFCLib/DxSRenderView.h
• MFCLib/DxSRenderView.cpp
